LUNA
LUNA 109
LUNA 110
109 0 100, 109 0 200
110 0 100, 110 0 200
Assembly and
operating instructions
Twilight Switch
D GB
F
I
E
P NL
PL
Test
2
2000
Lux
2
0,5mm -
2
2,5mm
2300 W
16A-10AX 250V~
1
2
1
2
3
*

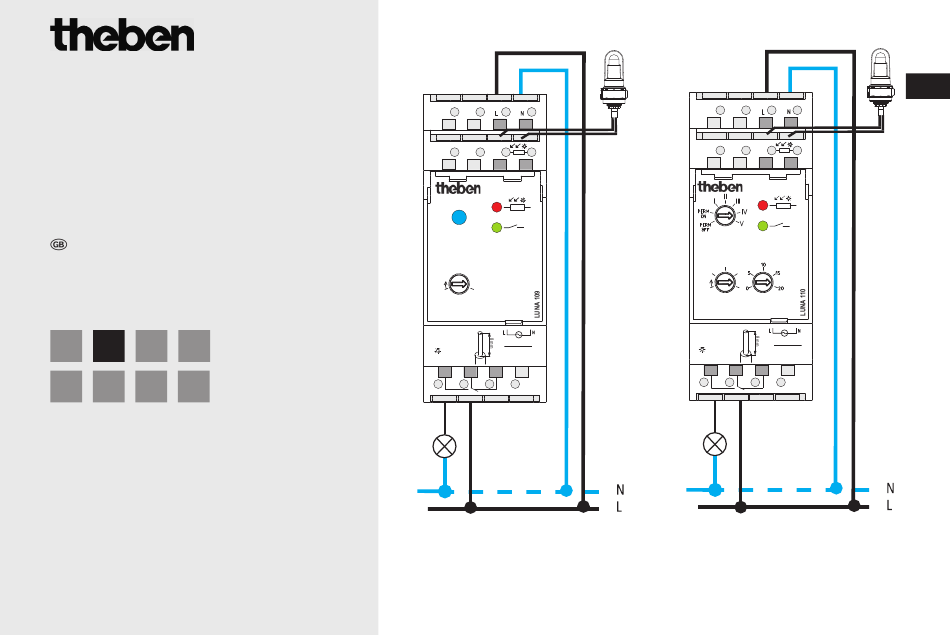

Current connection required for smooth zerocrossing switch operation
(see connection diagram) only LUNA 110).
220-240V~
50-60Hz
–30 T
3
LUNA 109
310 317 02
I : 2 - 35 Lux
IV : 1 - 5 klx
II : 35 - 200 Lux
V : 5 - 50 klx
III : 200 - 1000 Lux
min
max
Lux
min
2
0,5mm -
2
2,5mm
220-240V~
50-60Hz
3600 W
16A-16AX
250V~
–30 T
1
2
3
LUNA 110
GB
*
Advertisement
Table of Contents
Related Manuals for Theben LUNA Series
Summary of Contents for Theben LUNA Series
- Page 1 310 317 02 LUNA LUNA 109 LUNA 110 109 0 100, 109 0 200 110 0 100, 110 0 200 Test Assembly and I : 2 - 35 Lux IV : 1 - 5 klx II : 35 - 200 Lux V : 5 - 50 klx III : 200 - 1000 Lux operating instructions...
-
Page 2: Table Of Contents
Basic advice Connection/assembly Connection/assembly of a light sensor Display and control elements Initial start-up Technical data Serviceadresse Theben AG Hohenbergstr. 32 72401 Haigerloch DEUTSCHLAND Fon +49 (0) 74 74/6 92-0 Fax +49 (0) 74 74/6 92-150 Hotline Fon +49 (0) 74 74/6 92-369 Fax +49 (0) 74 74/6 92-207 hotline@theben.de... -
Page 3: Basic Advice
Basic advice WARNUNG Danger of death through electric shock or fire! Assembly may only be carried out by qualified electricians! • The device corresponds to EN 60669-2-1; it is designed for installation on DIN top hat rails (in accordance with EN 50022) Designated use •... -
Page 4: Connection/Assembly
Connection/assembly WARNUNG Danger of death through electric shock! Assembly may only be carried out by qualified electricians! Disconnect power supply! Ensure it is not turned on again! Cable 45° Check power is off! Earth and short-out! Spring screwless Cover or shield any adjacent live parts. terminal Connect cable Spring... -
Page 5: Connection/Assembly Of A Light Sensor
Connection/Assembly of a light sensor Note the length of the connecting cable: max. 100 m (2 x 1,5 mm ), max. 50 m (2 x 0,75 mm Avoid running the sensor line parallel to conductors. Surface-mounted light sensor: 0,5–2,5 mm , strip the wire to 10 mm (max. -
Page 6: Display And Control Elements
Display and control elements LUNA 109 Potentiometer for setting the brightness: 2-2000 lx Key Test for checking the installation (independent of brightness) Immediate display of the switched condition by means Test of a red LED Display of channel condition by means of a green LED 2000 (relay) LUNA 110... -
Page 7: Initial Start-Up
Initial start-up The twilight switch with external light sensor is used for controlling the light facilities of streets, stairways, ent- rances etc. I : 2 - 35 Lux IV : 1 - 5 klx Set the desired range I-V on the potentiometer II : 35 - 200 Lux V : 5 - 50 klx III : 200 - 1000 Lux... -
Page 8: Technical Data
Technical Data LUNA 109 LUNA 110 Nominal voltage: 220–240 V, ~, +10 %/–15 % 220–240 V, ~, +10 %/–15 % Frequency: 50–60 Hz 50–60 Hz On/off switch delay: 1 min. 0–20 min. Power consumption: ca. 3 VA ca. 3 VA Contact material: AgSnO AgSnO...
