ANN-I/O Board Layout

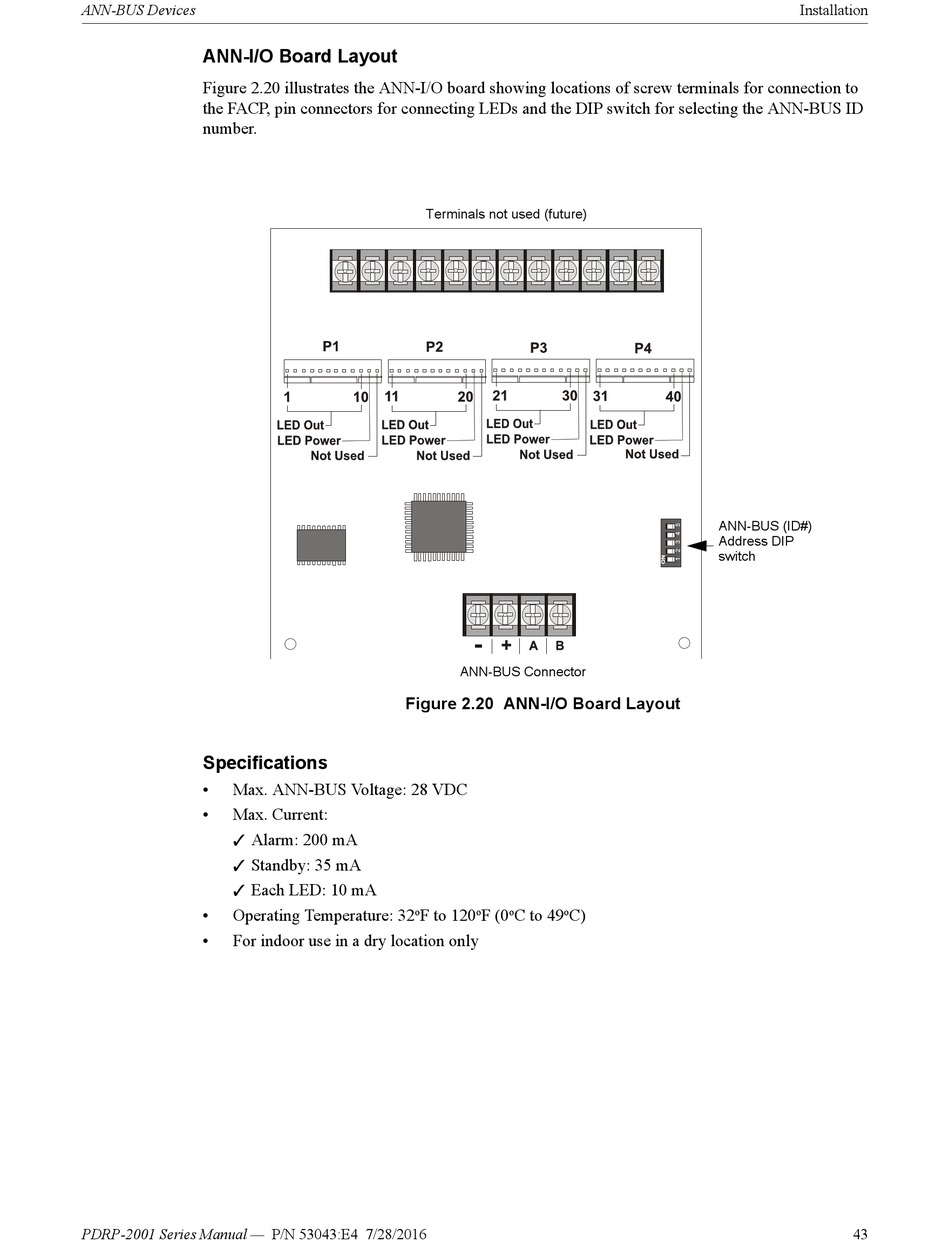

Figure 2.20 illustrates the ANN-I/O board showing locations of screw terminals for connection to
the FACP, pin connectors for connecting LEDs and the DIP switch for selecting the ANN-BUS ID
number.

Specifications

• Max. ANN-BUS Voltage: 28 VDC
• Max. Current:
Alarm: 200 mA

Standby: 35 mA

Each LED: 10 mA

• Operating Temperature: 32
• For indoor use in a dry location only
PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016
Terminals not used (future)
ANN-BUS Connector
Figure 2.20 ANN-I/O Board Layout
o F to 120 o F (0 o C to 49 o C)
Installation
ANN-BUS (ID#)
Address DIP
switch
43
