Product Description

1.3 Controls and Indicators

LCD Display
The FACP uses an 80-character (4 lines X 20 characters) high viewing angle LCD display. The
display includes a long life LED backlight that remains illuminated. If AC power is lost and the
system is not in alarm, the LED backlight will turn off to conserve batteries.
Key Panel
Mounted on the main circuit board, the key panel includes a window for the LCD display and
indicators as listed above. The key panel, which is visible with the cabinet door closed, has 25 keys,
including a 16 key alpha-numeric pad similar to a telephone keypad.

Function keys:

Acknowledge/Step
Alarm Silenced (Domestic/Export version)/Signal Silence (Canadian version)
Drill (Domestic/Export version)/Alarm Signal (Canadian version)
System Reset (lamp test)
Service/program keys:
Keys labeled 1 to 9
* key
# key
0 (recall) key
1st Event key
Clear key
Escape key
Mode key
Four cursor keys (up, down, left and right)
Enter key
Local Piezo Sounder
A piezo sounder provides separate and distinct pulse rates for alarm, trouble and supervisory
conditions.
Indicators
Indicators are provided to annunciate the following conditions:
Fire Alarm - red indicator
16
A
B
FIRE ALARM
AC POWER
O
R
PRE-DISCHARGE
T
DISCHARGE
SUPERVISORY
ALARM SILENCED
TROUBLE
2
1
3
1
ABC
DEF
4
5
6
JKL
GHI
ENTER
7
8
9
ESC
0
-/.
PDRP-2001 Keypad

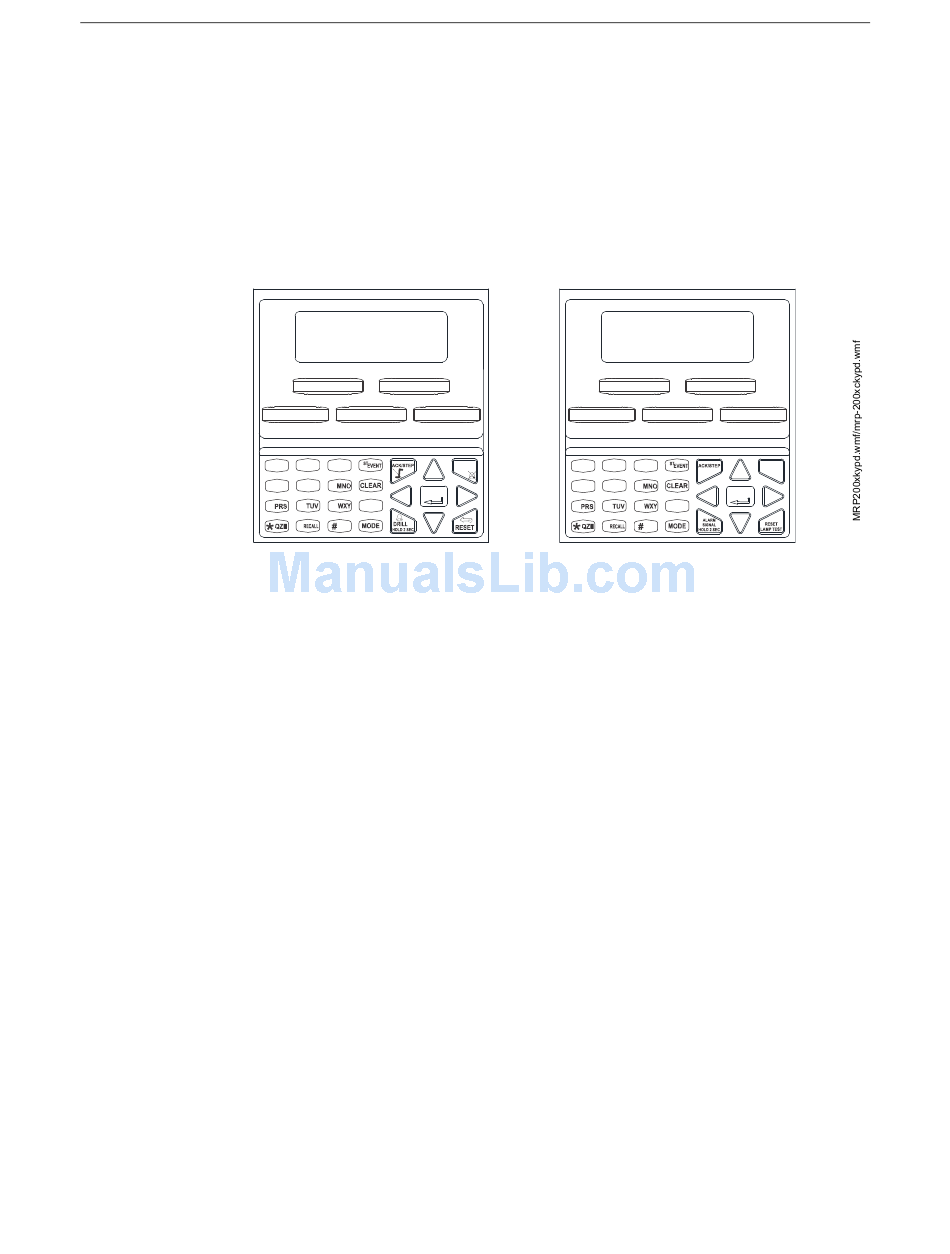

Figure 1.2 Membrane/Display Panel
AC POWER
PRE-DISCHARGE
SUPERVISORY
2
1
ALARM
ABC
SILENCED
4
5
JKL
GHI
8
7
0
PDRP-2001C Keypad
PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016
Controls and Indicators
A
B
FIRE ALARM
O
R
T
DISCHARGE
ALARM SILENCED
TROUBLE
3
1
DEF
SIGNAL
SILENCE
6
ENTER
9
ESC
-/.
