Backbox Mounting
Hinge Slot for
optional Dress Panel
Mounting
slots for
optional
Trim Ring
Semi-Flush
mounting hole
Hinge Slot for optional
Dress Panel
PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016

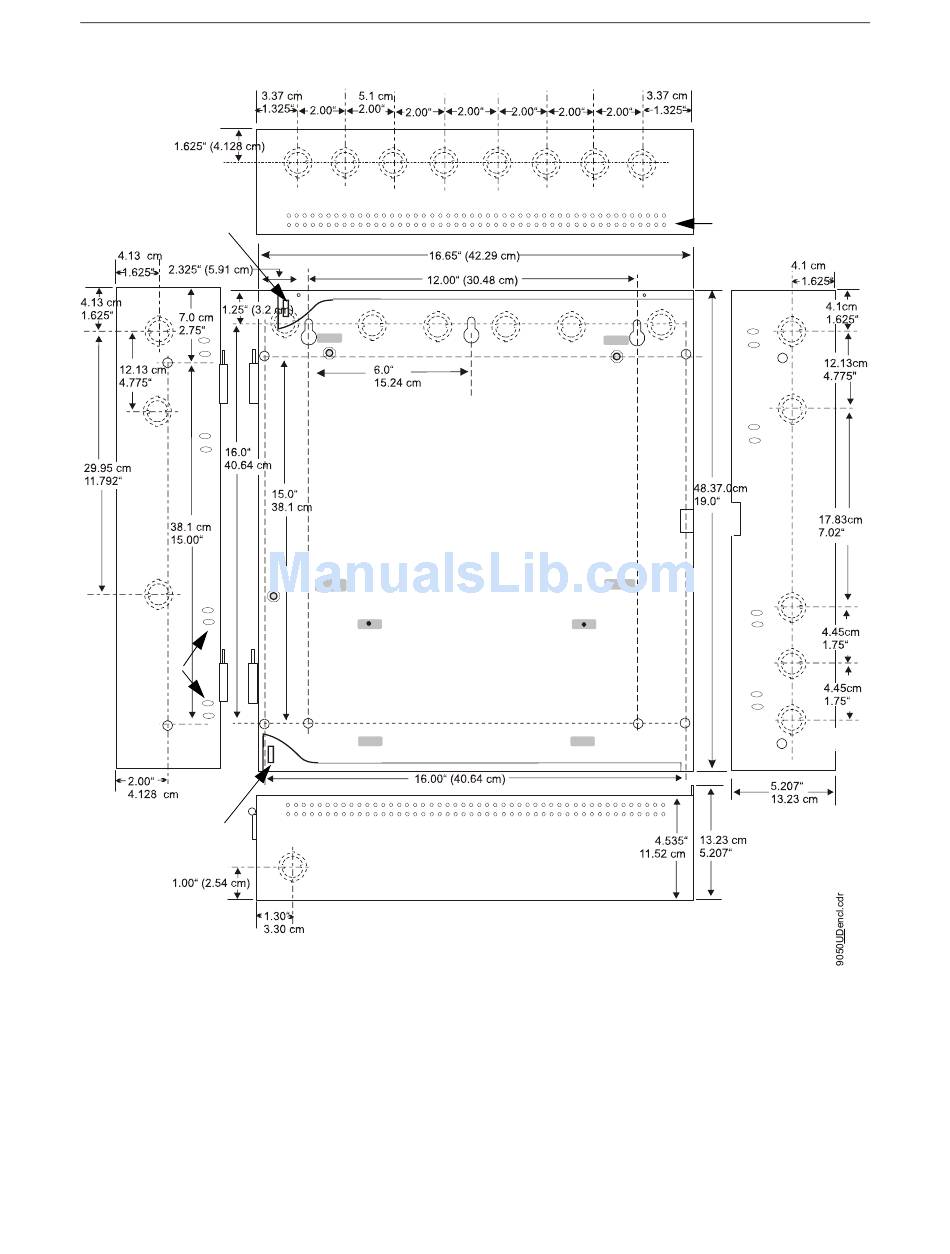

Figure 2.2 Cabinet Dimensions
Installation
Semi-Flush Mounting
Do not recess box more
than 3.875" into wall to
avoid covering venting
holes on top of box.
21
