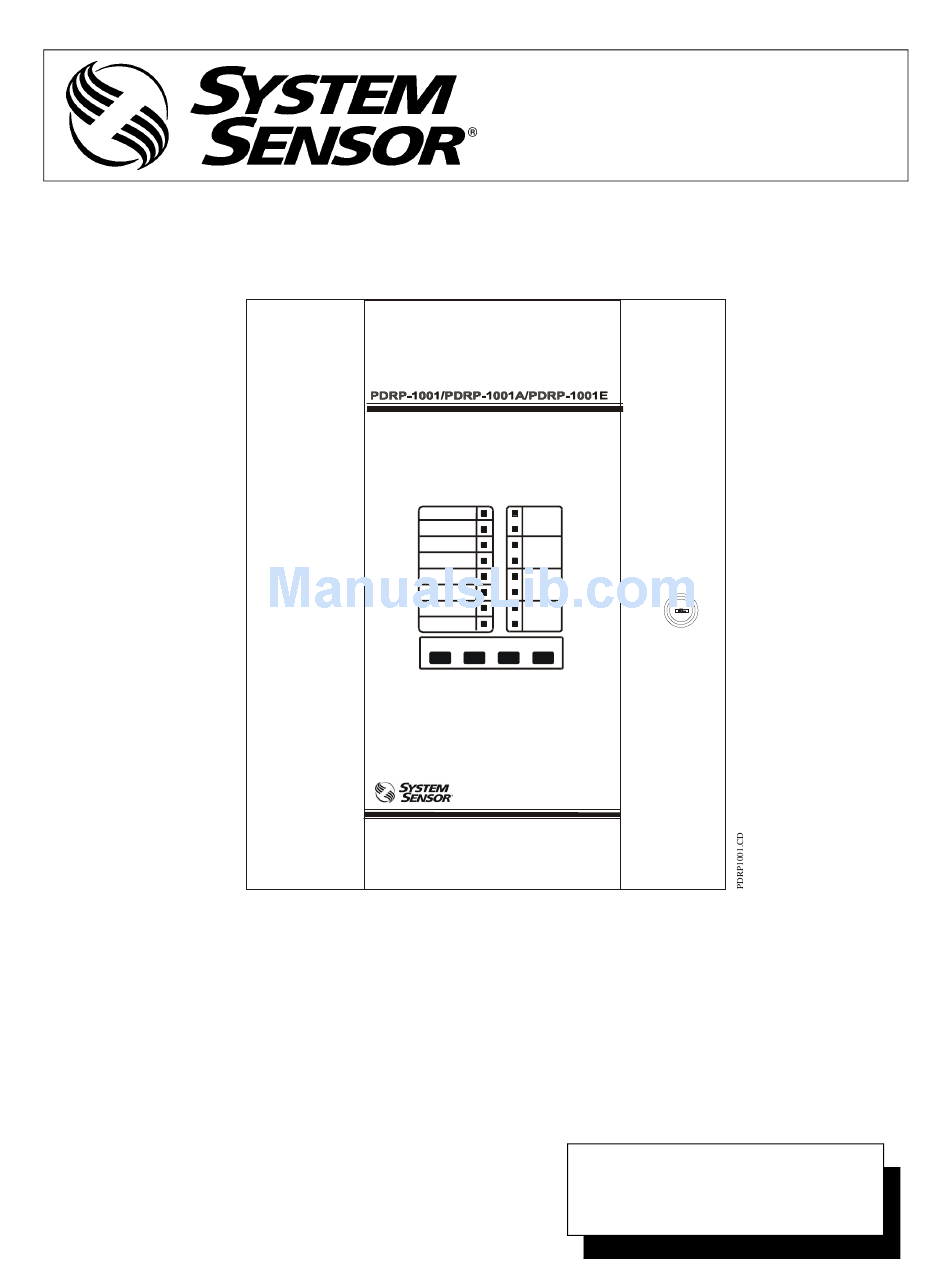

- Page 1 System Sensor 3825 Ohio Avenue St. Charles, IL 60174 1-800-SENSOR2 Fax: 630-377-6495 The PDRP-1001/PDRP-1001A/PDRP-1001E Deluge Preaction Control Panel Manual Document 50734 I56-933-01 03/11/99 Revision: PN 50734:C ECN 99-166...
-
Page 2: Fcc Warning
A prescrites dans le Reglement sur le brouillage case the user will be required to correct the interference at his own radioelectrique edicte par le ministere des Communications du expense. Canada. The PDRP-1001 PN 50734:C 03/11/99... -
Page 3: Table Of Contents
Zones ........................... 16 4-Wire Smoke Detector Connections............... 17 Output Circuits ......................18 Notification Appliance Circuits................... 18 Alarm Relay......................... 19 Trouble Relay ......................19 Power .......................... 19 AC Power ........................20 Battery Power ......................20 Voltmeter/Ammeter..................... 20 The PDRP-1001 PN 50734:C 03/11/99... - Page 4 Appendix C: NFPA Standard-Specific Requirements NFPA 72 Signaling Systems for Central Station Service ........... 37 NFPA 72 Auxiliary Fire Alarm System ..............39 NFPA 72 Remote Station Fire Alarm System............. 40 Troubleshooting Table ....................41 The PDRP-1001 PN 50734:C 03/11/99...
-
Page 5: Nfpa Standards
Other: NEC Article 300 Wiring Methods NEC Article 760 Fire Alarm Systems Applicable Local and State Building Codes Requirements of the Local Authority Having Jurisdiction Notifier Device Compatibility Document, 15378 ADA Americans with Disabilities Act The PDRP-1001 PN 50734:C 03/11/99... -
Page 6: The Pdrp-1001/Pdrp-1001A/Pdrp-1001E
Output circuits (optional auxiliary relays track these four circuits) Alarm/Waterflow Bell, Class A(Style Z)/Class B (Style Y) Waterflow/Supervisory Bell, Class A(Style Z)/Class B (Style Y) Releasing Circuit 1, Class B (Style Y) Supervisory Bell/Release Circuit 2, Class B (Style Y) The PDRP-1001 PN 50734:C 03/11/99... -
Page 7: Front Panel Control Switches
1 2 3 4 5 6 OPT 2 BATT EARTH Cross-Zone Not Used Dual Hazard Discharge Timer Micro Fail LED Discharge Timer Discharge Timer Battery Fail LED Ground Fault LED Figure 1 PDRP-1001/PDRP-1001A/PDRP-1001E Installation Diagram The PDRP-1001 PN 50734:C 03/11/99... -
Page 8: Optional Boards
1 The PDRP-1001/PDRP-1001A/PDRP-1001E Transmitter Module (4XTM - NOTIFIER) Optional Boards The PDRP-1001/PDRP-1001A/PDRP-1001E has mounting slots for two option boards. Any two of the three option modules may be installed. Transmitter Module (4XTM - NOTIFIER) The Transmitter Module provides a supervised output for... -
Page 9: For Remote Station Service (Nfpa 72 Remote Station Fire Alarm System)
The meters are DC VOLTS provided as an assembly that mounts to the lower left- hand corner of the cabinet. DC AMPERES The PDRP-1001 PN 50734:C 03/11/99... -
Page 10: Specifications
Total DC current available for powering external devices is 0.5 amp (subtracted from 2.25 amps available to notification appliance circuits). Maximum ripple voltage: 100 mV p/p Note: For device compatibility, refer to Device Compatibility Chart. The PDRP-1001 PN 50734:C 03/11/99... - Page 11 = 16.125 in. (409.58 mm) Backbox = 16 in. (406.4 mm) 1.5 in (38.1 mm) TR-4XR RUBY RD STEEL 16 GA. 16.094 in. (408.79 mm) 14.594 in. (370.69 mm) Optional Trim Ring TR-4XR Figure 2 Cabinet Dimensions The PDRP-1001 PN 50734:C 03/11/99...
-
Page 12: System Operation
EARTH Yellow LED that illuminates steadily on motherboard during a ground fault condition (not visible through door) MICRO FAIL Yellow LED that illuminates on motherboard when watchdog timer detects microprocessor failure (not visible through door) The PDRP-1001 PN 50734:C 03/11/99... -
Page 13: Control Switches
The alarm and/or trouble LED(s) will flash until the event(s) has been acknowledged ALARM LED (TONE or ALARM SILENCE), at which TROUBLE LED point the LED(s) will illuminate steadily. ALARM LED TROUBLE LED ALARM LED TROUBLE LED NOT USED TROUBLE LED The PDRP-1001 PN 50734:C 03/11/99... -
Page 14: Supervisory
With the TONE SILENCE switch held in, press (in sequence) the RESET switch, the ALARM ACTIVATE switch, and then the ALARM SILENCE switch. Last Event is displayed. Release the TONE SILENCE switch to return to normal operation. Note: To clear the last event buffer, press RESET twice. The PDRP-1001 PN 50734:C 03/11/99... -
Page 15: Installation Procedure
Furthermore, all power limited circuit wiring and non-power limited circuit wiring must enter and exit the cabinet through different knockouts and/or conduits. A typical wiring diagram for the PDRP-1001/ PDRP-1001A/PDRP-1001E is shown below. Power Limited... -
Page 16: Initiating Device Circuits
Figure 4 Example of an Alarm Initiating Device The PDRP-1001 PN 50734:C 03/11/99... -
Page 17: 4-Wire Smoke Detector Connections
24V power loop which must function at the same time in alarm. is the detector current in alarm. is the end-of-line relay current. The PDRP-1001 PN 50734:C 03/11/99... -
Page 18: Output Circuits
If configured as a supervisory circuit, the circuit will be power limited. All wiring must follow the power limited “General” Section. Figure 6 Notification Appliance Circuits The PDRP-1001 PN 50734:C 03/11/99... -
Page 19: Alarm Relay
Terminals 1 (+) and 2(-). holders can be connected to TB1 obtained from TB1 Terminals 3(+) terminals 1 (+) and 2(-). and 4(-). Figure 8 Diagram of Power Terminals The PDRP-1001 PN 50734:C 03/11/99... -
Page 20: Ac Power
AC Power AC Power Primary power required for the PDRP-1001/PDRP-1001A/PDRP-1001E panel is 120 VAC, 50/60 Hz, 1.2 amps and primary power for the PDRP-1002E is 220/240 VAC, 50 Hz, 0.6 amps. Overcurrent protection for this circuit must comply with Article 760 of the National Electrical Code (NEC) and/or local codes. -
Page 21: Optional Modules
Discharge Timer Note: • Optional 4XLM module for an RZA-4X Annunciator must be installed on J7 and J8 only. • 4XTM and 4XZM modules can be installed in either location. Figure 10 Optional Panel Modules The PDRP-1001 PN 50734:C 03/11/99... -
Page 22: Installing Option Modules
Insert screw through the option board until it is secured on the stand-offs. Affix the terminal identification labels provided with the option modules as shown below. (Part # 42050) Stand-offs) Main Option Board Board (NOTIFIER 4XZM shown) Figure 11 Installing Option Modules. The PDRP-1001 PN 50734:C 03/11/99... -
Page 23: Transmitter Module - 4Xtm (Notifier)
LED will indicate disconnected and/or Open Circuit conditions on the Municipal box. Cutting the TBL jumper will allow the alarm reverse polarity circuit to open on trouble, if no alarm exists. Note: Remote Alarm, Remote Trouble, and Municipal Box wiring can leave the building. The PDRP-1001 PN 50734:C 03/11/99... -
Page 24: Zone Relay Module - 4Xzm (Notifier)
Relay #4 Non-power Limited Circuit Note: Refer to the Protected Premises Unit label, located on the door of the control panel, to indicate if any dry contacts are to be used as non-power limited dry contacts. The PDRP-1001 PN 50734:C 03/11/99... -
Page 25: Led Interface Module - 4Xlm (Notifier)
Connect to corresponding terminals of RZA-4X Remote Annunciator. Single-gang Box Side View Front View Note: Make wiring connections with system power off. Maximum wire impedance is 50 ohms per wiring connection. Figure 12 LED Interface Module - 4XLM The PDRP-1001 PN 50734:C 03/11/99... -
Page 26: Dip Switch Location And Descriptions
Switch 3: DISCHARGE TIMER Switch 4: DISCHARGE TIMER Switch 1: CROSS ZONE Switch 5: DISCHARGE TIMER Switch 2: DUAL HAZARD Switch 6: NOT USED Note: The Reset key must be depressed after any switch configuration has been made. The PDRP-1001 PN 50734:C 03/11/99... -
Page 27: Setting Mode Of Operation
1) Timer will always start at Zone 2 normal to alarm transition. Upon time-out, corresponding release circuits will shut off. 2) Zone 1 will always override timer shutoff (except for Mode #4 - Split Release). The PDRP-1001 PN 50734:C 03/11/99... -
Page 28: Appendix A: Power Calculations
Add last column for Standby Battery Current : and continue to next table (Table 2) Table 1 Standby Battery Requirements Note: The control panel will support the installation of one or two optional modules, including two of the same type of module. The PDRP-1001 PN 50734:C 03/11/99... -
Page 29: Ampere-Hour Calculations
The battery charger in this panel will charge a maximum of 15 amp/hours of batteries within 48 hours (7 amp/hour minimum). Batteries larger than 12 amp/ hour will require a UL listed battery cabinet (e.g. NOTIFIER BB-17). The PDRP-1001 PN 50734:C 03/11/99... -
Page 30: Appendix B: Device Compatibility
ASCO solenoid valve Model R8210A107, 24 VDC, 16.8 Watts, 700 mA, 1/2 in. NPS, 5/8 in. orifice. ASCO solenoid valve Model 8210A107, 24 VDC, 16.8 Watts, 700 mA, 1/2 in. NPS, 5/ 8 in. orifice. The PDRP-1001 PN 50734:C 03/11/99... - Page 31 DH150A Floor Mount DH154A Flush Mount DH158A Surface Mount Table 4 24 VDC Door Holders Vendor Model Current(mA) System Sensor A77-716B Air Products & Controls, LTD MR-101/C MR-201/C Table 5 UL Listed 24 VDC Relays The PDRP-1001 PN 50734:C 03/11/99...
- Page 32 System Sensor MA-12/24D Electronic Sounder 24VDC System Sensor SS24 Strobe 24VDC note 5 System Sensor SS24LO Strobe 24VDC System Sensor SS24LOC Ceiling Strobe (SS24LOBC - beige) 24VDC System Sensor SS24M Strobe 24VDC System Sensor SS24MC Ceiling Strobe 24VDC System Sensor MASS24D Electronic Sounder/Strobe...
- Page 33 24VDC System Sensor SP101R24M Speaker/Strobe, 5" square grille 24VDC System Sensor SP100W24MC Ceiling Speaker/Strobe, 8" round grille 24VDC System Sensor MA12/24EH Multi Alert Horn with Mechanical Tone 12VDC/ 20/64 38/43 24VDC System Sensor MAEH24LO Multi Alert Horn with Mechanical Tone/Strobe...
- Page 34 2) All currents are in Millamperes and worst case average. 3) Nominal Operating voltage. 4) Refer to Installation Instructions for more information. 5) Contact manufacturer for currents. Table 6 UL Listed Notification Appliances The PDRP-1001 PN 50734:C 03/11/99...
- Page 35 B401 / B110LP / 15 / 15 / 1 B116LP System Sensor 2151 Photoelectric B401 / B110LP / 15 / 15 / 1 B116LP Table 7 UL Listed, Compatible Two-Wire Smoke Detectors for Notifier Control Panels The PDRP-1001 PN 50734:C 03/11/99...
-
Page 36: Appendix C: Nfpa Standard-Specific Requirements
Appendix C: NFPA Standard-Specific Requirements FM-Approved Releasing Devices Appendix C: NFPA Standard-Specific Requirements The PDRP-1001/PDRP-1001A/PDRP-1001E has been designed for use in commercial, industrial, and institutional applications and meets the requirements for service under the National Fire Protection Association (NFPA) Standards outlined in this appendix. -
Page 37: Nfpa 72 Signaling Systems For Central Station Service
The Maximum standby load shall be 125 mA. • The Standby by Battery Requirement: 24VDC, 7Amp-Hour-Max. • The PDRP-1001/PDRP-1001A/PDRP-1001E is not suitable for transmission of a supervisory signal to the DACT. NOTE on STD DACT: Place jumper over pins 2 and 3,... - Page 38 NFPA 72 Signaling Systems for Central Station Service Using the MS-5012 as a DACT Reference the MS-5012 manual for additional information. Program the MS-5012 for slave applications. The PDRP-1001/PDRP-1001A/PDRP-1001E is not suitable for transmission of a supervisory signal to the DACT. Secondary Phone Line...
-
Page 39: Nfpa 72 Auxiliary Fire Alarm System
Note: Maximum loop resistance allowed for wiring from control panel to Municipal Box is 3 ohms. FIRE Municipal Box Circuit Gamewell Model M34-56 Local Energy Municipal Box 4XTM (NOTIFIER) Transmitter Module (activated polarities shown) Figure 15 NFPA 72 Auxiliary Fire Alarm System The PDRP-1001 PN 50734:C 03/11/99... -
Page 40: Nfpa 72 Remote Station Fire Alarm System
MAXIMUM BATTERY SIZE 6.0 X 2.6 X 4.1 in. (15.24 x 6.6 x10.41 Remote Alarm Remote Trouble 4XTM (NOTIFIER) Transmitter Module (activated polarities shown) Figure 16 NFPA 72 Remote Station Fire Alarm System The PDRP-1001 PN 50734:C 03/11/99... -
Page 41: Troubleshooting Table
Check incoming power (TB5). (TB1 for 4XB Loss of main power panels) System trouble LED on AC Power LED off Damaged circuit breaker Replace circuit board. Micro Fail yellow LED on Microprocessor damaged Replace circuit board. Table 8 Trouble Shooting Table The PDRP-1001 PN 50734:C 03/11/99... - Page 42 Appendix C: NFPA Standard-Specific Requirements NFPA 72 Remote Station Fire Alarm System Notes The PDRP-1001 PN 50734:C 03/11/99...
- Page 43 NFPA 72 Remote Station Fire Alarm System Appendix C: NFPA Standard-Specific Requirements Notes The PDRP-1001 PN 50734:C 03/11/99...
-
Page 44: Limited Warranty
® which they are installed or intended. Buyer acknowledges that System Sensor not an insurer and assumes no risk for loss or damages or the cost of any inconve- nience, transportation, damage, misuse, abuse, accident or similar incident.
