PDRP-2001 Series

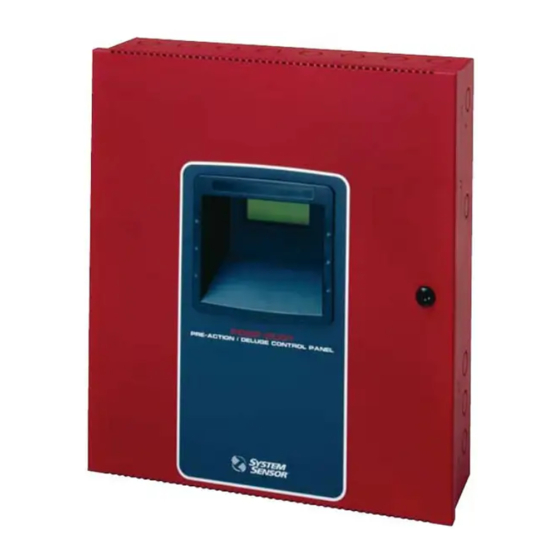

PRE-ACTION/DELUGE CONTROL PANEL
Instruction Manual
3825 Ohio Avenue
St. Charles, IL 60174
1-800-SENSOR2
Fax: (630) 377-6495
Document 53043
7/28/2016
P/N 53043:E4
E4
Rev:
ECN 16-235

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDRP-2001 and is the answer not in the manual?

Questions and answers

Related Manuals for System Sensor PDRP-2001

Summary of Contents for System Sensor PDRP-2001

  • Page 1 3825 Ohio Avenue St. Charles, IL 60174 1-800-SENSOR2 Fax: (630) 377-6495 PDRP-2001 Series PRE-ACTION/DELUGE CONTROL PANEL Instruction Manual Document 53043 7/28/2016 Rev: P/N 53043:E4 ECN 16-235...
  • Page 2 Adequate written records of all inspections should be kept. (especially in bedrooms), smoking in bed, and violent explosions Limit-D-1-2013 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 3: Installation Precautions

    Acclimate®, SpectrAlert®, and System Sensor® are all registered trademarks of Honeywell International Inc. Microsoft® and Windows® are registered trademarks of the Microsoft Corporation. Chrome™ and Google™ are trademarks of Google Inc.
  • Page 4 •Brief description of content you think should be improved or corrected •Your suggestion for how to correct/improve documentation Send email messages to: FireSystems.TechPubs@honeywell.com Please note this email address is for documentation feedback only. If you have any technical issues, please contact Technical Services. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 5: Table Of Contents

    ANN-LED Board Layout and Connection to FACP................46 2.7.7: ANN-RLY Relay Module .........................46 Specifications ............................46 Mounting/Installation ...........................47 ANN-RLY Board Layout and Connection to FACP................47 Section 3: Programming ......................48 3.1: User Programming............................48 3.2: Initial Power-up ............................49 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 6 4.3: Normal Operation ............................77 4.4: Trouble Operation ............................78 4.5: Alarm Operation ............................79 4.6: Supervisory Operation ..........................80 4.7: Disable/Enable Operation ..........................80 4.8: Waterflow Circuits Operation ........................80 4.9: 2nd-Shot Water Switch ..........................81 4.10: Detector Functions .............................81 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 7 C.2: Central Station/Remote Station Transmitter: Connection to FACP Dry Contacts........117 Appendix D: FACP with Keltron ..................118 Appendix E: Testing & Maintenance................... 119 E.1: Testing ...............................119 E.1.1: Inspection ............................119 E.1.2: Alarm Test............................119 E.1.3: Detector Testing ..........................119 E.2: Maintenance ..............................120 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 8 Table of Contents Appendix F: Wire Requirements ..................121 F.1: NAC Wiring ...............................122 Index ............................123 PDRP-2001, PDRP-2001E, PDRP-2001C PRE-ACTION/DELUGE CONTROL PANEL Operating Instructions ......................129 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 9 This product has been certified to comply with the requirements in the Standard for Control Units for Fire Alarm Systems, ULC-S527, 3rd Edition. Operation of this product with products not tested for ULC-S527 3rd Edition has not been evaluated. Such operation requires the approval of the local Authority Having Jurisdiction (AHJ). PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 10 Main Circuit Board rp2001layout.wmf PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 11 CUT FOR ENABLE 240VAC AC DELAY AM-1 TENS 16 HR DELAY ADDRESS GND FLT DISABLE ONES J2 J3 NC NO C A- B- A+ B+ CHG-120F Charger CHG-75 Charger Doc. # 51315 Doc. #50888 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 12: Section 1: Product Description

    Section 1: Product Description The PDRP-2001 is a six zone FACP for single and dual hazard deluge and preaction applications. The FACP provides reliable fire detection, signaling and protection for commercial, industrial and institutional buildings requiring water-based releasing. The FACP is compatible with System Sensor’s i...

  • Page 13: Specifications

    Releasing Solenoids  NACs programmable for:  – Silence Inhibit – Auto-Silence – Strobe Synchronization (System Sensor, Wheelock, Gentex, Faraday, Amseco) – Selective Silence (horn-strobe mute) – Temporal or Steady Signal – Silenceable or Nonsilenceable – Release Stage Sounder •...
  • Page 14 Special Application Resettable Power - TB9 Operating Voltage: Nominal 24 VDC Maximum Available Current: 500 mA - appropriate for powering 4-wire smoke detectors Power-limited Circuitry Refer to the Device Compatibility Appendix for compatible listed devices PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 15 ANN-BUS Refer to the battery calculations 0.5 amp max per circuit section for additional information. Standby 1.0 amp max ANN-SEC per panel Option Card 0.5 amp max per circuit Figure 1.1 Current Availability PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 16: Controls And Indicators

    Local Piezo Sounder A piezo sounder provides separate and distinct pulse rates for alarm, trouble and supervisory conditions. Indicators Indicators are provided to annunciate the following conditions: • Fire Alarm - red indicator PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 17: Components

    4XTMF mounts to the main circuit board connectors J4 & J5. ANN-SEC Secondary ANN-BUS Module The ANN-SEC module provides another ANN-BUS port for more wiring flexibility and for Canadian applications requiring remote annunciation. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 18 BB-55F battery box which can be mounted up to 20 feet away from the control panel. Note that when using the BB-55F for housing the charger and batteries greater than 26AH, multiple BB-55Fs are required. Refer to the CHG-120F Manual for additional information. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 19: Section 2: Installation

     Mark and drill the left and right upper and lower mounting holes  Note: outer holes (closest to sidewall) are used for 16” on-center stud mounting Install remaining fasteners and tighten  PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 20 Board on Chassis mounting holes mounting slots mounting studs mounting tabs grounding stud: attach solid earth ground wire (refer to Figure 2.4 on page 23) mounting slots Backbox Figure 2.1 Chassis Mounting in Backbox PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 21 Hinge Slot for holes on top of box. optional Dress Panel Mounting slots for optional Trim Ring Semi-Flush mounting hole Hinge Slot for optional Dress Panel Figure 2.2 Cabinet Dimensions PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 22: Operating Power

    AC power connections are made inside the control panel cabinet. The primary power source for the panel is 120 VAC, 60 Hz, 3.66 amps for the PDRP-2001 or 240 VAC, 50 HZ, 2.085 amps for the PDRP-2001E. Run a pair of wires (with ground conductor) from the protected premises main breaker box to the AC terminal block TB1 on the main power supply.
  • Page 23 AND EYES AND CAN DESTROY FABRICS. IF CONTACT IS MADE WITH SULFURIC ACID, IMMEDIATELY FLUSH THE SKIN OR EYES WITH WATER FOR 15 MINUTES AND SEEK IMMEDIATE MEDICAL ATTENTION. 120 VAC Power Hot (L1) Ground Neutral (L2) Ground Stud Batteries Figure 2.4 Operating Power Connections PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 24: Input Circuits

    Installation Input Circuits 2.3 Input Circuits The PDRP-2001 has six programmable IDCs (Initiating Device Circuits). Each circuit is compatible with System Sensor’s i smoke detectors which generate a maintenance signal when the detector becomes dirty and a separate supervisory ‘freeze’ signal when ambient temperature falls below the detector rating of approximately 45 F.
  • Page 25 Supervisory Switch activation causes the panel to latch the supervisory condition if the  Combo type code is selected or track (the panel will clear when the supervisory condition is cleared) if the Combo Autoresettable Supervisory type code is selected. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 26: Output Circuits

    REL-4.7K for Canadian Applications. Refer to the section titled “Release Circuit 1 or Release Circuit 2” on page 57 for information on enabling short circuit supervision. Unused Output Circuit 4.7KΩ dummy load resistor PN 71245 Figure 2.7 NAC/Output Connections PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 27: 2: Special Application Dc Power Output Connections

    Output Circuits Installation 2.4.2 Special Application DC Power Output Connections Special Application Resettable and Nonresettable 24 VDC power is available on the PDRP-2001 control panel. Special Application 4-Wire Smoke Detector Power (500 mA) 24 VDC filtered, resettable power for 4-wire smoke detectors...

  • Page 28: Power-Limited Wiring Requirements

    CAC-5X CAC-5X AC Power 120 VAC Hot (L1) Ground Neutral (L2) 4XTMF Nonpower- ground limited stud Circuit Power-limited Circuit (Class 2) Deluge - Preaction Control FACP Figure 2.10 Typical UL Power-limited Wiring Requirements PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 29: Installation Of Optional Modules

    Installation on J7 Connector Installation on J2 Connector CAC-5X Module CAC-5X Module Metal Metal Metal Plastic Standoff Standoff Standoff Standoff Main Circuit Board Figure 2.11 CAC-5X Module Installation PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 30: Wiring Nacs And Idcs For Class A

    B+ B- FACP Main Circuit Board A- A+ A+ A- A+ A- A+ A- A+ A- A+ A- CAC-5X Class A Converter Module Figure 2.12 Wiring NACs and IDCs for Class A Operation PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 31: 2: 4Xtmf Municipal Box Transmitter Option Module

    Local Energy Municipal Box Service (NFPA 72 Auxiliary Fire Alarm Systems): Supervisory Current: 5.0 mA Trip Current: 350 mA (subtracted from notification appliance power) Coil Voltage: 3.65 VDC PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 32 Dummy load terminals 6 and 7 (4.7kΩ, ¼ watt resistor) if Municipal Box is not connected. Disconnect Switch shown in disconnect position Disconnect LED Connect to FACP Connectors J4 & J5 Figure 2.14 4XTMF Transmitter Module PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 33: 3: Ann-Sec Option Card

    When operating two ANN-BUS circuits, only one ANN-S/PG Printer module can be used in the system. • The panel is capable of operating a primary ANN-BUS (TB3) and a secondary ANN-BUS (TB1 on ANN-SEC card) simultaneously. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 34: 1: Ann-Bus Wiring

    Maximum Resistance (Ohms) Total Worst Case Current Draw (amps) Maximum Resistance (Ohms) Maximum Wire Length (feet) *500 (6,000 feet maximum) where: Rpu = Ohms per 1,000 feet for various Wire Gauges (see table below) PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 35 463 feet maximum using 22 Gauge wire  1,172 feet maximum using 18 Gauge wire  1,866 feet maximum using 16 Gauge wire  2,953 feet maximum using 14 Gauge wire  PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 36: Wiring Configuration

    Cut Ground Fault Detection jumper JP1 (FACP monitors for ground faults) FACP Primary ANN-BUS ANN-BUS -24 VDC ANN-80 +24 VDC ANN-BUS and power wiring are supervised and power-limited FCPS-24FS6/8 Figure 2.17 Powering ANN-BUS Devices from FCPS-24FS6/8 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 37: 2: Ann-Bus Device Addressing

    ANN-SB80KIT-W (white) surface mounting box or semi-flush mounted to a single, double or 4” square electrical box. Select and remove the appropriate knockout(s), pull the necessary wires through the knockouts and mount the annunciator in or on the wall depending on the type of installation desired. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 38: Wiring Ann-80 To Facp

    3 & 4. Make certain to connect A to A and B to B. Connect the wiring from the 24 VDC power source to annunciator TB1 terminals 1 (-) & 2 (+). Make certain to observe proper polarity. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 39: 4: Ann-S/Pg Serial/Parallel Printer Interface Installation

    Note that either a serial or parallel printer may be installed, not both. Only one ANN-S/PG can be used per panel Proceed with the installation as described in the following: Ensure that all power (AC and DC) has been removed from the FACP. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 40: Specifications

    Connect the remote printer to the FACP via the ANN-S/PG module using a standard DB-9 cable. One end of the cable will plug into the DB-9 connector on the PRN-7 printer and the other end plugs into the serial connector on the ANN-S/PG module. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 41: Prn-6F Printer Installation

    ANN-S/PG is used to connect a serial printer. The 25-pin port is used for a Centronics parallel printer cable. Connect either a serial or parallel printer, but not both at the same time. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 42: 5: Ann-I/O Led Driver Module

    The ANN-I/O can drive up to 40 LEDs. The following sections describe hardware installation. Refer to the section titled“ANN-BUS” on page 66 for programming information. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 43: Ann-I/O Board Layout

    Alarm: 200 mA  Standby: 35 mA  Each LED: 10 mA  • Operating Temperature: 32 F to 120 F (0 C to 49 • For indoor use in a dry location only PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 44: Ann-I/O Connection To Facp

    10 mA of current for each LED. No series resistors are required. LED outputs are mapped to output circuits. Refer to the section titled “ANN-I/O LED Zone Assignments” on page 68 of this manual. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 45: 6: Ann-Led Annunciator Module

    Operating Temperature: 32 F to 120 F (0 C to 49 • For indoor use in a dry location only Mounting/Installation Install the ANN-LED Module as described in the documentation supplied with the annunciator. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 46: Ann-Led Board Layout And Connection To Facp

    2.0 amps @ 30 VDC (resistive)  0.5 amps @ 30 VAC (resistive)  • Operating Temperature: 32 F to 120 F (0 C to 49 • For indoor use in a dry location only PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 47: Mounting/Installation

    FACP and the DIP switches for selecting the ANN-BUS ID number. ANN-BUS (ID#) Address DIP switch FACP ANN-RLY -24 VDC +24 VDC Primary ANN-BUS Figure 2.24 ANN-RLY Board Layout and Connection to FACP PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 48: Section 3: Programming

    Manual programming or editing, using the FACP keypad The System All Normal screen will be displayed in a programmed system with no active alarms, troubles or supervisories, as illustrated below: SYSTEM ALL NORMAL 10:00A 091814 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 49: Initial Power-Up

    To view all of the choices, it is necessary that the programmer scroll through a number of additional subscreens. These selections are displayed on multiple screens to make them more readable for the programmer. Refer to “Master Programming Level” on page 51, for additional information on the various screens. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 50: Programming And Passwords

    If the Maintenance level password (default 11111) is entered, the following screen will appear: PROGRAMMING 1=INPUT ZONES 2=HISTORY 3=WALKTEST Note that in the two preceding screens, an arrow appears to inform the programmer that additional options can be viewed by pressing the keypad down arrow key. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 51: Master Programming Level

    Template will be displayed by the LCD. To select a pre-programmed template, press the number key corresponding to the desired template. Note that the factory templates may pre-set most programmable features of the FACP. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 52: 2: Input Zones

    Pressing the down arrow key displays additional zone types as indicated in the following table. Zone Type Action When Activated Pull-Station Fire Alarm Manual Release Fire Alarm Normally Open Contact Fire Table 3.1 Zone Types PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 53 4=SUPV BELL NAC N/A 1=ALARM 2=WATERFLOW NAC 3=RELEASE 1 Output Zone Screen#2 Output Map Screen#1 The screens indicate that when Input Zone 1 is activated: Output Circuit #1 default programmed as Alarm NAC will activate (Yes) PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 54 Adjective Screen #2 Adjective Screen #3    1=FLOOR1 1=3RD 1=MAIN 2=FLOOR2 2=4TH 2=FIRST 3=FLOOR3 3=5TH 3=2ND Adjective Screen #6 Adjective Screen #4 Adjective Screen #5  1=FLOOR4 2=FLOOR5 3=ROOM Adjective Screen #7 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 55 (overflow). • The above increment function may be repeated with each press of the zero key. As an example, the user could quickly enter ‘FLR_3_ROOM_305’ as follows: PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 56: 3=Output Circuits

    Pressing the down arrow key while viewing the Edit Output Type Screen will display additional screens with the types shown below: Release Circuit 1  Release Circuit 2  Alarm NAC  Waterflow NAC  Release Stage NAC  Horn NAC  PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 57: Silence

    Silenceable. This option is used for Release Stage NACs or cross-zone coding NACs. These NACs will be non-silenceable until its associated Release Circuit has finished discharging, after which the NAC will become silenceable. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 58: Auto Silence

    2=FUTURE USE 2=MARCH TIME 3=FUTURE USE 3=CALIFORNIA Coding Screen #1 Coding Screen #2 CODING CODING 1=CROSS ZONE 1=SYNC GENTEX 2=SYNC FARADAY 2=SYNC SYSTEM SENSOR 3=SYNC AMSECO 3=SYNC WHEELOCK Coding Screen #4 Coding Screen #3 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 59: Synchronized Nac Operation

    Circuit to perform a release and the programmed NAC output to turn on steady • Synchronized output for System Sensor, Wheelock, Gentex, Faraday or Amseco - Refer to “Synchronized NAC Operation” on page 59 for additional information. Selection of one of the above options will cause the control panel to store the information in memory and return the display to Output Screen #1, which will display the new coding choice.

  • Page 60: 4: Cross Input Zones

    Pressing 2 while viewing Programming Screen #2 will allow the programmer to configure the three main circuit board Form-C relays. The following screen will be displayed: ON-BOARD RELAYS 1=RELAY 1 ALARM 2=RELAY 2 TROUBLE 3=RELAY 3 SUPERVSRY Relays Selection Screen PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 61: 6: System Setup

    ANN-SECONDARY: This option allows the use of a secondary ANN-BUS with the ANN-SEC option module. This option must be enabled if the ANN-SEC option card is installed on J13 of the main circuit board. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 62: Timers

    To select a Waterflow delay of 01 to 90 seconds for all devices programmed for Waterflow delay, press 3 while viewing Timer Screen #1 to display the following screen: WATERFLOW DELAY RANGE 00-90 SECONDS Waterflow Delay Screen PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 63: Banner

    A maximum of 20 characters (including spaces) can be entered into the screen. After entering up to 20 characters in the screen, press Enter to store the entry. To quickly clear the current banner, press the CLR key. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 64: Time-Date

    After the last year digit is entered, the display will return to the Time-Date Screen which will show the new date entry. If an error is made while entering a digit, press the CLR key to delete the entire entry and beginning again. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 65: Trouble Reminder

    If an external battery charger is being used, the onboard battery charger must be disabled. Each press of the 3 key will toggle between Chargr Disable No and Chargr Disable Yes. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 66: Canadian Option

    ANN-BUS, press 1 while viewing ANN-BUS screen #1 so that the display reads ANN- BUS Enabled Yes. Each press of the 1 key will cause the display to toggle between ANN-BUS Enabled Yes and ANN-BUS Enabled No. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 67: Ann-Bus Modules

    #1. Each press of the 2 key will cause the display to toggle between Printer Supv NO for no supervision and Printer Supv YES for printer supervision. Note that this option is not selectable if the Serial Port option has been selected. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 68: Ann-I/O Led Zone Assignments

    Not Used Not Used Not Used Not Used Zone 1 Supervisory Zone 2 Supervisory Zone 3 Supervisory Zone 4 Supervisory Zone 5 Supervisory Zone 6 Supervisory Not Used Not Used Not Used Not Used PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 69: Options

    Pressing 1 for ANN-RLY Options while viewing ANN-BUS Screen #3 will cause the following 2=ANN-LED OPTIONS screen to be displayed: ANN-BUS Screen #3 ANN-RLY OPTIONS 1=RELAY 1 IN ZONE 1 2=RELAY 2 IN ZONE 2 3=RELAY 3 IN ZONE 3 ANN-RLY Options Screen PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 70: 8: History

    Pressing 1 while viewing the History Screen will allow the user to select the events to be viewed as illustrated in the following: HISTORY 1=VIEW ALL 2=VIEW ALARMS 3=VIEW OTHER EVENTS View Events Screen PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 71: Erase History

    Note that the Walktest log is stored in RAM. If all power (AC and DC) is removed from the FACP, the Walktest log information will be lost. This information is also overwritten when subsequent walktests are performed. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 72: 10: Clear Program

    To access Maintenance Programming mode, press the Enter key. The LCD will display the following: 1=READ STATUS 2=PROGRAMMING To enter the Maintenance Programming mode, press 2. The display will read as follows: PROGRAMMING ENTER PASSWORD PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 73: 1: Input Zones - Enable/Disable

    To view all of the selected events, press the up or down arrow keys to scroll through the list of events. If no events have occurred, the display will read NO EVENTS IN HISTORY. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 74: 3: Walktest

    Time and Date Screen displaying the new time. To change the date, press 2 while viewing the Time and Date Screen. The following screen will be displayed: ENTER DATE -- MONTH DAY YEAR 09-19-2014 Date Screen PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 75 To change between 12 hour and 24 hour format, press 3 for Clock Format while viewing the Time and Date screen. Each press of the 3 key will toggle the display between 12 HR and 24 HR format. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 76: Section 4: Operating Instructions

    It also performs a lamp test by turning on all LEDs, piezo sounder and LCD display segments after the Reset key is released. Any alarm or trouble that PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 77: Indicators

    Monitors and reports status option cards and control panel  Refreshes LCD display and updates time  Scans control panel keypad for key presses  Tests memory  Updates and reads all communications busses (EIA-485, etc.)  PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 78: Trouble Operation

    Time; the current time in this example is 10:00A which represents 10:00 AM  Date; the current month, day and year in this example is 09 for September, 18 for the 18th  day of the month and 14 for the year 2014 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 79: Alarm Operation

    <ADJ>; refers to the user programmed adjective descriptor from library list resident in the  control panel or custom entry via PC. <NOUN>; refers to the user programmed noun descriptor from library list resident in the  control panel or custom entry via PC. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 80: Supervisory Operation

    Note that disabled Releasing Circuits are treated as supervisory events. 4.8 Waterflow Circuits Operation If an alarm exists from a zone that is a waterflow non-silenceable type, the Alarm Silence key will not function. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 81: 2Nd-Shot Water Switch

    Circuit to perform a water release and the programmed NAC output to turn on steady • Synchronized output for System Sensor, Wheelock, Gentex, Faraday or Amseco - Refer to “Synchronized NAC Operation” on page 59 for additional information. 4.12 Release Stages Outputs programmed as Release Stage NACs indicate the two stages of a release operation: PDRP-2001 Series Manual —...

  • Page 82: Special System Timers

    Disabled NAC devices will not activate during walktest. In addition, i smoke detectors will enter their own test mode causing their LEDs to flash twice every five seconds (refer to i specification document). PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 83: Read Status

    FACP (refer to “FACP CONFIG (Application Templates)” on page 51). As an example, if Template 7 was programmed as the FACP configuration, the following screen will be displayed: READ FACP CONFIG TEMPLATE 7 SINGLE HAZARD 3 ZONE PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 84: 2=Input Zones

    Pressing 1 while viewing Read Status Screen #2 will display the following screens: READ STATUS CROSS INPUT ZONES 1=CROSS INPUT ZONES 2=ON-BOARD RELAYS 1=RELEASE 1 3=SYSTEM SETTINGS 2=RELEASE 2 Read Status Screen #2 Cross Input Zone Screen PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 85: 5: On-Board Relays

    DAYLIGHT SAVINGS DAYLIGHT SAVINGS ENABLED END MONTH START MONTH END WEEK WK 1 START WEEK WK 2 These screens allow the operator to view settings that have been programmed for Daylight Savings Time. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 86: 9: History

    Pressing 2 while viewing ANN-BUS Screen #2 will display the programmed options for the ANN- RLY devices connected to the ANN-BUS. NOTE: The ANN-I/O and ANN-LED modules do not require any additional programming configuration. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 87: Section 5: Power Supply Calculations

    Number of Current Draw Total Current Device Type Devices (AC amps) per Device PDRP-2001/C 3.66 PDRP-2001E 2.085 Sum Column for AC Branch Current Required Table 5.1 AC Branch Circuit Requirements PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 88: Calculating The System Current Draw

    Calculation Column 2 - The secondary supply current load that the control panel must  support during a fire alarm condition. Calculation Column 3 - The standby current drawn from the batteries in a non-fire alarm  condition during a loss of AC power. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 89 3 Refer to the Device Compatibility Appendix for standby current. 4 Enter the number of IDCs used minus one. 5 Must use compatible listed Power Supervision Relay. 6 Total current draw listed above cannot exceed 7.2 amps PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 90: Calculating The Battery Size

    18 AH. Batteries larger than 18 AH require the BB-55F, BB-26, or other UL listed external battery cabinet. For Canadian Applications, the minimum battery size is 12 AH and the maximum battery size is 18 AH. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 91: Appendix A: Circuit Mapping And Cross-Zoning

    3. The programming menus will prevent you from mapping any incompatible input zone and output circuit types together, such as mapping a supervisory input zone to a releasing output circuit. 4. Timers and/or delays are not represented in these examples. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 92: A.1.1: Mapping Input Zones To Output Circuits For Direct Activation

    (Release 1) but not output circuits 3 or 4. ZONE 1 TYPE 1=2-WIRE SMOKE 2=2-WIRE HEAT 3=N/A OUTPUT MAP ZONE 1 1=ALARM NAC 2=RELEASE 1 3=WATERFLOW NAC OUTPUT MAP ZONE 1 1=SUPV BELL NAC PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 93: A.1.2: Mapping Input Zones To Release Circuits For Cross Zone Activation

    2=RELEASE 1 2=RELEASE 1 3=ALARM NAC 3=ALARM NAC OUTPUT MAP ZONE 1 OUTPUT MAP ZONE 2 1=SUPV BELL NAC 1=SUPV BELL NAC REL 1 CROSS GROUP 1 1=ZONE 1 2=ZONE 2 3=ZONE 3 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 94 REL 1 CROSS GROUP 1 REL 2 CROSS GROUP 1 1=ZONE 1 1=ZONE 1 2=ZONE 2 2=ZONE 2 3=ZONE 3 3=ZONE 3 REL 2 CROSS GROUP 1 1=ZONE 4 2=ZONE 5 3=ZONE 6 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 95: A.1.3: Complex Examples Of Cross Zoning And I/O Mapping For Release Circuits

    INPUT ZONES menus. Example 8: Release Circuit 1 activates if Input Zone 1 activates followed in time by Input Zone 2 activating. • This kind of sequential reaction is not possible at this time. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 96: Appendix B: Facp Configuration Templates

    Appendix B: FACP Configuration Templates The PDRP-2001 has been provided with preprogrammed templates which allow the user to quickly configure the FACP [refer to “FACP CONFIG (Application Templates)” on page 51]. The user also has the option to reprogram selected portions of the template for customized applications. The following pages of this appendix describe the programming for each of the templates.

  • Page 97: B.1: Template 1: Single Hazard - 3 Zone

    Activation of Input Zone 3 (Waterflow) will operate the Waterflow NAC Output #2. There is no FACP initiated delay in activation since the Waterflow Delay Timer is set to 0 seconds • Activation of Input Zone 6 (Supervisory) will operate the Supervisory Bell NAC Output #4 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 98 All End-of-Line Resistors, illustrated in this example, are 4.7KΩ, ˝ watt (PN: 71252). All devices are connected as Class B circuits. For details on connecting as Class A circuits, refer to “CAC-5X Class A Converter Module” on page 29. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 99: B.2: Template 2: Single Hazard - Cross-Zone With Manual Release

    Activation of Input Zone 3 (Waterflow) will operate the Waterflow NAC Output #2. There is a 60 second FACP initiated delay in activation since Waterflow Delay Timer is set to 60 seconds • Activation of Input Zone 6 (Supervisory) will operate the Supervisory Bell NAC Output #4 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 100 All End-of-Line Resistors, illustrated in this example, are 4.7KΩ, ˝ watt (PN: 71252). All devices are connected as Class B circuits. For details on connecting as Class A circuits, refer to “CAC-5X Class A Converter Module” on page 29. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 101: B.3: Template 3: Dual Hazard - Combined Release

    Activation of Input Zone 3 (Waterflow) will operate the Alarm NAC Output #1. There is a 10 second FACP initiated delay in activation since Waterflow Delay Timer is set to 10 seconds • Activation of Input Zone 6 (Supervisory) will operate the Supervisory Bell NAC Output #2 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 102 All End-of-Line Resistors, illustrated in this example, are 4.7KΩ, ˝ watt (PN: 71252). All devices are connected as Class B circuits. For details on connecting as Class A circuits, refer to “CAC-5X Class A Converter Module” on page 29. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 103: B.4: Template 4: Dual Hazard - Split Release

    Activation of Input Zone 3 (Waterflow) will operate the Alarm NAC Output #1. There is a 10 second FACP initiated delay in activation since Waterflow Delay Timer is set to 10 seconds • Activation of Input Zone 4 (Supervisory) will operate the Supervisory Bell NAC Output #2 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 104 All End-of-Line Resistors, illustrated in this example, are 4.7KΩ, ˝ watt (PN: 71252). All devices are connected as Class B circuits. For details on connecting as Class A circuits, refer to “CAC-5X Class A Converter Module” on page 29. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 105: B.5: Template 5: Single Hazard - 3 Zones And Low Pressure

    Activation of Input Zone 3 (Waterflow) will operate the Waterflow NAC Output #2. There is a 10 second FACP initiated delay in activation since Waterflow Delay Timer is set to 10 seconds • Activation of Input Zone 6 (Low Pressure) will operate the Supervisory Bell NAC Output #3 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 106 All End-of-Line Resistors, illustrated in this example, are 4.7KΩ, ˝ watt (PN: 71252). All devices are connected as Class B circuits. For details on connecting as Class A circuits, refer to “CAC-5X Class A Converter Module” on page 29. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 107: B.6: Template 6: Single Hazard - 2 Zones Cross-Zoned With All Active

    Activation of Input Zone 3 (Waterflow) will operate the Waterflow NAC Output #2. There is a 10 second FACP initiated delay in activation since Waterflow Delay Timer is set to 10 seconds • Activation of Input Zone 6 (Low Pressure) will operate the Supervisory Bell NAC Output #3 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 108 All End-of-Line Resistors, illustrated in this example, are 4.7KΩ, ˝ watt (PN: 71252). All devices are connected as Class B circuits. For details on connecting as Class A circuits, refer to “CAC-5X Class A Converter Module” on page 29. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 109: B.7: Template 7: Single Hazard - Dual Zone

    NAC Output #2 and Waterflow NAC Output #4. There is a 10 second FACP initiated delay in activation of these outputs since the Waterflow Delay Timer is set to 10 seconds • Activation of Input Zone 3 (Low Pressure) will not operate any Output Circuits (see Relays) PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 110 All End-of-Line Resistors, illustrated in this example, are 4.7KΩ, ˝ watt (PN: 71252). All devices are connected as Class B circuits. For details on connecting as Class A circuits, refer to “CAC-5X Class A Converter Module” on page 29. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 111: Appendix C: Nfpa Standard-Specific Requirements

    The relay contacts of this control panel may be used to trip any dialer that is UL-listed for Central Station/Remote Station services. The illustrations in this appendix provide examples of possible system configurations. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 112 NFPA Standard-Specific Requirements The following figure illustrates an example of Central Station/Remote Station Reporting using a 411UD. The relay contacts from the PDRP-2001 may be used to trip any dialer UL-listed for Central Station/Remote Station Reporting Services. 411UD Channel1 Channel 2 Channel 3 Channel 4 (2.2K ELR)
  • Page 113 End-of-Line resistors must terminate all 411UD circuits, including unused circuits. Program the 411UD for slave operation. The PDRP-2001 must be programmed for AC Loss Reporting Delay This prevents the immediate transmission of a trouble on the loss of AC power.

  • Page 114: C.1: Nfpa 72 Auxiliary Fire Alarm System

    Notes: 3 ohms maximum loop resistance allowed for wiring from control panel to Municipal Box. Cut JP30 on the PDRP-2001 main circuit board to supervise placement of 4XTMF module and circuit. Cut JP24 on the PDRP-2001 main circuit board to enable FACP Supervisory relay.
  • Page 115 NFPA Standard-Specific Requirements NFPA 72 Remote Station Protective Signaling System Notes: Cut Jumper JP30 on the PDRP-2001 main circuit board to supervise placement of the 4XTMF module. Refer to “4XTMF Transmitter Module Installation” on page 31 for detailed information. RS82 Remote Station Receiver UL listed.
  • Page 116 NFPA 72 Proprietary Protective Signaling System. 3. Potter Electric Model EFT-C has not been tested for UL 864 9th Edition and is for use in retrofit applications only. Figure C.4 Proprietary Protective Signaling System PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 117: C.2: Central Station/Remote Station Transmitter: Connection To Facp Dry Contacts

    C.2 Central Station/Remote Station Transmitter: Connection to FACP Dry Contacts The dry contacts of the PDRP-2001 programmable relays can be used to trip a UL-864 Listed Central Station/Remote Station Transmitter. The FACP contacts must be supervised by the Central Station/Remote Station Transmitter module using End-of-Line Resistors (ELRs) with a value determined by the Transmitter manufacturer.

  • Page 118: Appendix D: Facp With Keltron

    Note: Cut TBL jumper on 4XTM module to send alarm/trouble signal from the same pair or terminals. Fire Alarm Control Panel (terminal blocks are not shown in their actual positions in order to clarify wiring connections) PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 119: Appendix E: Testing & Maintenance

    End-of-Line device to serve as a dummy load to prevent unwanted water release. Ensure proper wiring and power is applied. After power-up, allow 80 seconds for the detectors to stabilize before testing. Refer to System Sensor’s i Installation and Maintenance Instructions document I56-1800-00 for device specifications and testing procedures.

  • Page 120: E.2: Maintenance

    If a detector fails any of the above test methods, its wiring should be checked and it should be cleaned as outlined in the Maintenance section of the System Sensor Document. If the detector still fails, it should be replaced.

  • Page 121: Appendix F: Wire Requirements

    20 feet in same CHG-75, room CHG-120, etc. NAC/Solenoid Connects to NAC Untwisted, unshielded Refer to Section F.1 on page 122. Outputs devices or pair wire Release devices Table F.1 FACP Wire Specifications PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 122: F.1: Nac Wiring

    1.51 1.36 2.75 1.24 1.13 Table F.2 NAC Wiring Requirements for FACP Calculations are based on Direct-Current Resistance data for uncoated copper wire, per National Electrical Code (2005 Edition) Table 8, Conductor Properties. PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 123: Index

    60 ANN-BUS 67 Cross-Zone 59 Autosilence cross-zoning 60 NAC 58 current Autosilence Timer 82 nonresettable power 27 auxiliary power 27 resettable power 27 Auxiliary Trouble Input 14 total output 26 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 124 16 guidelines 33 lamp test 16 LCD display 12 LED annunciator module 18 LED driver module 42 History 70 connections 44 erase 71 specifications 43 log 12 wiring LEDs 44 maintenance level 73 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 125 72 Notification Appliance Circuit 12 program keys Class A 30 see also Key Panel 16 Noun Programming 49 list 55 autoprogramming 48 multiple entries 55 exiting 49 Level 1 49 Level 2 49 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 126 27 Trouble Reminder 61 secondary ANN-BUS 17 type Signal Silence 16 outputs 56 Silence Inhibit 58 zone 52 Silence Inhibit Timer 82 Silenceable Output 57 silenceable circuits synchronized signals 58 wiring requirements 28 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 127 Class A IDC 30 Class A NAC 30 combination waterflow/supervisory 25 IDC 24 NAC 26 nonpower-limited 28 power-limited 28 UL requirements 28 Zone type 52 Zone Setup Maintenance Level 73 zone type inputs 52 PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...
  • Page 128 Z–Z Index PDRP-2001 Series Manual — P/N 53043:E4 7/28/2016...

  • Page 129: Pdrp-2001, Pdrp-2001E, Pdrp-2001C

    PDRP-2001, PDRP-2001E, PDRP-2001C PRE-ACTION/DELUGE CONTROL PANEL Operating Instructions NORMAL - Only AC POWER is illuminated green. PANEL KEY - The key to open the panel can be found at the following All other indicators are off. LCD display will read SYSTEM ALL location: NORMAL.
