Page 2

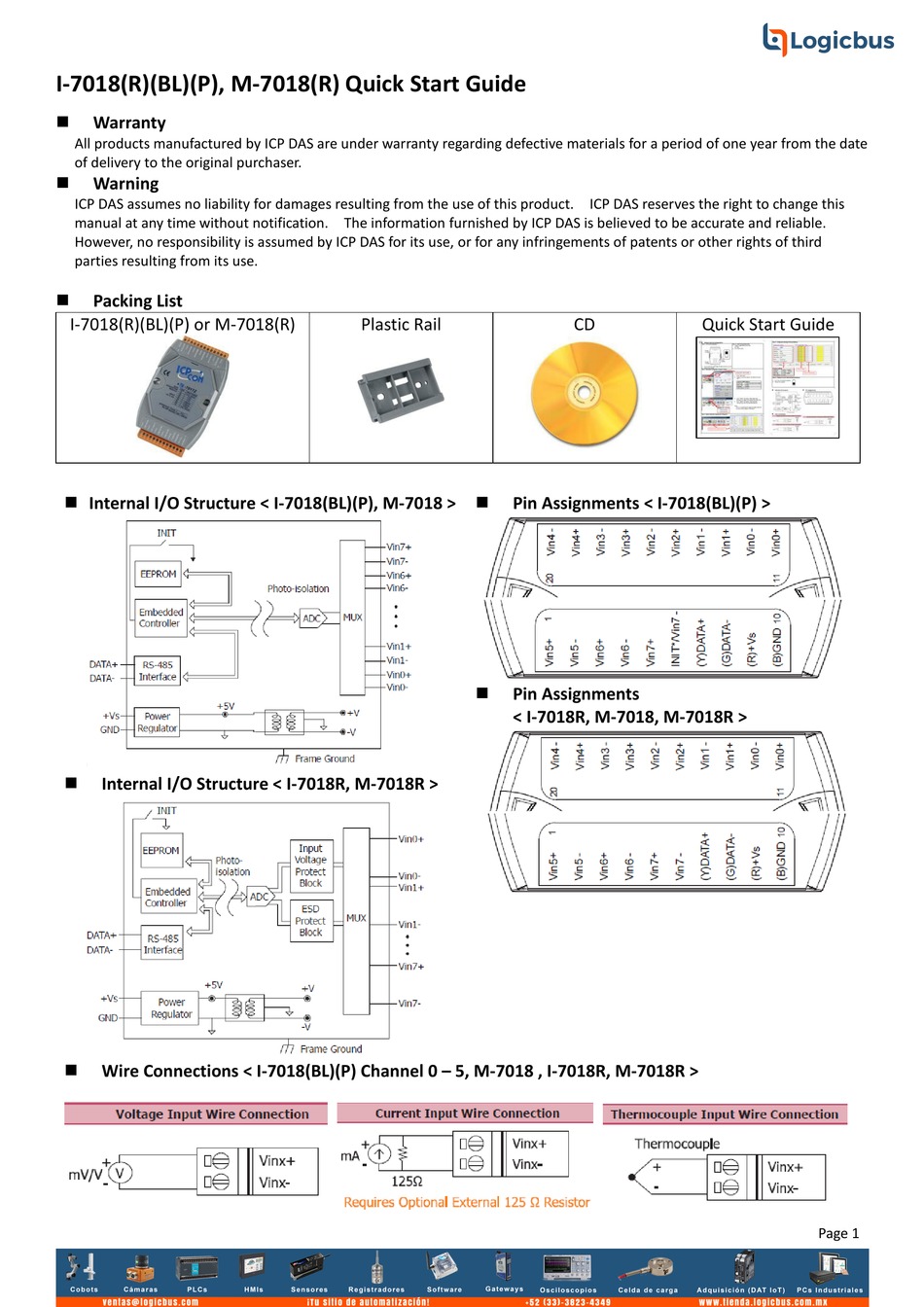

Wire Connections < I-7018(BL)(P) Channel 6 – 7 > Modbus Table (M-7018, M-7018R only) Address Description Address Description 30001 ~ Analog input value of channel 0 to 7 40488 Modbus response delay time in ms, 30008 valid range: 0 ~ 30...
Page 3
Module test and configuration Step 1: INIT switch Operation Step 2: Install & Run DCON Utility 1. Please Install DCON Utility first You can find the software in the CD. CD path: <Driver>:\napdos\driver\dcon_utility\ Web link: http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/ 2. Run DCON utility 1.
Page 4
ICP DAS provide DCON Utility to configure I-7000 and M-7000 modules. Please download the last version from: http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/ Q3. How to measure the current? I-7018(R)(BL)(P) and M-7018(R) require optional external resistance (125Ω) for current measurement. Please refer wired connections diagram. And then select a suitable input range by DCON Utility.
