I-7017R, M-7017R Quick Start Guide
Warranty
All products manufactured by ICP DAS are under warranty regarding defective materials for a period of one year from the date
of delivery to the original purchaser.
Warning
ICP DAS assumes no liability for damages resulting from the use of this product. ICP DAS reserves the right to change this
manual at any time without notification. The information furnished by ICP DAS is believed to be accurate and reliable.
However, no responsibility is assumed by ICP DAS for its use, or for any infringements of patents or other rights of third
parties resulting from its use.

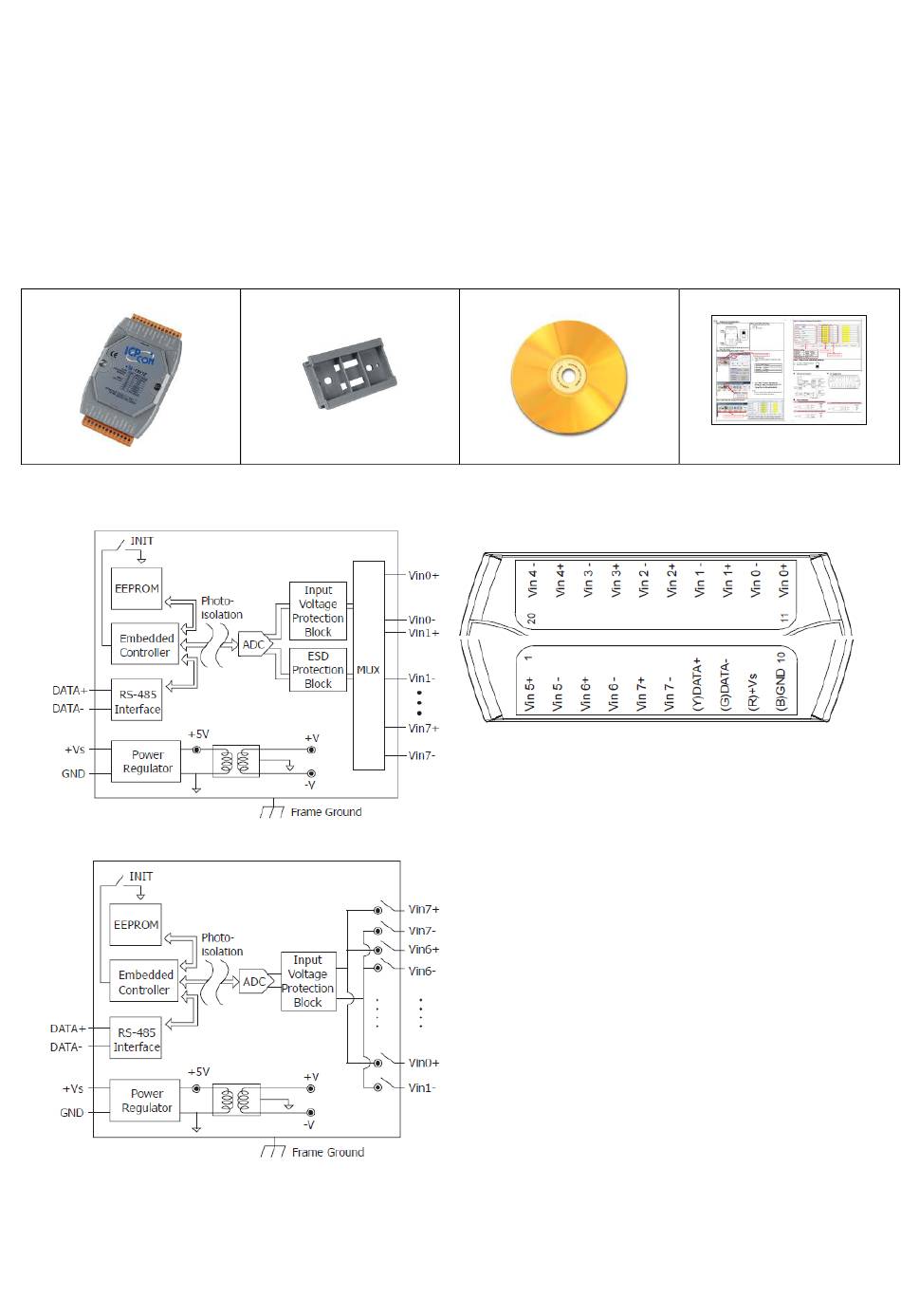

Packing List

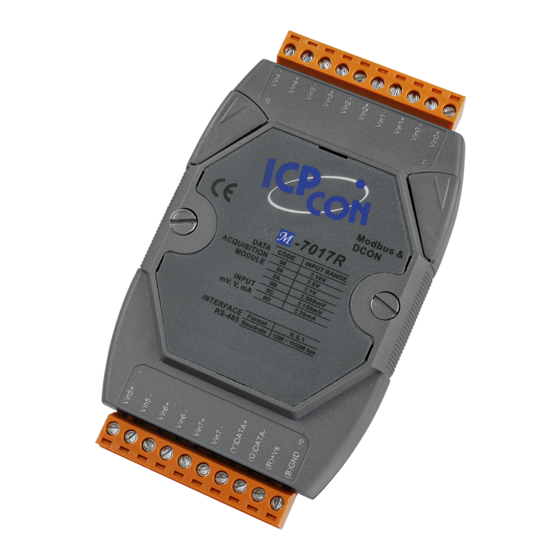

I-7017R or M-7017R
Internal I/O Structure < I-7017R >
Internal I/O Structure (M-7017R)
Plastic Rail
CD
Pin Assignments < I-7017R, M-7017R >
Quick Start Guide
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA I-7017R
Summary of Contents for ICP DAS USA I-7017R
- Page 1 However, no responsibility is assumed by ICP DAS for its use, or for any infringements of patents or other rights of third parties resulting from its use. Packing List I-7017R or M-7017R Plastic Rail Quick Start Guide Internal I/O Structure < I-7017R > Pin Assignments < I-7017R, M-7017R > Internal I/O Structure (M-7017R) Page 1...
- Page 2 Wire Connections < I-7017R, M-7017R > Modbus Table (M-7017R only) Address Description Address Description 10129 ~ Over/under range status of channel 0 40488 Modbus response delay time in ms, 10136 to 7 for 4 ~ 20mA or 0 ~ 20mA ranges...
- Page 3 Module test and configuration Step 1: INIT switch Operation Step 2: Install & Run DCON Utility 1. Please Install DCON Utility first You can find the software in the CD. CD path: <Driver>:\napdos\driver\dcon_utility\ Web link: http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/ 2. Run DCON utility 1.
- Page 4 2. Keep the module running more than 30 minutes to warm-up. Q4. How to measure the current? I-7017R and M-7017R require optional external resistance (125Ω) for current measurement. Please refer wired connections diagram. And then select a suitable input range by DCON Utility.
