Summary of Contents for Samson STAGE 266 HT6
- Page 1 T R U E D I V E R S I T Y W I R E L E S S S Y S T E M W I R E L E S S S Y S T E M •...
-
Page 2: Important Safety Information
Important Safety Information AVIS RISQUE DE CHOC ÉLECTRONIQUE - NE PAS OUVRIR CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous volt- age”... -
Page 3: Important Safety Instructions
WARNING TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT AND FULLY INSERT. - Page 4 ATTENTION: Pour éviter tout risque d’électrocution ou d’incendie, ne pas exposer cet appareil à la pluie ou à l’humidité. Pour éviter tout risque d’électrocution, ne pas ôter le couvercle ou le dos du boîtier. Cet appareil ne con- tient aucune pièce remplaçable par l'utilisateur. Confiez toutes les réparations à un personnel qualifié. Le signe avec un éclair dans un triangle prévient l’utilisateur de la présence d’une tension dangereuse et non isolée dans l’appareil.
- Page 5 PRECAUCION: Para reducir el riesgo de incendios o descargas, no permita que este aparato quede expuesto a la lluvia o la humedad. Para reducir el riesgo de descarga eléctrica, nunca quite la tapa ni el chasis. Dentro del aparato no hay piezas susceptibles de ser reparadas por el usuario.
- Page 6 Copyright 2010, Samson Technologies Corp. Printed January, 2010 v1. Samson Technologies Corp. 45 Gilpin Avenue Hauppauge, New York 11788-8816 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 631-784-2201 www.samsontech.com...
- Page 7 Table of Contents Guided Tour - CR266 Receiver Guided Tour - HT6 Transmitter Setting Up and Using Your Stage 266 System Specifications...
- Page 8 Guided Tour - SR266 - The antenna mountings allow full rotation for optimum placement. In normal operation, both Antenna 1 (the antenna on the left ) and Antenna 2 (the antenna on the right) should be placed in a vertical position. Both antennas can be folded inward for convenience when transporting.
- Page 9 Guided Tour - SR266 5: DC input - Connect the supplied 12 volt, 200 mA power adapter here, using the strain relief as shown in the illustration below. WARNING: The substitution of any other kind of power adapter can cause severe damage to the SR266 and will void your warranty. Using the strain relief: Gather up a loop of wire and pass it through the strain relief, then pass the adapter plug through the loop in order to create a knot.

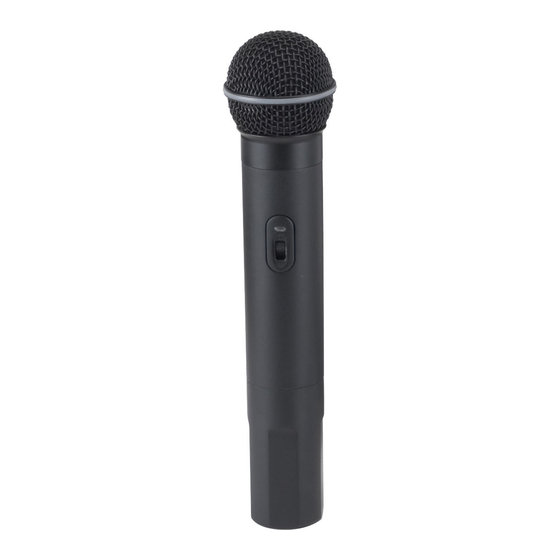

- Page 10 Guided Tour - HT6 1: Audio on-off switch - When set to the “up” position, audio signal is transmitted. When set to the “down” position, the audio signal is muted. Because the carrier signal remains during muting, no “pop” or “thud” will be heard. Note that turning this off does not turn off the transmitter power—it is simply a way to temporarily mute the transmission of audio signal.
- Page 11 Draft v0.1 Introduction Congratulations on purchasing the Samson Stage 266 Dual Microphone Wireless System! The Stage 266 system is the perfect solution for any application requiring two, high quality, wireless microphones in an easy to use, compact package. The system features the SR266 dual channel receiver with individual and mixed outputs.
-
Page 12: Overall System Specifications
6. Turn the VOLUME controls on the SR266 fully clockwise. While singing or speaking into the HT6 transmitters slowly raise the input volume controls on your mixer, amplifier, or karaoke system until the desired level is reached. OVERALL SYSTEM SPECIFICATIONS Operating Frequency VHF 173.80 MHz to 215.2 MHz Number of Channels Fixed channel Frequency Stability... - Page 13 1797 FCC Rules and Regulations Samson wireless systems are type accepted under FCC rules parts 90, 74 and 15. Licensing of Samson equipment is the user’s responsibil- ity and licensability depends on the user’s classi cation, application and frequency selected.
- Page 14 Samson Technologies Corp. 45 Gilpin Avenue Hauppauge, New York 11788-8816 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 631-784-2201 www.samsontech.com...
