Program Running Screen

Programs › Driver Control › Run
The Driver Control program is now running on the Robot Brain; the table on
contains the default mapping between the buttons on the Controller and the Smart Ports on
the Robot Brain.
While a program is running, a clock will be displayed showing the total time that the program
has been running. To stop the program, press the Check button. After stopping the program
the Check Button will run it again. To exit the program, press the X button. To see the current
status of the Robot Brain and Controller, press either the Up or Down button.

VEX Controller Status

Programs › Driver Control › Run › Up or Down Button
Sometimes when running a program, it is helpful to see the current status of a particular
motor, sensor, or Controller button. While a program is running, pressing the Up or Down
button will cause it to cycle through up to four status screens. To return to the program
running screen, continue pressing Up or Down buttons to cycle through the available screens.
One screen will display the current values of the buttons and the joystick axes on the
Controller. When buttons E, F, R or L are pressed, a corresponding arrow will be displayed
next to those letters. The numbers next to joystick axis A, B, C, and D show the current
analog joystick value.

Smart Device Status

From one to three additional screens will be displayed showing the status of all connected
devices, depending on how many Smart Motors or Sensors are currently connected to the
Robot Brain.

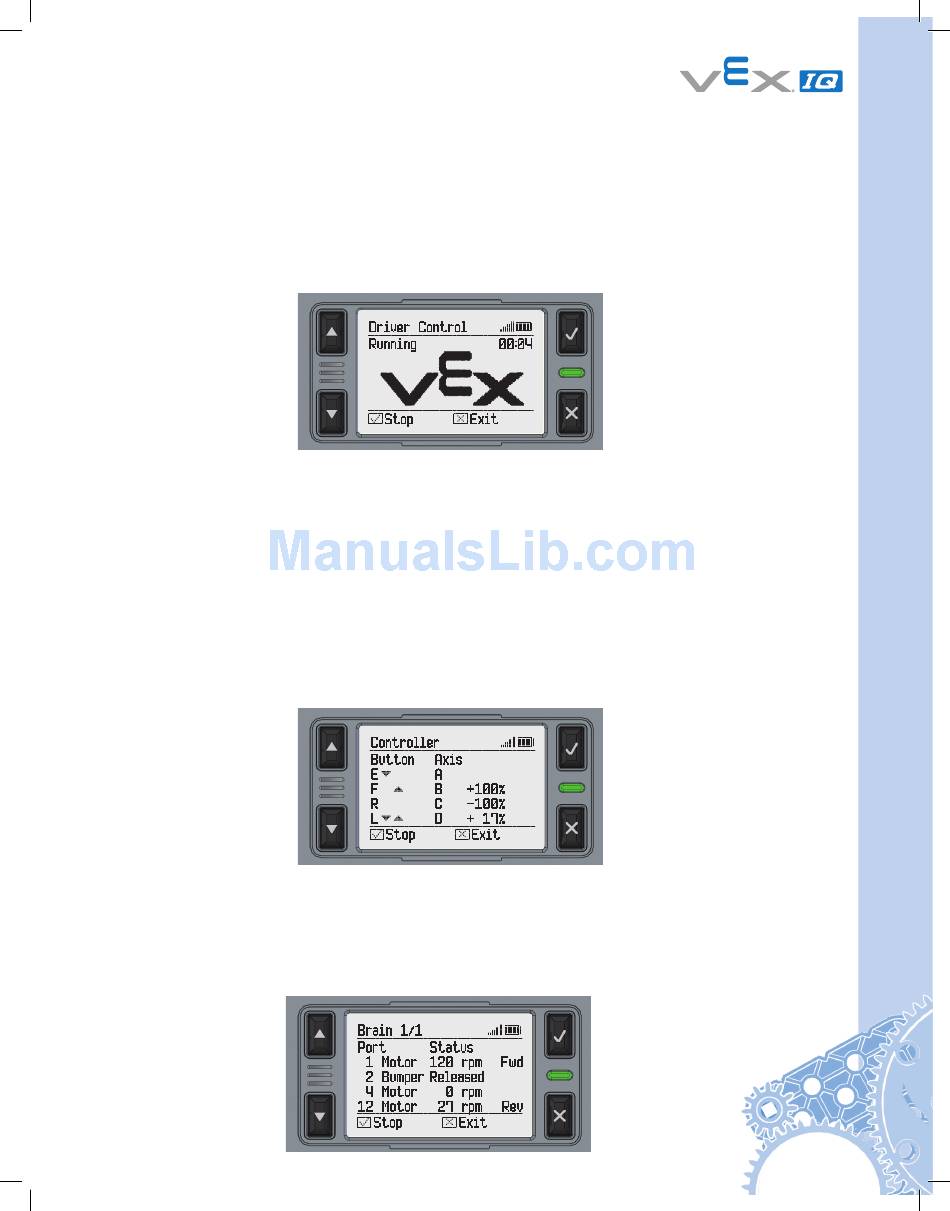

Driver Control
Running 00:04
Stop Exit
Controller
Button Axis
E A
F B +100%
R C -100%
L D + 17%
Stop Exit
Brain 1/1
Port Status
1 Motor 120 rpm Fwd
2 Bumper Released
4 Motor 0 rpm
12 Motor 27 rpm Rev
Stop Exit
