Sony SA-WSF200 Service Manual

Hide thumbs

Advertisement

Table of Contents
SERVICE MANUAL
Ver. 1.1 2008.08

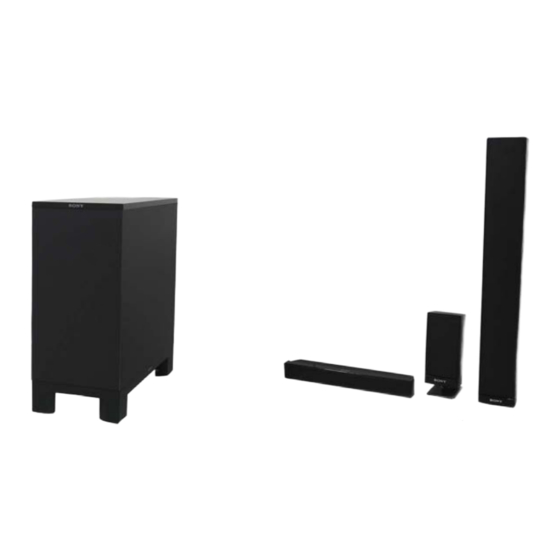

Photo: SA-WSF500
• SA-WFS200 is the active subwoofer in DAV-F200.
• SA-WFS500 is the active subwoofer in DAV-F500.
• SS-CTF500 is the center speaker in DAV-F500.
• SS-TSF200 is the front speaker in DAV-F200.
• SS-TSF500 is the front and Surround speaker in DAV-F500.
• SS-F500 is composed of four SS-TSF500, one SS-CTF500, four Speaker stands and Wall mounting brackets. (for DAV-F500)
Note:
• When SA-WSF200 is checked, it is necessary to connect it with HCD-F200.
• When SA-WSF500 is checked, it is necessary to connect it with HCD-F500.
Speakers
Front speaker (SS-TSF200)
Speaker system
2-Way 2-Driver speaker
system Bass reflex,
Magnetically Shielded
Speaker unit
Woofer: 65 mm cone type
Tweeter: 40 mm cone type
Rated impedance
3 ohms
Dimensions (approx.)
95 mm × 185 mm × 80 mm
(w/h/d)
95 mm × 215 mm × 105
mm (w/h/d) with stand
Mass (approx.)
0.85 kg
0.9 kg with stand
Subwoofer (SA-WSF200)
Amplifier Section
Power output (rated)
108 W + 108 W (at 3 ohms,
1 kHz, 1% THD)
RMS output power (reference)
FL/FR/C*: 141 W
(per channel at 3 ohms,
1 kHz, 10% THD)
Subwoofer*: 141 W (at 3
ohms, 80 Hz, 10% THD)
* Depending on the decoding mode settings and the
source, there may be no sound output.
Sony Corporation
9-889-149-02
2008H05-1
Audio&Video Business Group
©
2008.08
Published by Sony Techno Create Corporation
SS-CTF500/F500/TSF200/TSF500
Photo: SS-CTF500
Photo: SS-TSF200
SPECIFICATIONS
Power requirements:
Thai model:
220 V AC, 50/60 Hz
Other models:
220 V – 240 V AC, 50/60 Hz
Power consumption
On: 105 W
Standby: 0.3 W (at the
Power Saving mode)
Speaker system
Subwoofer Bass reflex
Speaker unit
160 mm cone type
Rated impedance
3 ohms
Dimensions (approx.)
205 mm × 460 mm × 475
mm (w/h/d)
Mass (approx.)
13 kg
Speakers
Front and Surround speaker (SS-TSF500)
Speaker system
2-Way 3-Driver speaker
system Bass reflex,
Magnetically Shielded
Speaker unit
Woofer: 65 mm cone type
× 2
Tweeter: 50 mm cone type
Rated impedance
3 ohms
Dimensions (approx.)
95 mm × 635 mm × 80 mm
(w/h/d)
305 mm × 1,205 mm × 305
mm (w/h/d) with stand
Mass (approx.)
1.8 kg
5.3 kg with stand
SA-WSF200/WSF500/
Canadian Model
Australian Model
Russian Model
SA-WSF500/SS-CTF500/F500/TSF500
Singapore Model
Photo: SS-TSF500
SS-CTF500/F500/TSF200/TSF500
Center speaker (SS-CTF500)
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
ACTIVE SUBWOOFER
SS-CTF500/TSF200/TSF500
SPEAKER SYSTEM
E Model
AEP Model
UK Model
SA-WSF200/SS-TSF200
Thai Model
SA-WSF200/WSF500/
Full range, Magnetically
Shielded
30 mm × 50 mm cone type
3 ohms
381 mm × 48 mm × 62 mm
(w/h/d)
0.5 kg
– Continued on next page –
