Air-operated diaphragm pump
Hide thumbs Also See for husky 1050p:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Repair Parts, User Manual

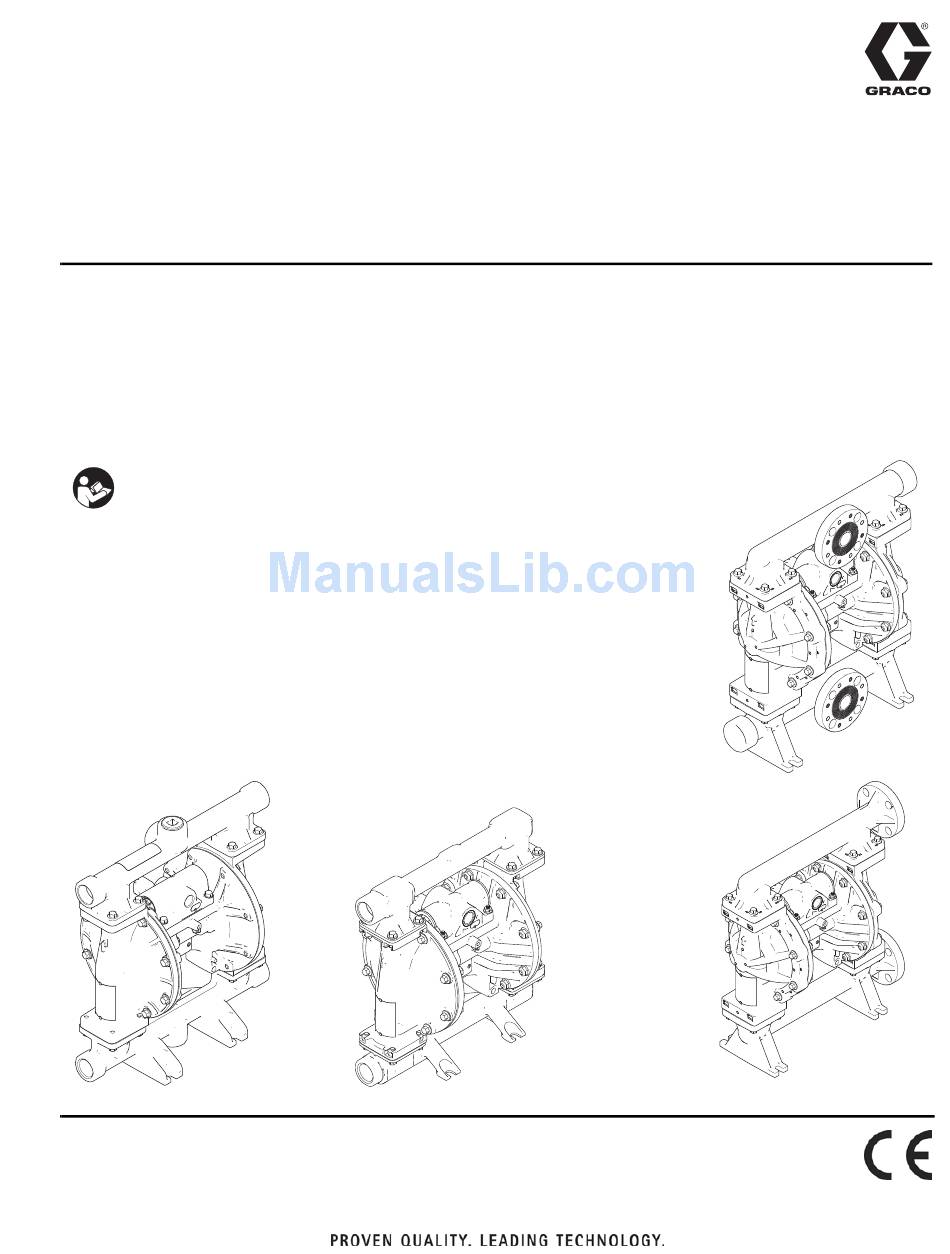

Operation
®
Husky
Diaphragm Pump
1-inch pump with modular air valve for fluid transfer applications.
For professional use only.
See page 4 for model information, including approvals.
125 psi (0.86 MPa, 8.6 bar) Maximum Fluid Working Pressure
125 psi (0.86 MPa, 8.6 bar) Maximum Air Input Pressure
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
1050A
Aluminum
ti13946a
1050 Air-Operated
1050S
Stainless Steel
1050H
Hastelloy
1050P
Polypropylene
1050C
Conductive
Polypropylene
1050F
PVDF
Center
Flange
End
Flange
ti14342a
312877S
EN
ti13843a
ti13844a
