Icom IC-F1000 Service Manual page 7

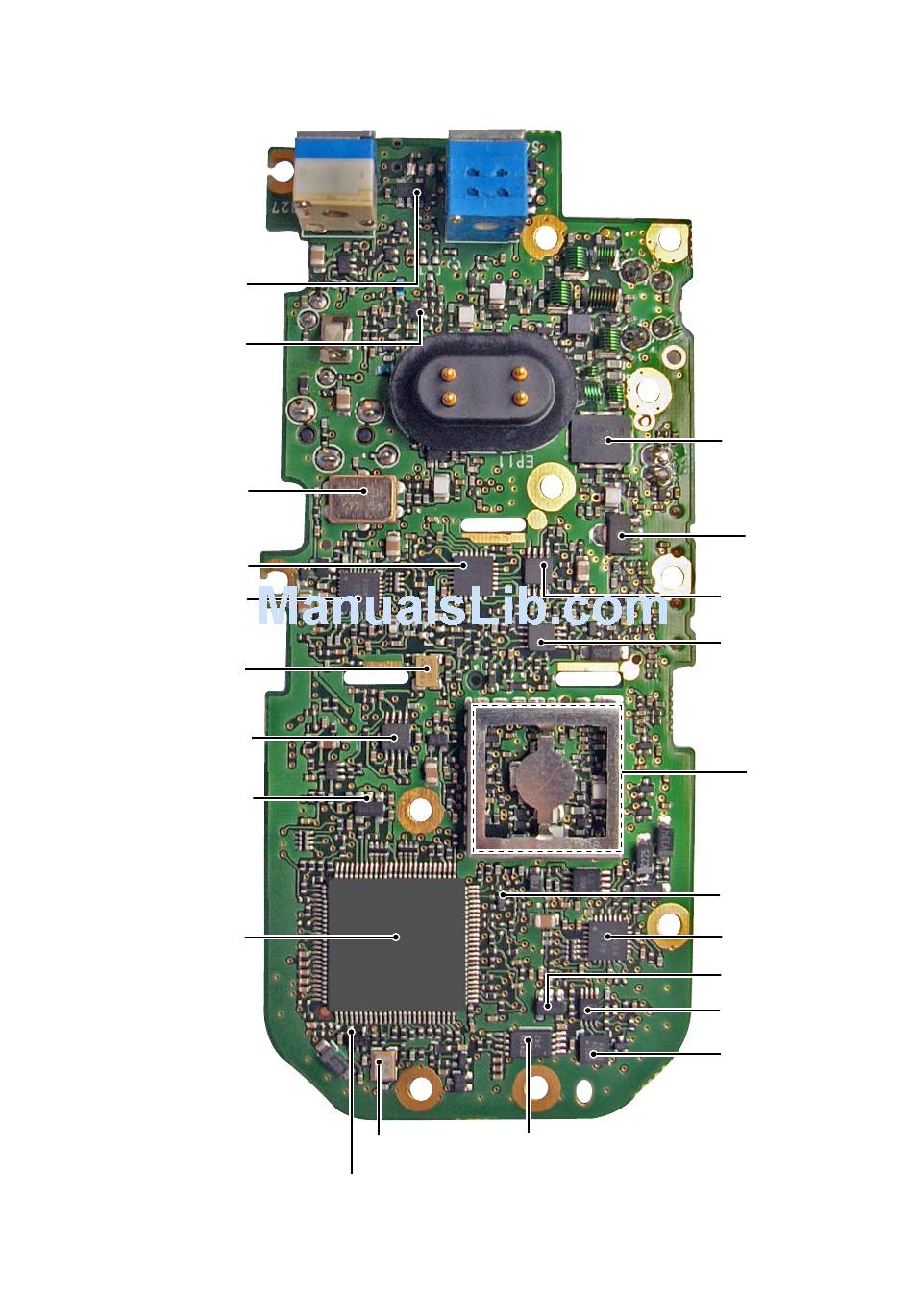

• MAIN UNIT
(BOTTOM VIEW)
5 V REGULATOR
(IC20)
RF AMP
(Q39)
1ST IF FILTER
(FI1)
D/A CONVERTER
(IC10)
IF IC
(IC16)
REFERENCE
FREQUENCY
OSCILLATOR
(X3)
TONE LPF
(IC5)
5 V REGULATOR
(IC6)
CPU
(IC9)
CPU CLOCK
(X2)
RESET IC
(IC8)
2-2
EEPROM
(IC13)
POWER AMP
(Q38)
DRIVE AMP
(Q36)
LPF/SUMMING AMP
(IC11)
AF BUFF/LPF
(IC7)
VCO
LED DRIVER
(Q41)
PLL IC
(IC15)
3 V REGULATOR
(IC24)
LOGIC CONVERTER
(IC23)
ACCELEROMETER IC
(IC22)
