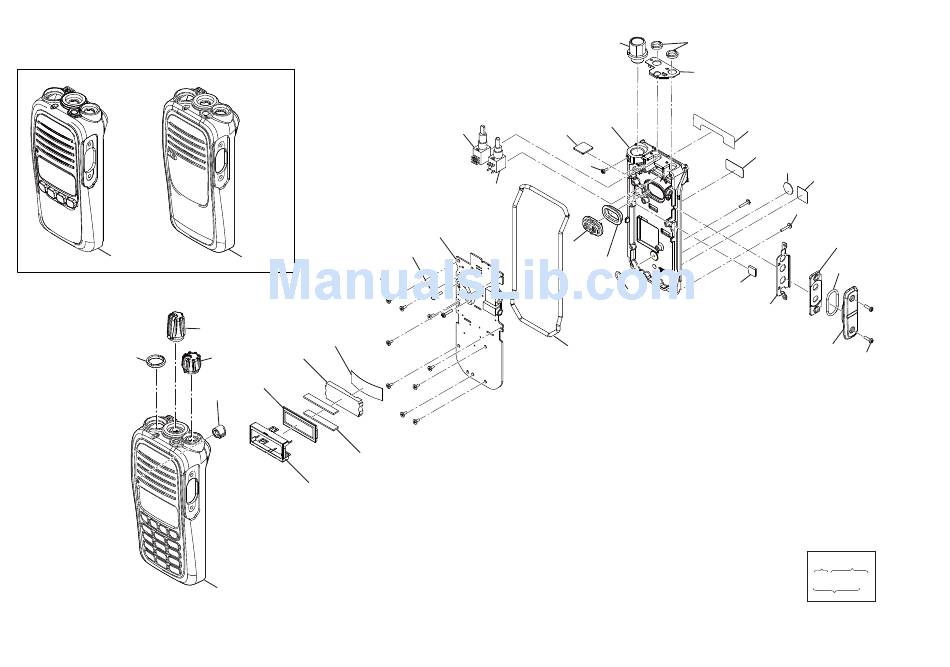

Icom IC-F1000 Service Manual page 29

IC-F1000S:
IC-F1000:
MP2(CHASSIS)
MP2(CHASSIS)
(8210029790)
(8210029770)
MP24(CHASSIS)
(8610014710)
MP19(CHASSIS)
MP25(CHASSIS)
(8830003440)
(8610014720)
DS2(MAIN)
(5030003821)
MP12(CHASSIS)
(8930089280)
IC-F1000T:
MP2(CHASSIS)
(8210029780)
7-3
S4(MAIN)
(2250000900)
MAIN UNIT
MP45(CHASSIS)×2
(8810008761)
MP41(CHASSIS)×9
(8810008971)
MP9(MAIN)
(8930070080)
MP8(MAIN)
(8210020571)
EP13(MAIN)×2
MP7(MAIN)
(8930069481)
J1(CHASSIS)
(6910021491)
MP1(CHASSIS)
(8010023040)
ANT UNIT
MP44(CHASSIS)
(8810009511)
R27(MAIN)
(7210003700)
EP30(MAIN)
(6910024510)
MP6(CHASSIS)
(8930089270)
MP15(CHASSIS)
(8930088670)
MP22(CHASSIS)
(8930089260)
MP34(CHASSIS)
(8830001701)
MP11(CHASSIS)
(8930089300)
MP30(CHASSIS)
(8930090130)
MP46(CHASSIS)
(8310083950)
MP16(CHASSIS)
(8930084870)
MP50(CHASSIS)
(8310079530)
MP40(CHASSIS)×2
(8810010850)
MP7(CHASSIS)
(8930089240)
MP39(CHASSIS)
(8930085330)
MP51(CHASSIS)
(8930090110)
MP6(CHASSIS)
(8930089290)
MP49(CHASSIS)
(8210029630)
MP43(CHASSIS)x2
(8810007391)
Legend:
Ref. No.
Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
