Icom IC-F1000 Service Manual page 5

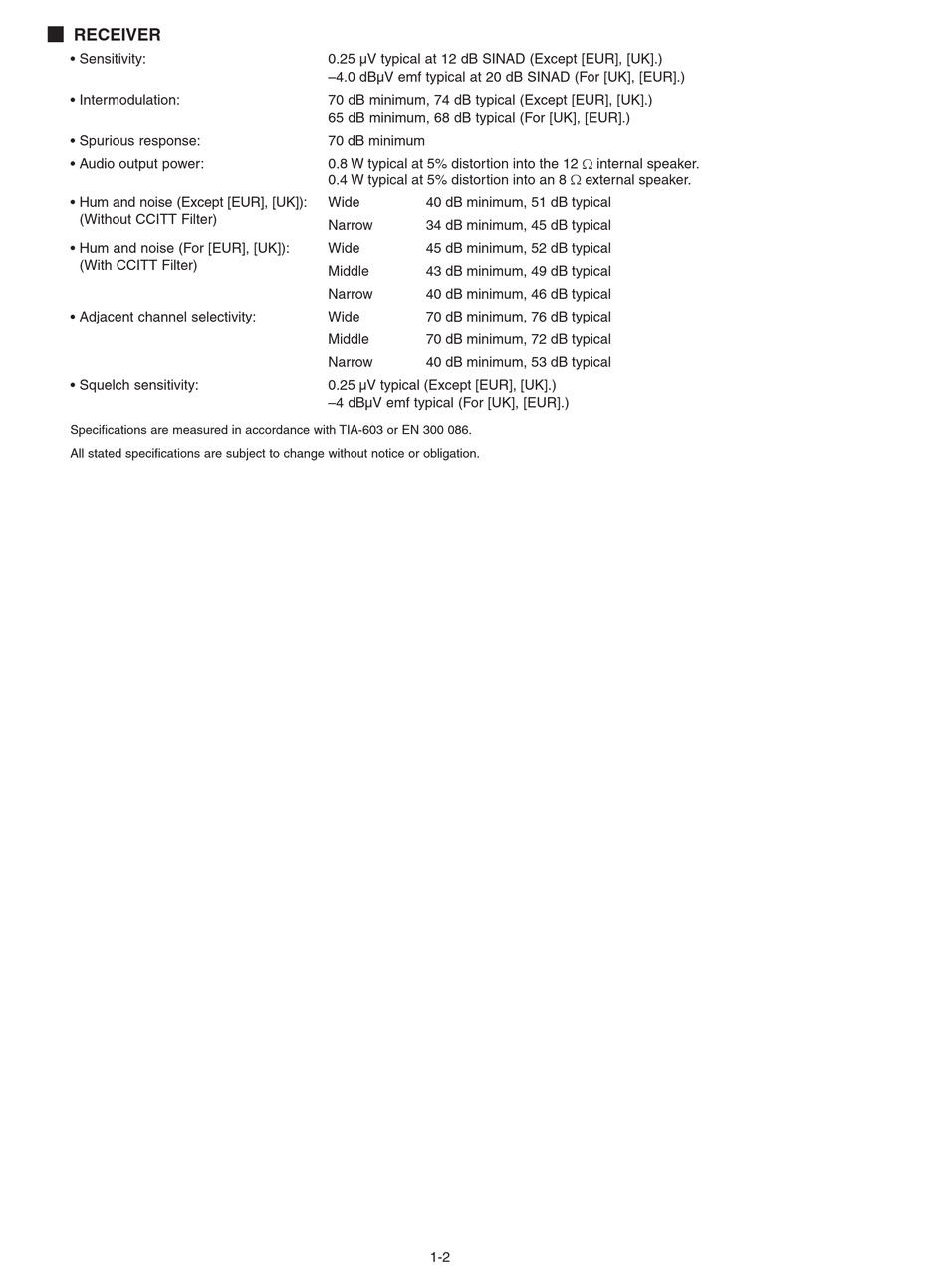

M RECEIVER
• Sensitivity:
• Intermodulation:
• Spurious response:
• Audio output power:
• Hum and noise (Except [EUR], [UK]):
(Without CCITT Filter)
• Hum and noise (For [EUR], [UK]):
(With CCITT Filter)
• Adjacent channel selectivity:
• Squelch sensitivity:
Specifications are measured in accordance with TIA-603 or EN 300 086.
All stated specifications are subject to change without notice or obligation.
0.25 µV typical at 12 dB SINAD (Except [EUR], [UK].)
–4.0 dBµV emf typical at 20 dB SINAD (For [UK], [EUR].)
70 dB minimum, 74 dB typical (Except [EUR], [UK].)
65 dB minimum, 68 dB typical (For [UK], [EUR].)
70 dB minimum
0.8 W typical at 5% distortion into the 12  internal speaker.
0.4 W typical at 5% distortion into an 8  external speaker.
Wide 40 dB minimum, 51 dB typical
Narrow 34 dB minimum, 45 dB typical
Wide 45 dB minimum, 52 dB typical
Middle 43 dB minimum, 49 dB typical
Narrow 40 dB minimum, 46 dB typical
Wide 70 dB minimum, 76 dB typical
Middle 70 dB minimum, 72 dB typical
Narrow 40 dB minimum, 53 dB typical
0.25 µV typical (Except [EUR], [UK].)
–4 dBµV emf typical (For [UK], [EUR].)
1-2
