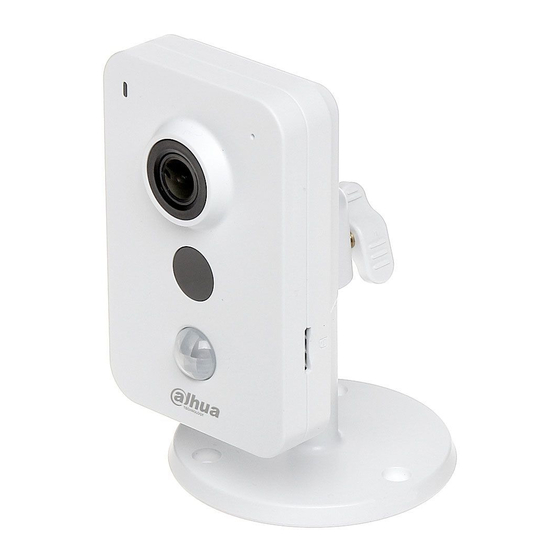

Dahua K Series Cube Network Camera Quick Start Guide
V 1.0.0
Dahua Technology CO., LTD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dahua K Series

Summary of Contents for Dahua K Series

  • Page 1 Dahua K Series Cube Network Camera Quick Start Guide V 1.0.0 Dahua Technology CO., LTD...

  • Page 2: Packing List

    Packing List Device × 1 QSG ×1 Power Adapter ×1 Screw Package ×1 Installation Position Map ×1...

  • Page 3: Product Appearance

    Product Appearance Figure 2-1 Figure 2-2 Figure 2-3 Please refer to the following sheet for more details about each port. Name Network port Reset/WPS button Digital input/output Power port Built-in speaker Micro SD card slot Indicator light...
  • Page 4 Name Built-in MIC IR LED Sheet 2-1 Note: For reset, long press for 8 seconds and then the light off; For WPS, one quick press. Please refer to the following sheet for more details about status of indicator light. Indicator light status Device status Red light normally on Booting...

  • Page 5: Operate By Easy4Ip App

    Operate by Easy4ip APP 1. Power on the device with power adapter. Connect your smart phone to your WiFi network. Scan the “Easy4ip APP” QR on the packing box, download and install the Easy4ip APP. Open Easy4ip APP (take IOS as an example), tap login to login the APP, see Figure 3-1. Figure 3-1 Tap “register”...
  • Page 6 Figure 3-2 Tap “+” to add devices. Figure 3-3 Choose “Wireless”.
  • Page 7 Figure 3-4 Name the camera and scan the QR code on camera. Figure 3-5...
  • Page 8 Input the Wi-Fi password. Figure 3-6 Waiting for 60s to finish the Wi-Fi connection.
  • Page 9 Figure 3-7 Note: If you want to change the Wi-Fi signal, please reset the camera to factory default and repeat step 6-9; Figure 3-8...

  • Page 10: Operate By Dmss App

    Operate by DMSS APP Step 1 Power on the camera. Step 2 Connect iphone to a WiFi signal. Step 3 Open DMSS (downloaded from APP Store), choose Device Manager. Figure 4-1 Step 4 Click “+”. Figure 4-2 Step 5 Choose “WiFi configuration”.
  • Page 11 Figure 4-3 Step 6 Input a device name and scan the QR code on camera, then “next”. Figure 4-4 Step 7 Input the WiFi password, then “next”.
  • Page 12 Figure 4-5 Step 8 Connection succeeds. Figure 4-6 Figure 4-7 Figure 4-8 Note: Please try again or check the WiFi password if it failed. The WiFi configuration will be closed if activating WPS function, Please reset the device if you still need to configure WiFi via DMSS App.

  • Page 14: Device Installation

    Device Installation Important Please make sure the installation surface can min support the 3X weight of the camera and the bracket. Figure 5-1 Step 1 Paste the installation map on the installation surface such as wall, ceiling or the wood. Step 2 Dig holes in the installation surface according to the installation map.
  • Page 15 If there is any uncertainty or controversy, please refer to the final explanation of us.  Please visit our website or contact your local service engineer for more information. Dahua Technology Co., Ltd Address：No.1199 Bin’an Road, Binjiang District, Hangzhou, PRC. Postcode: 310053...
