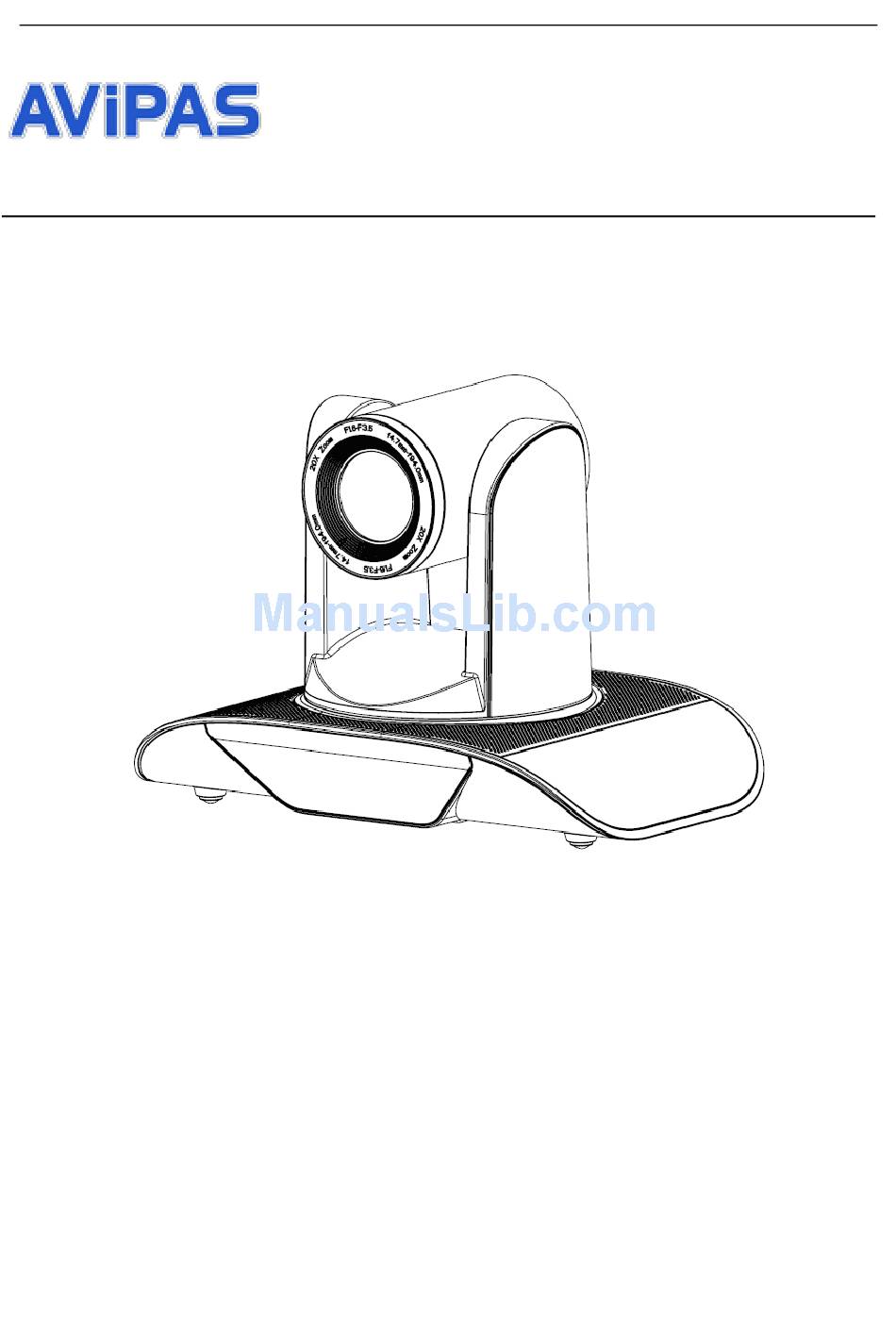

Model: AV-1361
H.264 HD Video Conferencing Camera

User Manual

V1.1
(English)
Please read this User Manual
throughout before using.
www.avipas.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-1361 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avipas AV-1361

  • Page 1: User Manual

    [Type here] Model: AV-1361 H.264 HD Video Conferencing Camera User Manual V1.1 (English) Please read this User Manual throughout before using. www.avipas.com...
  • Page 2 [Type here] Preface Thank you for using this HD Video Conferencing Camera. This manual introduces the functions, installation process and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product should only be used under the specified conditions in order to avoid any damage to the camera: ...
  • Page 3 [Type here] Attentions • Electric Safety Installation and operation must be in accord with electric safety standard. • Caution to transport Avoid stress, vibration or soakage during transport, storage and installation. • Polarity of power supply The power supply of the product is ±12V, the max electrical current is 2A. Polarity of the power supply plug is shown in the drawing below.
  • Page 4: Table Of Contents

    [Type here] Contents 1. Fast Installation ................................. 1 1.1 Camera Interface Illustration .......................... 1 1.2 Power On ................................ 1 1.3 Video Output ..............................1 1.4 Bracket Mounting ............................2 2. Product Overview ..............................3 2.1 Product Introduction ............................3 2.2 Main Features ..............................5 2.3 Technical Specifications ..........................
  • Page 5: Fast Installation

    Note: If preset 0 is set, the camera automatically moves to the preset 0 position upon powering on. 1.3 Video output AV-1361 has 3 options for video output: LAN, DVI (HDMI) and 3G-SDI. 1) Video output from LAN. Network cable connection port: AV-1361- No.14 in Figure1.1.
  • Page 6: Bracket Mounting

    DVI video cable connection: AV-1361- No.13 in Figure1.1. b. Connect the camera and the monitor via DVI video cable; video output is available after camera initialization. 3) 3G-SDI video output a. 3G-SDI video cable connection: AV-1361- No.12 in Figure1.1.
  • Page 7: Product Overview

    2) Upside-down installation steps 2. Product overview 2.1 Product introduction 2.1.1 Product model Model NO.: AV-1361.
  • Page 8 Model NO.X—XXX—XXX—XX IR ---IR remote controller WR---wireless remote controller AV-1361---standard interface (optional: 5G wifi function) 20x optical zoom lens S---1080P60 downward compatibility M---1080P30 downward compatibility Please refer to the corresponding features in this manual. *5G wifi is optional for AV-1361.
  • Page 9: Main Features

    Supports VISCA control protocol through IP port. 9) RS-232 cascade function: series supports RS-232 cascade function which is convenient for installation. AV-1361 10) 255 presets positions: up to 255 presets (10 presets by remoter). 11) Wide application: Tele-education, Lecture capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and emergency command systems.
  • Page 10: Technical Specifications

    Specific configuration is described in detail in the web configuration section. 2.3 Technical Specifications Model AV-1361 Camera Parameter Optical Zoom 20X, f = 4.7~94mm 1/2.8” high quality HD CMOS sensor Sensor 16: 9 2.07 megapixel Effective Pixels 1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97 Video Format View Angle 2.9°(tele)--55.4°(wide)
  • Page 11 Consumption 12W (Max) Store Temperature -10ºC~+60ºC Store Humidity 20% - 95% Working Temperature -10ºC~+50ºC Dimension 258mmX172mmX168mm Weight 1.54KG Remote Operation (IP) Remote Upgrade, Reboot and Reset Accessory Power supply, RS232 control cable, Remoter, Manual, Warranty card...
  • Page 12: Interface Instructions

    AV-1361 model Bottom DIP Switch diagram shows as below in Figure 2.4. Figure 2.4 Bottom DIP Switch diagram Two DIP switches of AV-1361 model are set either ON or OFF to select different modes of operation as shown in Table 2.2.
  • Page 13 2) Only when the rotary dial code is turned to F is the video format displayed on the menu item. 3) If the rotary switch is set to 0-E, the video format is determined by rotary switch setting. 2.4.4 RS-232 interface 1) RS-232 interface specifications for AV-1361 model is shown as below: Computer or keyboard to camera connections Camera WindowsDB-9 1.DTR...
  • Page 14 4) VISCA network connections are shown as below: Camera cascade connections Camera 1 Camera 2 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.OPEN 8. NC 8.OPEN Note: AV-1361 has RS232 input and output interface, so cascade connection is available.
  • Page 15: Application Instructions

    3. Application Instruction 3.1 Video Output 3.1.1 Power-On Initialization Configuration Upon connecting to the power, camera will enter initialization configuration. IR indicator light will be flashing. When the camera returns to the HOME position (center position for P/T), and lens finish zooming in/out, the auto-testing is complete.
  • Page 16: Remote Control

    3.2 Remote Control 3.2.1 Key Illustrations 1. Standby key After 3-sec long press, the camera will enter the standby mode. Long press the key again for 3 sec, the camera will initialize again and return back to HOME position (Note: when power-on mode is turned on and Preset 0 is set, if there is no operation after 12 sec, the camera will automatically rotate to the specified preset position).
  • Page 17 13) 【#】 + 【#】 + 【5】 : Switch the video format to 720P50 14) 【#】+【#】+【6】: Switch the video format to 1080P30 15) 【#】 + 【#】 + 【7】 : Switch the video format to 1080P25 16) 【#】 + 【#】 + 【8】 : Switch the video format to 720P30 17) 【#】...
  • Page 18: Menu Settings

    Focus (near): press “【focus+】” key (valid only in manual focus mode) Focus (far): press “【focus-】key (valid only in manual focus mode) Auto focus: support Manual focus: support Press and hold the key, the action of focus will keep adjusting. It stops as soon as the key is released. 5) BLC Settings BLC ON/OFF: support 6) Presets Setting, Running and Clearing...
  • Page 19 MENU =============== Language English (Setup) (Camera) (P/T/Z) (Video Format) (Version) (Restore Default) [← →]Change Value [↑↓]Select [Menu]Back [Home]OK LANGUAGE: language setting, Chinese / English SETUP: system setting CAMERA OPTION: camera setting PTZ OPTION: pan/tilt setting VERSON: camera version setting Restore Default: reset setting [↑↓] Select: to select menu [←...
  • Page 20 SETUP =============== Protocol Auto Visca Address Visca Address Fix PELCO-P Address PELCO-D Address Baud rate 9600 [← →]Change Value [↑↓]Select [Menu]Back [← →]修改 [↑↓]选择 [菜单]返回 PROTOCOL: VISCA/Pelco-P/Pelco-D/Auto Visca ADDR: VISCA=1~7; Pelco-P=1~255; Pelco-D =1~255 Baud rate: 2400/4800/9600/115200 Visca Address Fix: On/Off 3.3.3 Camera settings Move the pointer to the (CAMERA) in the Main Menu, click 【HOME】to enter the CAMERA menu as shown below.
  • Page 21 EXPOSURE: enter exposure setting COLOR: enter color setting Image: enter image setting Focus: enter focus setting Noise Reduction: enter noise reduction Style: default, standard, clear, bright and soft 1) EXPOSURE SETTINGS Move the pointer to the (EXPOSURE) in the Main Menu, click 【HOME】and enter the EXPOSURE menu as shown below.
  • Page 22 COLOR ================ WB Mode Auto RG Tuning BG Tuning Saturation 100% AWB Sensitivity [← →]Change Value [↑↓]Select [Menu]Back MODE: Auto, Manual, Shutter priority, Iris priority and Brightness priority RG Tuning: red gain tuning, -10~10 (only available when white balance mode is AUTO) BG Tuning: blue gain tuning, -10~10 (only available when white balance mode is AUTO) RG: red gain, 0~255 (only available when white balance mode is MANUAL) BG: blue gain,0~255 (only available when white balance mode is MANUAL)
  • Page 23 IMAGE =============== Brightness Contrast Sharpness Flip-H Flip-V B&W-Mode Color Gamma Default DZoom Close [← →]Change Value [↑↓]Select [Menu]Back 4) FOCUS Move the pointer to the (FOCUS) in the Menu, click 【HOME】and enter the FOCUS menu as shown below. FOCUS ================ Focus Mode Auto AF-Zone...
  • Page 24 NOISE REDUCTION ================ NR-2D NR-3D Dynamic Hot Pixel [← →]Change Value [↑↓]Select [Menu]Back 2D NOISE REDUCTION: auto, close, 1~7 3D NOISE REDUCTION: close, 1~8 Dynamic Hot Pixel: close, 1~5 3.3.4 P/T/Z Move the pointer to the (P/T/Z) in the Main Menu, click 【HOME】and enter the P/T/Z menu as shown below. P/T/Z =================...
  • Page 25 [Menu]Back [Home]OK Note: for AV-1361 series, only when rotary dial switch is F, is the video format displayed on the menu item. AV1361 supports up to 1080p30. Please exit the menu and restart the camera after modifications. Settings will be saved and recalled upon powering off/on.
  • Page 26 AF Version: display the focus version information Lens: display the lens zoom 3.3.7 RESTORE DEFAULT Move the pointer to the (RESTORE DEFAULT) in the Main Menu, click 【HOME】and enter the RESTORE DEFAULT menu as shown below. RESTORE DEFAULT ================= Restore Default? [←...
  • Page 27: Network Connection

    4. Network Connection 4.1 Connecting Mode Direct Connection: connect the camera and computer via Ethernet cable. Internet Connection Mode: connect the camera to Internet by router or switch. User can log in to control the device using browser. Note: To prevent video quality loss by unstable signal transmission due to poor connection of cables. please do not put the power and network cable in places where can be easily touched.
  • Page 28 Note: The IP address to be added cannot be the same as that of another computer or device. The existence of this IP address needs to be verified before adding. Click “Start”, and select “Operation”. Input cmd as picture shown below to verify whether the network segment has been successfully added.
  • Page 29: Ie Log In

    Click “OK” and open the DOS command window. Input 192.168.5.26 and press “Enter”. It will show message as below, which means network segment adding is successful. The user can also verify network connection following the steps above after the camera self-check. If IP is default, open DOS command window and input 192.168.5.163.
  • Page 30 2) Download/Install Plug-in When first use IE browser to access the web conferencing camera, the login page will display “Playback plug-in is not installed, please download and install!”. Click on this message, download and install MRWebXinstall.exe according to information prompts. After installing the plug-in, enter user name and password.
  • Page 31 Including video encoding, video parameters, character-overlapping, character size, Video configure video output setting etc. Network configure Including basic parameters, Ethernet, DNS, wireless network setting etc. Including equipment property, system time, user management, version update, Reset, System configure Reboot device settings etc. 1) Local configuration Video Preview Mode: user can choose real-time priority or fluency priority.
  • Page 32 Click "Save". Settings will take effect after the message "saved successfully" shows. 2) Stream Release Switch: to turn on/off the main/secondary stream. Protocol: main/secondary stream applies RTMP protocol. Host Port: server port number (default 1935, other options: 0-65535). Host Address: server IP addresses (default 192.168.5.11). Stream Name: choose a different stream name (live/av0, other options: live/av1).
  • Page 33 140%, 150%, 160%, 170%, 180%, 190%, 200%). Auto White Balance Sensitivity: sensitivity for auto white balance settings (default: low, other options: high, medium). Hue: set the chrome (default: 7, other options: 0-14). White Balance Sensitivity: default: low, other options: middle, high. Red Gain: set the red gain, effective when it is under manual mode (default: 145, other options: 0-255).
  • Page 34 6) Video Output Output Format: set the video output format (default: 1080P60, other options: 1080P50, 1080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50, 720P30, 720P25, 1080P59.94, 1080I59.94, 1080P29.97, 720P59.94, 720P29.97). Click "Save". Settings will take effect after the message "saved successfully" shows. 4.2.6 Network configuration 1) Network Port Data Port: set the data port.
  • Page 35 Heartbeat Time (seconds): default: 60, other options: range: 1-65535. Register ID: 34020000001320000001 Register User Name: IPC Register Password: 12345678 Equipment Ownership: users can add their own. Administrative Regions: users can add their own. Alarm Zone: users can add their own. Equipment Installation Address: users can add their own.
  • Page 36 default: user2; user can modify on their own). Password Confirmation: confirm the passwords are input correctly. Click "Save". Settings will take effect after the message "saved successfully" shows. Note: please note the case-sensitivity of the user name and password. If login using a common user’s user name and password, then the user does not have configuration privileges, and can only operate preview, playback, or logoff.
  • Page 37: Serial Communication Control

    SSID: user can modify on their own (default: test). Encryption: password can be set if checked. Password: password can be changed if checked. Click "Save". Settings will take effect after the message "saved successfully" shows. Note: SSID and password should be filled correctly, otherwise the wireless WiFi connection will not be available after restart.
  • Page 38 5.1.2 Camera control commands Command Function Command packet Note AddressSet Broadcast 88 30 0p FF p:VISCA Address IF_Clear Broadcast 88 01 00 01 FF I/F Clear CommandCancel 8x 21 FF 8x 01 04 00 02 FF CAM_Power Power ON/OFF 8x 01 04 00 03 FF Stop 8x 01 04 07 00 FF Tele(Standard)
  • Page 39 8x 01 04 0B 02 FF Down 8x 01 04 0B 03 FF Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position CAM_Gain Limit Gain Limit 8x 01 04 2C 0p FF p: Gain Positon Reset 8x 01 04 0D 00 FF 8x 01 04 0D 02 FF Bright Setting...
  • Page 40 10:160% 11:160% 12:180% 13:190% 14:200% CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) 8x 01 04 06 06 02 FF Turn on the menu screen SYS_Menu 8x 01 04 06 06 03 FF Turn off the menu screen 8x 01 06 08 02 FF IR (remote commander)receive...
  • Page 41 8x 01 06 07 01 0W ZZZZ: Tilt Limit Position(TBD) Clear 07 0F 0F 0F 07 0F 0F 0F FF 5.1.3 Inquiry command Command Function Command packet Note y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF...
  • Page 42: Pelco-D Protocol Command List

    CAM_ColorSaturati p: Color Gain setting 0h (60%) to Eh 8x 09 04 49 FF y0 50 00 00 00 0p FF onInq (200%) CAM_IDInq 8x 09 04 22 FF y0 50 0p 0q 0r 0s FF pqrs: Gamma ID y0 50 02 FF IR_ReceiveInq 8x 09 06 08 FF y0 50 03 FF...
  • Page 43: Pelco-P Protocol Command List

    DownLeft 0xFF Address 0x00 0x14 Pan Speed Tilt Speed DownRight 0xFF Address 0x00 0x12 Pan Speed Tilt Speed Zoom In 0xFF Address 0x00 0x20 0x00 0x00 Zoom Out 0xFF Address 0x00 0x40 0x00 0x00 Focus Far 0xFF Address 0x00 0x80 0x00 0x00 Focus Near...
  • Page 44: Camera Maintenance And Troubleshooting

    Response Query Zoom Position 0xA0 Address 0x00 0x55 0x00 0x00 0xAF Query Zoom Position 0xA0 Address 0x00 0x5D Value High Byte Value Low Byte 0xAF Response 6. Camera Maintenance and Troubleshooting 6.1 Camera Maintenance 1. If the camera will be idle for a long time, please turn off the power switch and disconnect AC power cord from outlet.
  • Page 45 control. 5) Serial Port Does Not Work a. check whether the camera serial protocol, baud rate, and address are consistent. b. check whether the control cable is connected properly. c. check whether the camera working mode is set to the normal operating mode (see Table 1.2 and Table 1.3). 6) Web Pages Cannot Log In a.
  • Page 46: Copyright Notice

    This Limited Warranty does not cover problems including but not limited to: improper handling, malfunction or damage not resulting from defects in material. To receive warranty service, please contact AVIPAS Inc. first. We will decide whether a repair or replacement is needed and will advise you of the cost of such repair or replacement.
  • Page 47 VER: 2017-04-19 (EN) Manufacturer: Distributed by: AViPAS Inc. SWIT Electronics USA, LLC www.avipas.com www.swit.us 4300 Stevens Creek Blvd. Suite 230 3350 Scott Blvd. 61-02 San Jose, CA 95129 Santa Clara, CA 95054 (408) 983-0866 1-844-228-4727 (408) 228-8438...
