If you want to change the disk you are recording to at any time, and you have a second disk that
has free space, then simply hold down the record button and the recording will move from the
current disk to the second disk. This is very useful when you want to get that disk out of the
HyperDeck without pausing recording. This can happen during live events when you need to
get an important recording out to another location, but you don't want to miss anything and you
don't want to stop recording.
If the 'record' button flashes quickly, this means the disk is not fast enough for sustained
recording. In this case, if you are recording uncompressed HD, we recommend changing to a
compressed recording format such as ProRes or DNxHD, or if you are recording compressed
video and the record button flashes quickly, try using faster recommended media.
Ref Input
If your HyperDeck has a reference input, it can accept black burst and tri-level sync signals from
a sync generator. Connect a reference source to this input if you want to synchronize
HyperDeck with other video equipment, such as a production switcher.
IN LOOP OUT OUT 1
SD/HD/3GHD-SDI
IN
REMOTE ETHERNET

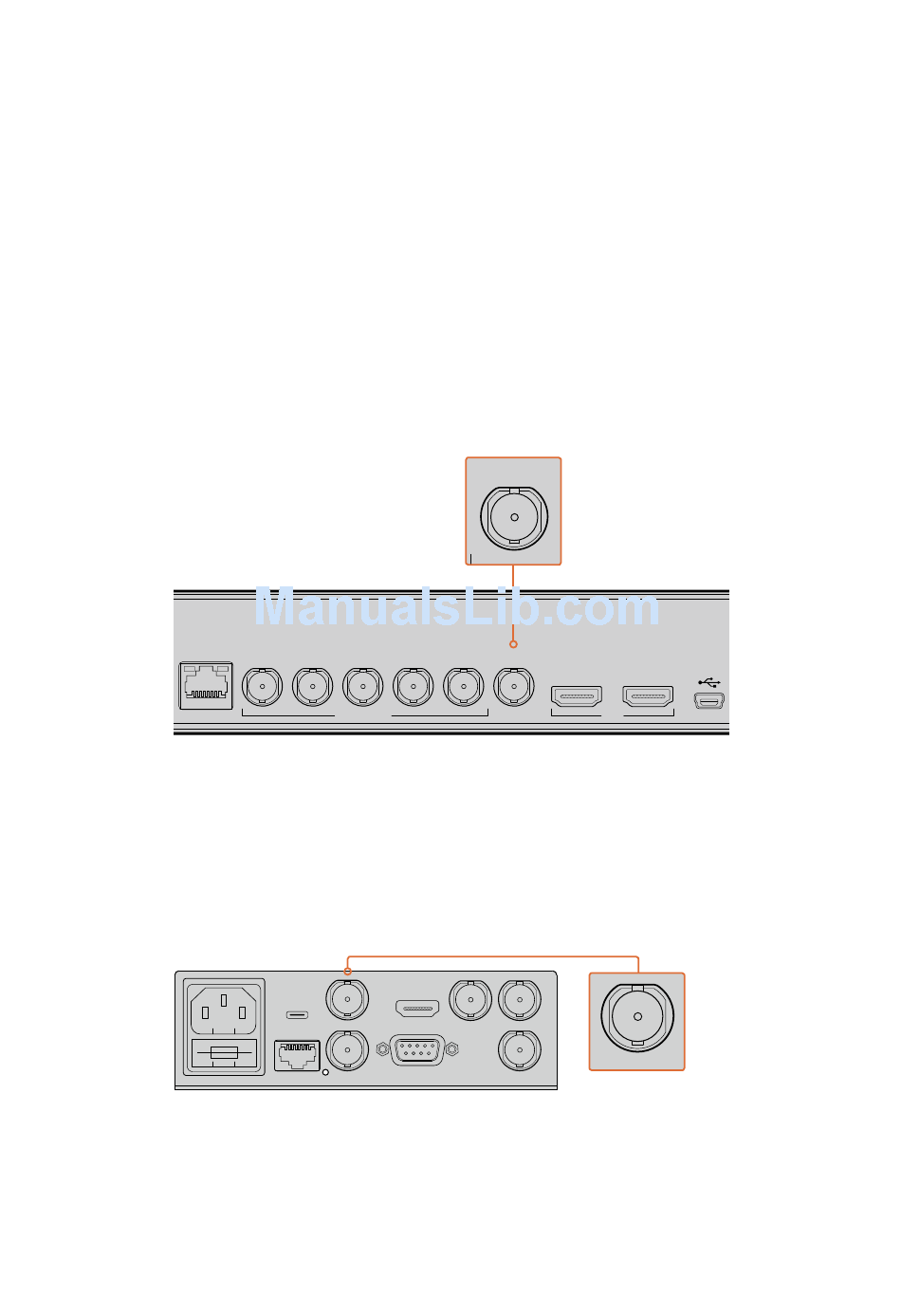

If your HyperDeck has a reference input, you can sync your HyperDeck with other
video equipment
Ref Output
The reference output on HyperDeck Studio Mini lets you connect an internally generated black
burst or tri-level sync signal to other video equipment if you want to synchronize other
equipment with your HyperDeck.
On HyperDeck Studio Mini you can sync other video equipment with your HyperDeck
using the reference output
