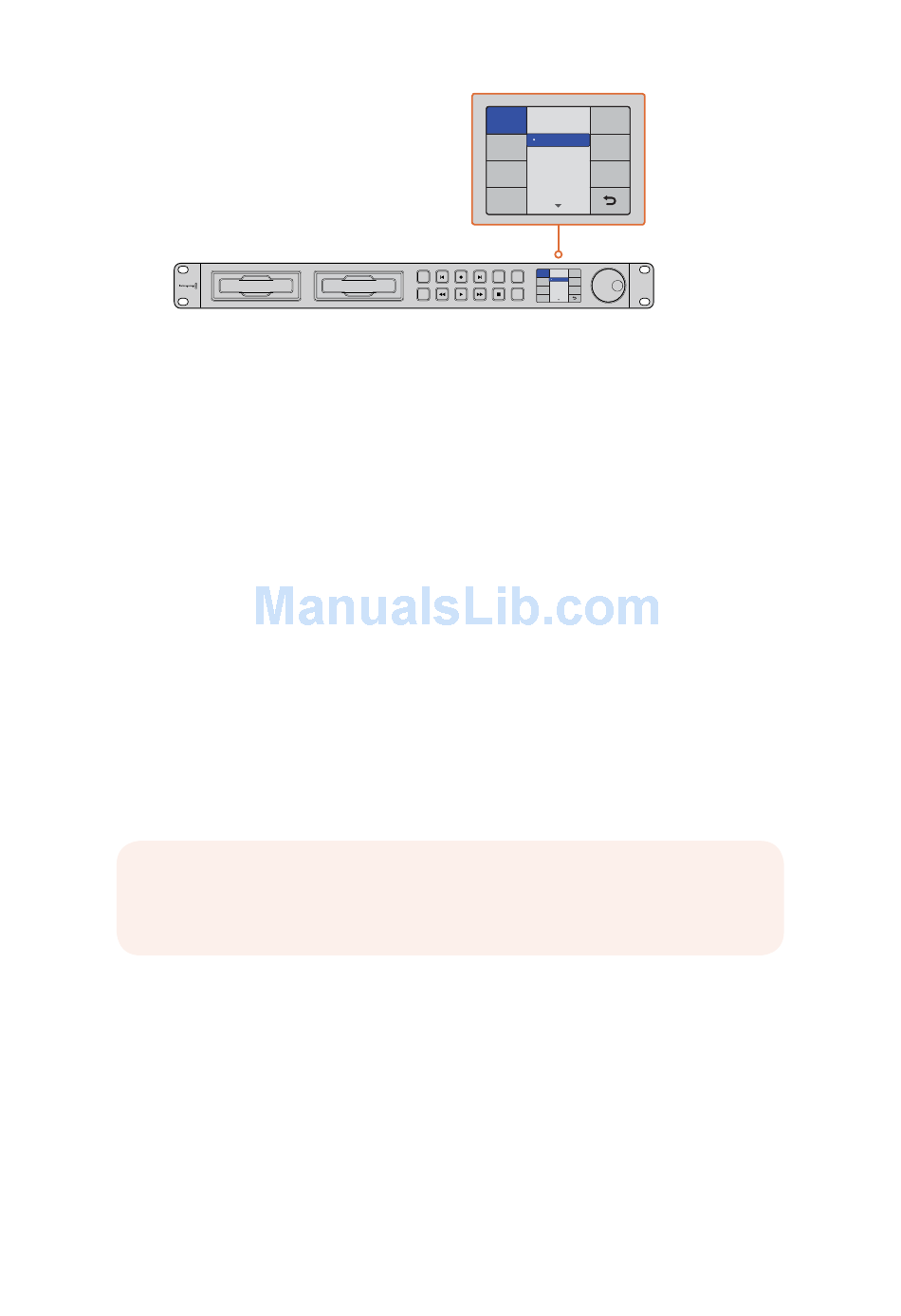

Press the 'display' or 'menu' button to enter the LCD menu where you
can select between various codecs and change settings
Selecting Timecode Source
When recording from HD-SDI video sources that provide embedded SMPTE RP 188 metadata,
you can record the embedded timecode from the video source instead of using timecode
generated by your HyperDeck.
To set this using the display menu:
1 Press the 'display' or 'menu' button to display the main menu.
2 Scroll to the 'timecode' menu and press 'set'.
3 Press 'set' to enter the 'timecode input' menu and select 'input'.
4 Press 'set' to confirm your selection.
It might be necessary to turn on the RP 188 setting in your camera before HyperDeck
will be able to record the timecode.
SDI Start/Stop Recording
HyperDeck supports start/stop recording, which means when you press the record button on
an HD-SDI camera, HyperDeck will start recording without also having to press the record
button on your HyperDeck disk recorder.
NOTE You will need a camera that can trigger the record function of HyperDeck via
HD-SDI. Cameras which support trigger recording via HD-SDI may include menu
options such as 'trigger rec', HD-SDI remote I/F' or 'SDI remote start/stop trigger'.
To set start/stop trigger recording using the display menu:
1 Press the 'disp' or 'menu' button to display the main menu.
2 Scroll to the 'record' menu and press 'set'.
3 Scroll to the 'record trigger' menu and press 'set'.
4 Select 'SDI start/stop' and press 'set' to confirm your selection. Press 'disp/
menu' to exit.
5 On HyperDeck Studio Mini, press the menu button to open the LCD menu, navigate to
'settings' and set remote to 'on'.
HyperDecks that record on SSDs have a remote button on the front panel marked REM.
Simply press the remote button to enable remote control. The button will illuminate to
let you know remote is enabled.
Codec
INPUT REM
Record
Trigger
JOG
DISP INPUT REM
SET JOG
Codec
Uncomp 10-bit
ProRes HQ
ProRes
ProRes LT
ProRes Proxy
Codec Codec
Uncomp 10-bit
Record
Trigger
ProRes HQ
ProRes
ProRes LT
ProRes Proxy
