Getting Started

Getting Started with Blackmagic HyperDeck
Getting started with your HyperDeck disk recorder is as easy as connecting power, plugging in
your video sources and destination equipment to your HyperDeck's inputs and outputs and
inserting your SSDs or SD cards.
Plugging in Power
Simply plug a standard IEC cable to your HyperDeck's power input on the rear panel.
Plugging in Video and Audio
Plug your source video to the SDI or HDMI inputs, and your destination equipment to the SDI or
HDMI outputs.
HyperDeck Studio 12G has 12G-SDI connectors so you can input or output Ultra HD up to
2160p60 using a single BNC cable.
HyperDeck Studio Pro provides additional inputs and outputs for connecting video equipment
that supports single link, dual link or quad link Ultra HD.
Plugging in Analog Audio and Timecode on HyperDeck Studio Pro
If you want to connect analog audio sources to HyperDeck Studio Pro, plug into the XLR or RCA
connectors. To select your desired audio input, simply press the 'input' button on the front
control panel to cycle through combinations of video and audio inputs. For example, SDI + XLR,
SDI + RCA, and more. External timecode can also be connected to and from your HyperDeck
Studio Pro via the timecode XLR input and output connectors.
B-Y OUT R-Y OUT REF IN
OUT B OUT C OUT D MON OUT
SD/HD/3G/6G-SDI OUT
USB-C REF OUT
ETHERNET PoE+ REF IN

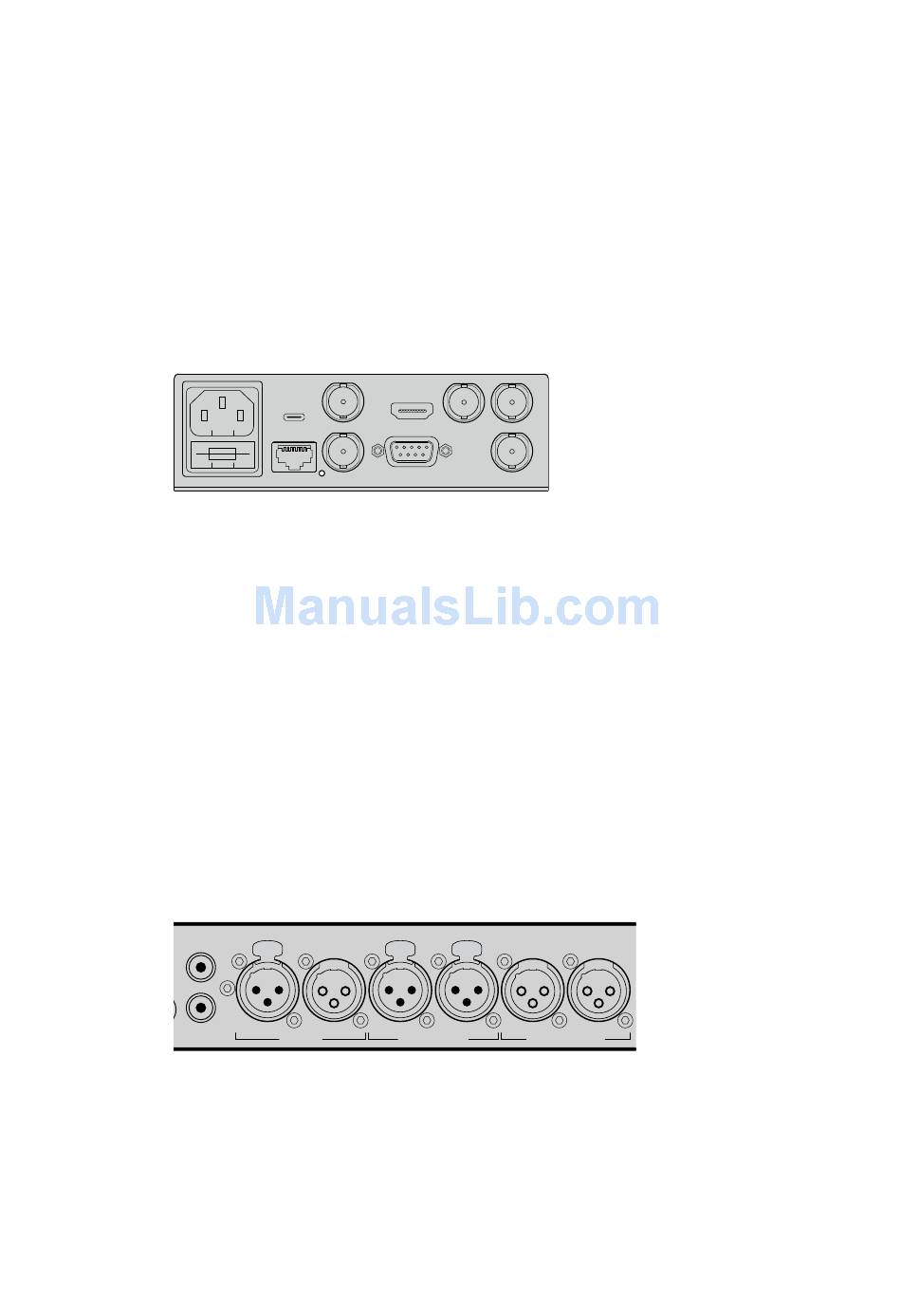

Connect power to your HyperDeck Studio using a standard IEC power cable
STEREO IN
PUSH
L
R
IN OUT
TIMECODE
HyperDeck Studio Pro lets you plug in external analog audio and timecode
via the rear panel XLR connectors. You can even plug in analog audio from
audio equipment such as iPods and HiFi systems via the RCA inputs.
A B
HDMI OUT SDI OUT
REMOTE IN SDI IN
PUSH PUSH
CH 1 CH 2 CH 1
ANALOG AUDIO IN ANALOG AUDIO OUT
CH 2
