5 On HyperDeck Studio Mini, press the menu button to open the LCD menu, navigate to
'settings' and set remote to 'on'.
HyperDecks that record on SSDs have a remote button on the front panel marked REM.
Simply press the remote button to enable remote control. The button will illuminate to
let you know remote is enabled.
Now whenever your HyperDeck detects the timecode running via HD-SDI it will start recording.
Recording will stop whenever the timecode stops.
Be careful if your HyperDeck is connected to the SDI output of a video router, as any change to
the video source might cause HyperDeck to start recording unexpectedly due to a change in
timecode being detected via HD-SDI.

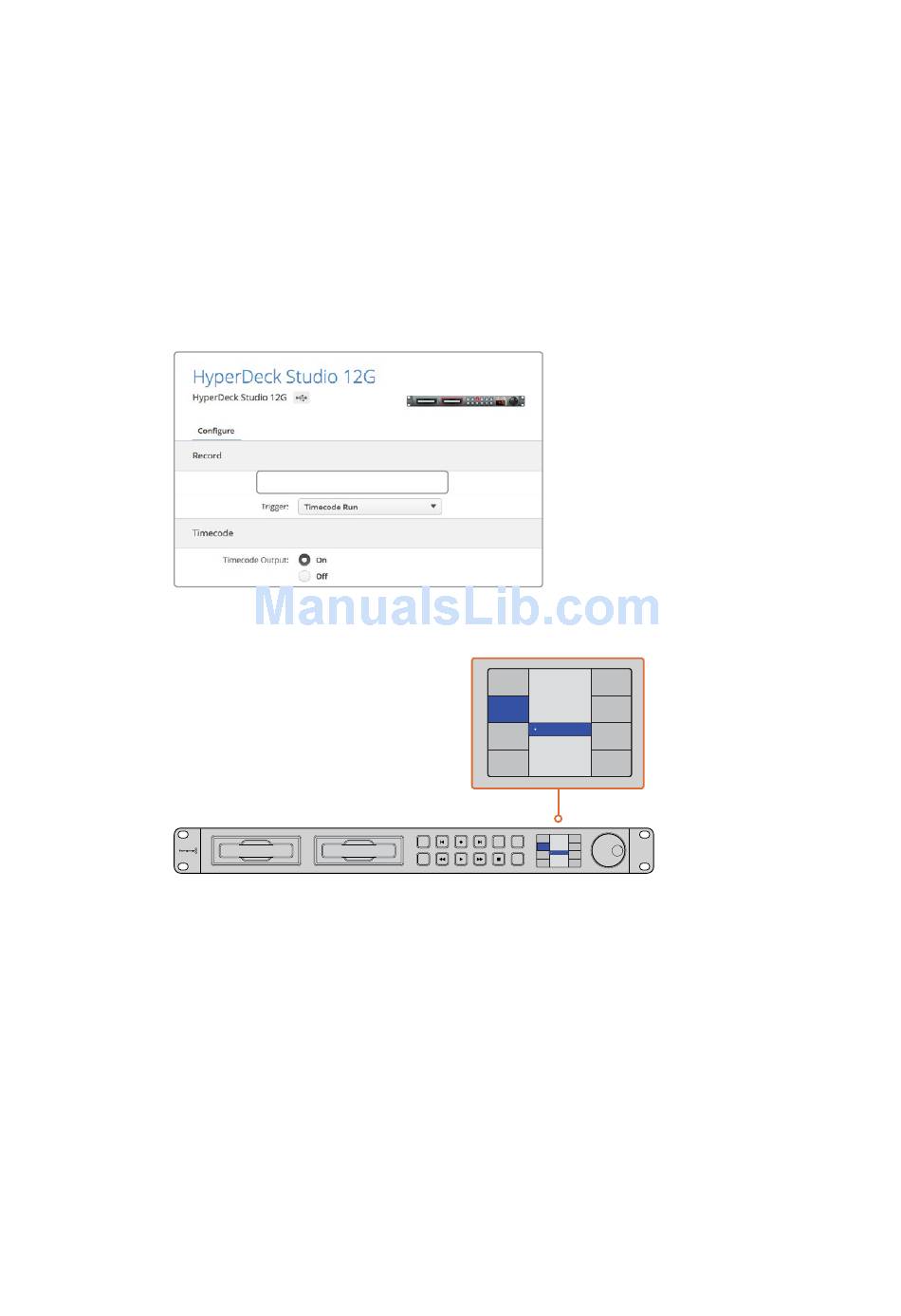

You can use the control panel LCD
Setup to enable timecode run recording
DISP
SET
The 'timecode run' recording feature lets you trigger your HyperDeck
to record whenever running timecode is detected via the HD-SDI
connection. Recording will stop when the timecode stops.

RS-422 Control

What is RS-422 Control?
The RS-422 standard is a serial deck control broadcast standard and has been used by
broadcasters since the early 1980s and is found on many decks, linear editors, non linear
editors and broadcast automation products. All current HyperDeck models support this
standard so can be integrated into broadcast automation, remote control systems, editing
systems and any kind of custom control you might like to design yourself.
menu, or use HyperDeck
Codec
INPUT REM
Record
Trigger
JOG
DISP INPUT REM
SET
JOG
Record Trigger
None
SDI Start/Stop
Timecode Run
Codec Record Trigger
None
Record
Trigger
SDI Start/Stop
Timecode Run
RS-422 Control 23 23
