1. INSTALLATION

1.1. Accessories

The electric water heater, or boiler by accumulation under pressure,
is provided with basic elements for its installation, such as:
• Insulating sockets.
• Safety valve.
These accessories are
150 mm
included within the
packaging.

1.2. Placement

In order to fix the
heater to the wall, you
100 mm 100 mm
will have to use suitable
rawlplugs, screws, or
other fittings to support
the weight of the heater
when it is full.

1.3. Location

It is essential that the
heater is situated as H C
near as possible to the
540 mm
place where hot water
is required. In this way,
water temperature

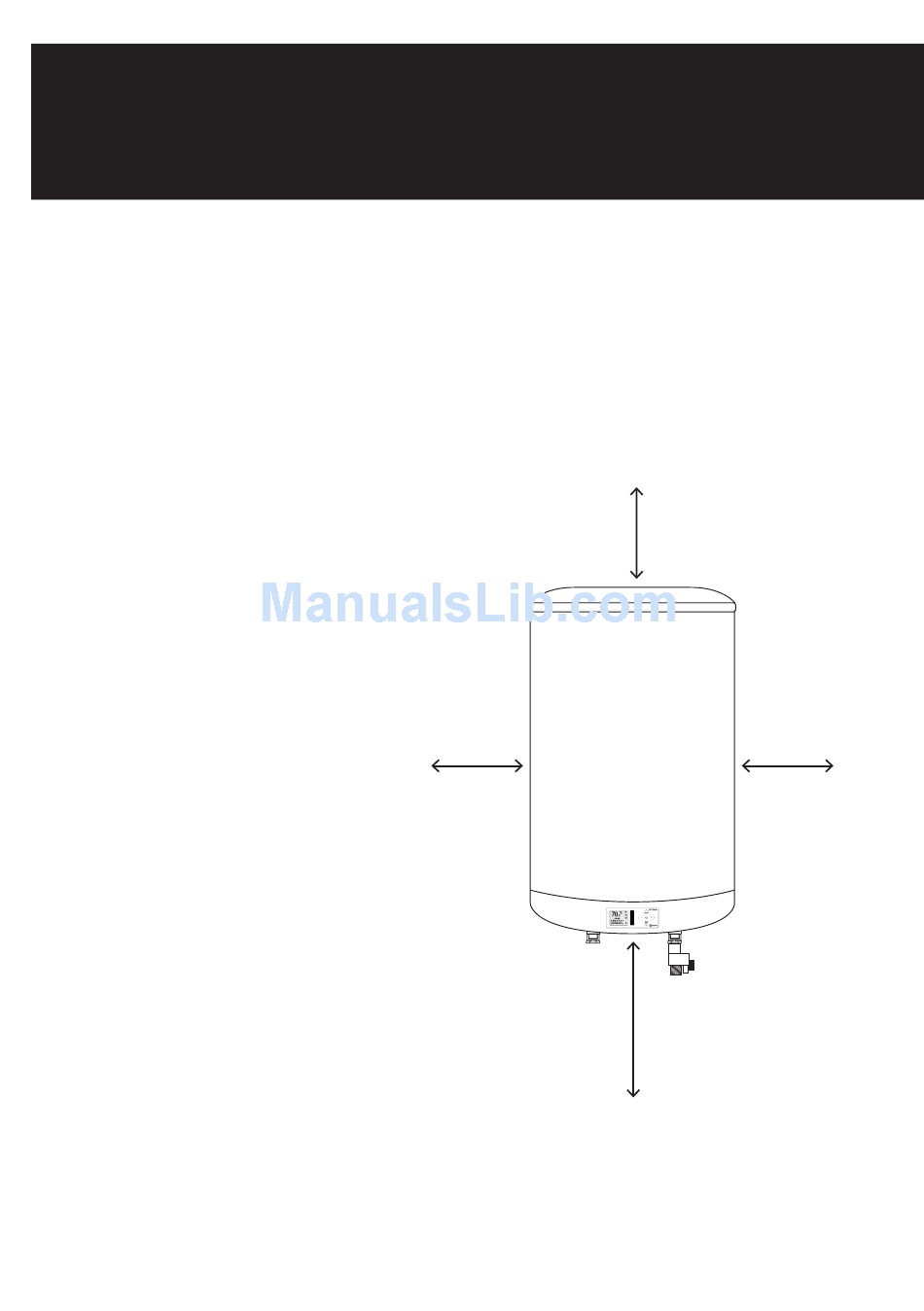

Figure 1 - Minimum margins for
loss in the pipework
servicing and repairs.
can be avoided. Leave
a minimum space of
