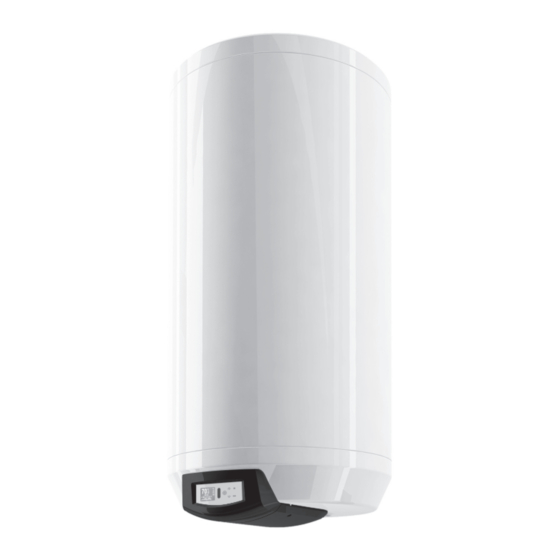

- Page 1 SIENA Digital electronic water heater INSTRUCTION MANUAL Information, operation & installation...
- Page 2 Children must be supervised at all times to ensure that they do not interfere with the product. Any repairs must only be done by an competent professional or the Rointe after- sales service personnel. If the power cable is damaged, it must be replaced by the manufacturer, its after- sales service or authorized personnel in order to avoid any damage.
-
Page 3: Table Of Contents
8. Guidance ..............................26 9. Servicing and maintenance ........................26 10. Troubleshooting .............................26 11. Safety precautions ..........................27 12. Rointe Product Guarantee ........................28 13. European Directive..........................31 14. Dimensions & Technical Characteristics ....................32 15. Commissioning and service history records ..................34 16. Certificate of Guarantee ........................37... -
Page 4: Introduction
0.15 MPa and a flow rate of 20 litres per minute. The necessary safety equipment to comply with all national legislation is available for purchase from Rointe. The main features of this product are: •... -
Page 5: General Requirements
SIENA Digital electronic water heater 3. General requirements 3.1. Building regulations The domestic hot water cylinder MUST be installed by a competent person in accordance with section G3 of the current Building Regulations. 3.2. Important It is important that the installer reads and understands these instructions and unpacks and familiarises themselves with the equipment before commencing the installation. -
Page 6: Plumbing Installation
Figure 1 - Mounting The unit should be mounted close to an external wall so that the discharge pipe D2 (see Figure 2, page 7) can be routed to a safe visible place. The tundish should be mounted in a visible location so that it may easily be inspected. - Page 7 SIENA Digital electronic water heater 4.4. Temperature and pressure relief valve The temperature and pressure relief valve (T/P Valve) is supplied (Figure 2, page 7). Once the T/P valve is fitted it should not be removed from the cylinder or tampered with in any way. The valve is pre calibrated to lift at 0.7 MPa or 90 C and any attempt to adjust it will render the guarantee null and void and could affect the safety performance of the unit.
- Page 8 4.6. Expansion relief valve This must be installed between the pressure reducing valve and the water heating unit in accordance with Figure 2 (page 7). No other valve should be fitted between this valve and the cylinder. The expansion relief valve contains a non return valve. 4.7.
- Page 9 SIENA Digital electronic water heater or similar guard is positioned to prevent contact whilst maintaining visibility. • Discharge at high level, e.g. into a metal hopper and metal down pipe with the end of the discharge pipe clearly visible (tundish visible or not) or onto a roof capable of withstanding high temperature discharges of water and 3 m from any plastic guttering system that would collect such discharges (tundish visible).
-
Page 10: Electrical Installation
Table 1 - Sizing of copper discharge pipe “D2” for common temperature relief valve outlet sizes Max. resistance Valve Minimum size of Min. size of allowed, expressed Resistance created outlet size discharge pipe D1 discharge pipe D2 as length of by each elbow or (diameter, (mm) -
Page 11: Filling And Commissioning
SIENA Digital electronic water heater 5.1. The sheathed heating elements Two parallel 1.2kW 230v 50Hz sheathed heating elements are pre fitted to the cylinder at the factory. They are wired in accordance with the instructions given in Figure 4. 5.2. Wiring diagram The power supply to the product must be via a double pole isolator switch or controller, having contact separation of at least 3 mm, to comply with BS 6141 and must be fully earthed. -
Page 12: Product Information And Operation
7. Product information and operation 7.1. Control panel 7.1.1. Keypad ICON DESCRIPTION On / Off button Accept / Confirm button Decrease temperature button Move left button Increase temperature button Move right button Menu button Move upwards button MANUAL / AUTOMATIC button Move downwards button 7.1.2. -
Page 13: Switching On And Off (Stand-By)
After 5 seconds the temperature, time and days of the week will show on the display panel. To switch the product off, please press the button again once. The product will go into stand-by mode with the word ‘STAND-BY’ displayed on the display panel. After 5 seconds the Rointe logo will appear. -
Page 14: Adjust The Day And Time
7.3. Adjust the day and time To set the day and time, please press the button on the keypad to access the Main Menu. Select the `Settings´ menu using the buttons on the keypad. To move left press the button and to move right press the button. -
Page 15: Lock The Control Panel
SIENA Digital electronic water heater 7.5. Lock the control panel You can lock the keypad from the product or from a remote control* (optional). To lock the keypad manually, please hold and press the button AND the button TOGETHER for 3 seconds. The symbol will appear on the display panel and the keys will not respond. -
Page 16: Settings Sub-Menu
7.6.1. Main Menu: Settings sub-menu The `Settings´ sub-menu configures the technical parameters of your product. To access, select the icon displayed in the Main Menu screen and press to confirm. Use the buttons to move across the different options on the sub- menu to choose your parameter and press to access. -
Page 17: Energy Sub-Menu
SIENA Digital electronic water heater • Change the language To change the language of your product, ensure the icon is highlighted LANGUAGE in the `Settings´ sub-menu and press the button to access. ENGLISH FRANÇAIS ESPAÑOL Use the buttons to move up or down respectively until your chosen PORTUGUÊS language is highlighted and confirm by pressing the button. - Page 18 • Water Heating Progress function This function allows you to see the progress of the water heating process towards the user established target temperature. To see the progress of the water heating, ensure the icon is highlighted in the `Energy´ sub-menu and press the button to confirm.
-
Page 19: Equilibrium / Balance Sub-Menu
SIENA Digital electronic water heater • Information This function will display the software version, the date of this release and the rated power of the product. To access this information, ensure the icon is highlighted in the `Energy´ sub-menu and press the button to confirm. - Page 20 The `Program´ sub-menu provides access to functions related to programming the product. To access, select the icon displayed in the Main Menu screen and press to access. Use the buttons to move across the different options on the sub-menu to choose your program and press to access.
- Page 21 SIENA Digital electronic water heater The display panel will show 2 options: • PRE-PROGRAMS • START PROGRAMMING A flashing line will appear around the option that is selected. To change the option use the buttons and press the button to confirm. •...
- Page 22 STEP 4 - Select the Hours Once step 3 has been completed, 0h appears on the display panel. 0h is equal to midnight. Use the buttons to select the hour you wish to change. Use the button to change the mode (COMFORT, ECO or nothing) for the hour you wish to modify.
- Page 23 SIENA Digital electronic water heater • Pre-installed programmes schedule: PROGRAM TIME / DAY Mon - Fri Sat - Sun Mon - Fri Sat - Sun Mon - Sun Mon - Fri Sat - Sun 00:00 01:00 02:00 03:00 04:00 05:00 06:00 07:00 08:00...
- Page 24 • USER mode To enter the USER function, ensure the icon is highlighted in the `Program´ sub-menu and press the button to access. A 4-digit PIN code is required in order to access the menu. The default PIN is 0000. To enter the PIN use the buttons to move left, right, up or down to select the correct numbers, pressing...
- Page 25 SIENA Digital electronic water heater • Change the PIN code To change the PIN code of your product, ensure the icon is highlighted in the `Program´ sub-menu and press the button to access. Use the buttons to move left, right, up or down to CANCE select the new numbers, pressing after each number is highlighted to...
-
Page 26: Guidance
Before any work whatsoever is carried out on the installation, it MUST first be isolated from the mains electricity supply. • Only use spare parts authorised by Rointe. The use of other parts will invalidate the warranty. • Drain the cylinder – When draining the cylinder, always switch off the product. Turn off the water supply at the stopcock (see Figure 2 on page 7). -
Page 27: Troubleshooting
SIENA Digital electronic water heater remove any debris from in front of it. Replace the cartridge. • Check the charge pressure in the expansion vessel and top up as necessary. The charge pressure should be 0.15 or 0.3 MPa. • Close the drain cock, disconnect the hose, refit the heating element and close all hot water taps before reopening the stopcock. -
Page 28: Rointe Product Guarantee
ROINTE. Any incident that you might detect in your ROINTE product can be sorted by the product seller or quickly by the manufacturer. Please contact ROINTE by telephoning (UK) 0203 321 5929 / (IRELAND) 01 553 0523 for Technical Support. - Page 29 SWI080DHW4 SIENA 12.1. ROINTE guarantees that there are no material defects of design or manufacture at the time of original acquisition and guarantees the inner steel cylinder for a period of 60 months and any electronic and electrical components for 24 months, provided that they have not been modified in any way.
- Page 30 12.2.8. The product has not been subjected to excessive pressure or electrolytic actions from dissimilar materials or attack from salt deposits. 12.3. The Technical Service department of ROINTE will advise you if you need to purchase any parts not covered under the guarantee or out of guarantee.
-
Page 31: European Directive
For help about the product or guarantee, please contact ROINTE by telephoning (UK) 0203 321 5929 / (IRELAND) 01 553 0523 for Technical Support or by email at support@rointe.co.uk / rointe@ rointe.ie. 13. European Directive (WEEE) 2012/19/UE... -
Page 32: Dimensions & Technical Characteristics
14. Dimensions & Technical Characteristics 470 mm 470 mm TECHNICAL INFORMATION Ceramic heating element Enameled steel tank Magnesium anode protector CFC-free polyurethane insulation foam INSTALLATION Touch control panel in PC/ABS Support tripod (optional) Infrared communication Installation position Vertical Maximum working pressure (bars) Safety valve Protection Grade IP24... - Page 33 SIENA Digital electronic water heater MODELS SWI080DHW4 SWI150DHW4 Volume (L) Load profile Nominal power (W) 2,400 2,400 DIMENSIONS Diameter x height (mm) 470 x 777 470 x 1,297 Installed depth (mm) Distance between connections (mm) CHARACTERISTICS Empty weight (kg) 25.2 38.5 Water connections (inches) 1/2”...
-
Page 34: Commissioning And Service History Records
15. Commissioning & Service Record CUSTOMER DETAILS NAME: ADDRESS: TEL No. INSTALLER DETAILS COMPANY NAME: DATE: ADDRESS: TEL No. INSTALLER NAME: REGISTRATION No. COMMISSIONING ENGINEER (IF DIFFERENT) COMPANY NAME: DATE: ADDRESS: TEL No. INSTALLER NAME: REGISTRATION No. CYLINDER DETAILS MODEL: CAPACITY (litres): SERIAL No. - Page 35 SIENA Digital electronic water heater SERVICE RECORD DETAILS Before completing the appropriate Service Interval Record below, please ensure you have carried out the service as described in the manufacturer’s instructions and in compliance with all relevant codes of practice. It is recommended that your hot water system is serviced regularly and that your service engineer completes the appropriate Service Interval Record below.
- Page 39 SIENA Digital electronic water heater Thank you for choosing Rointe. We hope you enjoy your product. If you require further assistance or information, please contact our Technical Service Department by telephoning (UK) 0203 321 5929 / (IRELAND) 01 553 0523 or email...
- Page 40 ROINTE UK ROINTE IRELAND Catalyst House, Blackrock 720 Centennial Court, Centennial Park County Louth Elstree, Herts, WD6 3SY 0203 321 5928 01 553 0523 0208 953 5861 Technical Support Technical Support 0203 321 5929 01 553 0523 E: support@rointe.co.uk E: rointe@rointe.ie www.rointe.co.uk...
