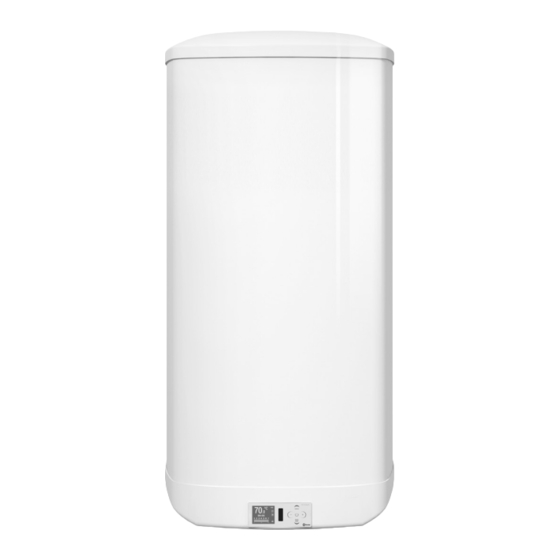

- Page 1 SYGMA INSTRUCTIONS MANUAL SYGMA DIGITAL ELECTRIC WATER HEATER MOUNTING, INSTALLATION, STARTING AND OPERATION...
- Page 2 SYGMA WELCOME Dear Customer, Thank you for choosing the SYGMA electric water heater with an exclusive electronic temperature programmer and made with the highest quality materials especially for you. The SYGMA water heaters have exceeded the most stringent quality controls in order to comply with the most rigorous requirements for safety.
-
Page 3: Table Of Contents
ENGLISH ATTENTION: If you are the owner of a model bought in the UK or Éire, please refer ONLY to its manual as the specifications of the water heaters are different. TABLE OF CONTENTS 1. INSTALLATION ................4 1.1. Accessories ................4 1.2. -
Page 4: Installation
SYGMA 1. INSTALLATION 1.1. Accessories The electric water heater, or boiler by accumulation under pressure, is provided with basic elements for its installation, such as: • Insulating sockets. • Safety valve. These accessories are 150 mm included within the packaging. -
Page 5: Water System Installation
500 mm below where the pipes exit the heater to allow access for maintenance and repair and any necessary future maintenance operations. Do not install the heater horizontally with the wall supports horizontal or over the floor. 1.4. Water system installation WARNING TO THE INSTALLER: the insulating sockets provided with the heater must be placed on the entrance and exit pipes to eliminate the risk of galvanic pairs as teflon is used in the thread... -
Page 6: Electrical Installation
SYGMA 1.5. Electrical installation The appliance requires a single-phase 230 V supply. It is necessary to check carefully that the supply voltage agrees with the required voltage of the appliance. The heater does not need installation requirements outside the norm, therefore it is suitable for installation in accordance with the Electrotechnical Low Voltage Regulations. -
Page 7: Use
maintenance shall not be made by children without supervision. Children must be supervised at all times to ensure that they do not play with the product. Figure 2 - Wiring diagram 2. USE 2.1. Operation Filling. Once the heater has been installed, open the stop cock. Then open the hot water taps. -
Page 8: Electronic Control Function
SYGMA the mains supply before ensuring that it is full of water. Electrical connection. Plug in the heater, switch on and leave the appliance connected to the electricity supply. Once a certain amount of hot water has been used, the thermostat switches the heating element back on. - Page 9 3.1.1. Main information display NUM. FUNCTION PROGRAMMING DAYS OF THE WEEK TIME OF DAY TEMPERATURE SELECTED LOCKING THE CONTROL PANEL COMFORT / ECO / ANTI-FROST MODE MANUAL / AUTOMATIC FUNCTION HEATER ELEMENT ON OPTIMIZER ENERGY PLUS FUNCTION...
- Page 10 The following image will appear on the screen when switched on: After 3 seconds, the main information display will be shown. By pushing the button again the water heater will go into standby mode with the word “Standby” appearing followed by the Rointe logo. 3.3. Setting the day and time...
- Page 11 To unlock, press the keys again, at the same time for 3 seconds. 3.5. Temperature selection By pressing we change the temperature. When the water temperature is lower than the one set, the water heater comes on and the symbol appears. 3.6.
- Page 12 SYGMA 3.7. Menu / Programming function Pressing for 3 seconds allows you to program the water heater directly: 1. Select the COMFORT temperature setting (55ºC to 73ºC), using . The symbol and the temperature will flash. 2. Press and we can select the ECO temperature (40ºC to 54.5ºC) using...
-
Page 13: Advanced Functionality
4. ADVANCED FUNCTIONALITY 4.1. ANTI LEGIONNAIRE’S DISEASE Our SYGMA is designed with safety in mind and all the anti legionnaires’ disease regulations are complied with. The water heater is automatically set to over 60ºC for at least one hour once a week. Whilst this mode is active, you will see the... -
Page 14: Optimizer Energy Plus
TFT screen, a percentage value is displayed. This represents the heating progress towards this target temperature. 5. OPTIMIZER ENERGY PLUS This product includes Optimizer Energy Plus Rointe technology to efficiently manage the energy consumption of the water heater. -
Page 15: Maintenance
Optimizer Energy Plus is a technology that bases its operation on thousands of micropulses being sent to the heating elements to keep a stable water temperature with a consumption as low as posible. When the symbol replaces the , then the Optimizer Energy Plus technology is working. -
Page 16: Condition Of The Guarantee
7. CONDITION OF THE GUARANTEE The Guarantee for ROINTE’S heaters is a commercial guarantee that is offered by us in our capacity as manufacturer, in addition to and independently from the rights that you receive from the seller as a... - Page 17 Remember that while the heater is being repaired or replaced, the period during which you can excercise your rights with the seller, and those that are offered in addition by ROINTE’s heater guarantee, will be temporarily suspended until the repaired or substitue heater is delivered, from which time the unused guarantee period will be available, with a minimum period of 6 months in all cases.
- Page 18 If your ROINTE radiator needs to be sent to the guarantee service, contact the dealer / installer where it was purchased. In the event of any problems, you can contact ROINTE on its TECHNICAL ASSISTANCE HELPLINE 01432 598 024 or e-mail us at...
- Page 19 The symbol of the container crossed out over a horizontal line marks all of ROINTE’s products to remind the consumer of the obligation to separate them on disposal.The consumer should contact the local authority or original point of sale to learn more about the correct disposal of this product.
-
Page 20: Dimensions And Technical Characteristics
SYGMA 8. DIMENSIONS AND TECHNICAL CHARACTERISTICS REFERENCE SWN050DHW2 SWN075DHW2 SWN100DHW2 SWN150DHW2 SWN200DHW2 CAPACITY (L) 1,600 2,000 2,000 2,000 2,400 POWER (W) 230 V~ 2 x 800 W 2 x 1,000 W 2 x 1,000 W 2 x 1,000 W 2 x 1,200 W... - Page 23 SYGMA LOW CONSUMPTION DIGITAL ELECTRIC WATER HEATER...
- Page 24 ROINTE UK ROINTE HEAD OFFICE Catalyst House 720, Centennial Pol. Ind. Vicente Antolinos Court, Centennial Park C/ E, Parcela 43 Elstree, Herts, WD6 3SY 30140 Santomera, Murcia, España T. 01432 598 019 T. 902 158 049 F. 0208 953 5861 F.
