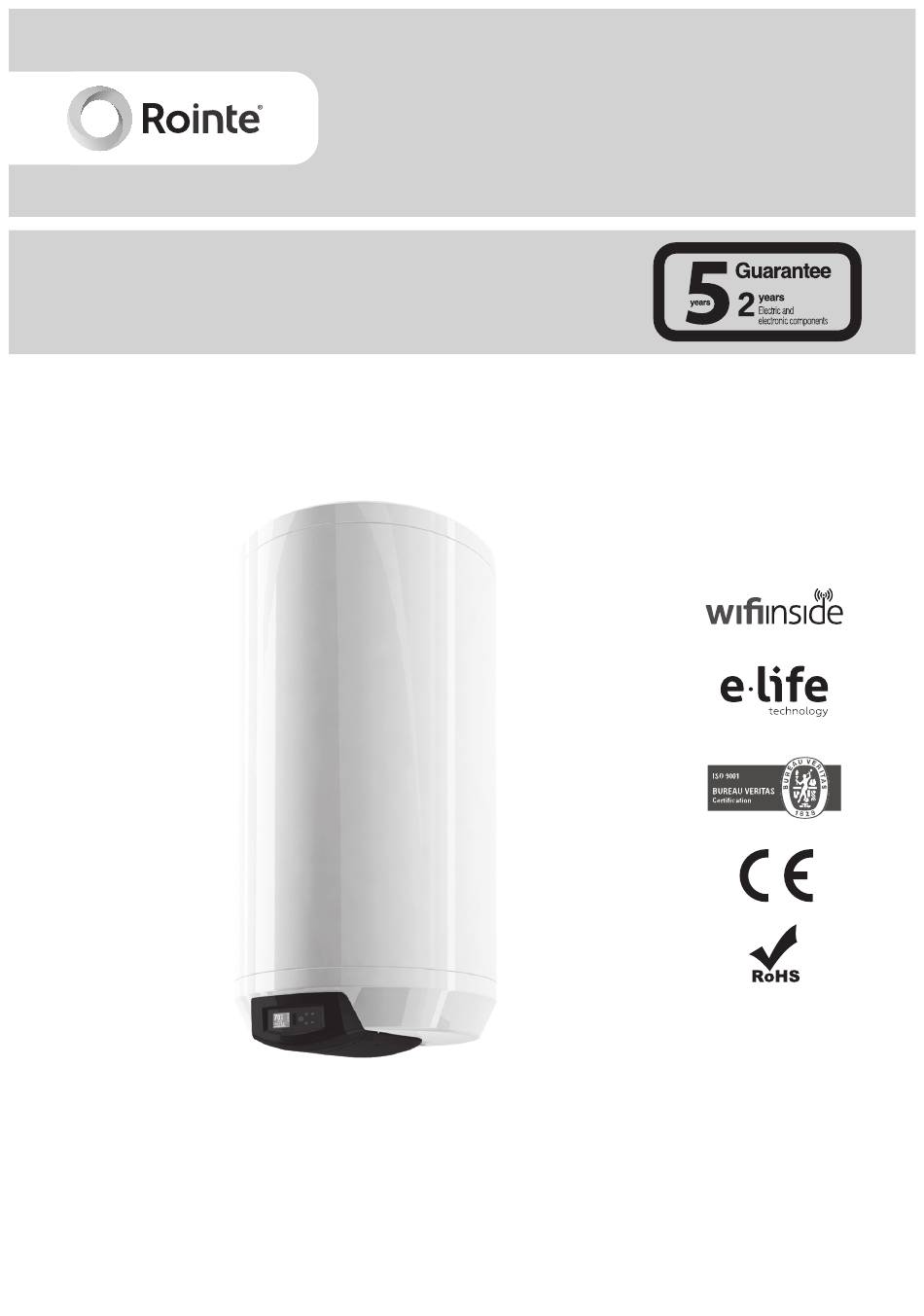

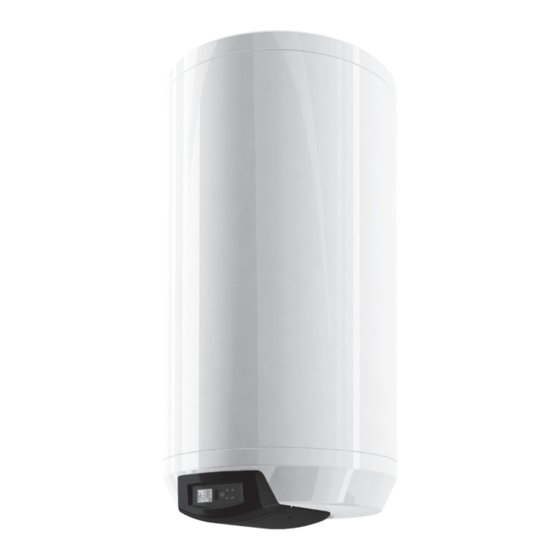

- Page 1 ROME Digital electric connected D.H.W. unvented heater with low consumption INSTRUCTION MANUAL Information, operation & installation...
- Page 2 Children must be supervised at all times to ensure that they do not interfere with the product. Any repairs must only be done by an competent professional or the Rointe after- sales service personnel. If the power cable is damaged, it must be replaced by the manufacturer, its after- sales service or authorized personnel in order to avoid any damage.
-
Page 3: Table Of Contents
8. Guidance ..............................21 9. Servicing and maintenance ........................22 10. Troubleshooting .............................22 11. Safety precautions ..........................23 12. Rointe Product Guarantee ........................24 13. European Directive..........................27 14. Commisioning and service history records ..................27 15. Certificate of Guarantee ........................29 16. Dimensions & Technical Characteristics ....................31... -
Page 4: Introduction
0.15 MPa and a flow rate of 20 litres per minute. The neccessary safety equipment to comply with all national legislation is available for purchase from Rointe. The main features of this product are: •... - Page 5 ROME Digital electric connected D.H.W. unvented heater with low consumption these installation instructions could invalidate the guarantee. 3.3. Water supply The water supply to the cylinder should be potable water direct from a public mains water supply with any water treatment equipment functioning correctly. For optimum performance the unit should be fed via a 15 mm or 22 mm diameter supply pipe direct from the mains water entry point to the property and supplies a maximum pressure of 0.9 MPa.
-
Page 6: Plumbing Installation
The unit should be mounted close to an external wall so that the discharge pipe D2 (see Figure 2) can be routed to a safe visible place. The tundish should be mounted in a visible location so that it may easily be inspected. 3.6. - Page 7 ROME Digital electric connected D.H.W. unvented heater with low consumption connected to a maximum supply pressure of 0.9 MPa. Figure 2 - Cylinder connection arrangement DESCRIPTION Mains cold water supply Stop Cock (not included) Pressure reducing valve* Check valve* Expansion relief valve* Discharge pipe (22 mm) Drain Cock (not included) Tundish*...
- Page 8 carrying devices or wiring. The installation should conform with the requirements of section 4.9. 4.9. Discharge arrangement The tundish (Figure 2 must be installed in a position so that it is clearly visible by the user. In addition, the discharge pipe (Figure 2) from the tundish should terminate in a safe place where there is no risk to persons in the vicinity of the discharge, be of metal and: A) Be at least one pipe size larger than the normal outlet size of the safety device unless its total equipment hydraulic resistance exceeds that of a straight pipe 9m long, i.e.
- Page 9 ROME Digital electric connected D.H.W. unvented heater with low consumption Figure 3 - Typical discharge pipe arrangement Table 1 - Sizing of copper discharge pipe “D2” for common temperature relief valve outlet sizes Valve outlet Max. resistance Min. size of Min.
-
Page 10: Electrical Installation
Therefore the maximum permitted length equates to: 14m. As the actual length is 7m, a 28mm diameter copper pipe will be satisfactory. 5. Electrical installation WARNING - This equipment and pipework must be earthed. All electrical wiring must be carried out by a competent person and in accordance with the current I.E.E. -
Page 11: Product Information And Operation
ROME Digital electric connected D.H.W. unvented heater with low consumption • Check that while the unit is heating up, no water exits from either the expansion relief valve or the temperature and pressure relief valve. If water does exit through the valves check the expansion vessel pressure and installation. -
Page 12: Control Panel
After 5 seconds the temperature, time and days of the week will show on the display panel. To switch the product off, please press the button again once. The product will go into stand-by mode with the word ‘STAND-BY’ displayed on the display panel. After 5 seconds the Rointe logo will appear. -
Page 13: Adjust The Day And Time
7.3. Adjust the day and time You can manually set the time on the product from the control panel orit will automatically synchronise when the product has been connected to Wi-Fi and Rointe Connect app. To set the day and time, please press the button on the keypad to access the Main Menu. -
Page 14: Main Menu
To lock the keypad manually, please hold and press the button AND the button TOGETHER for 3 seconds. The symbol will appear on the display panel and the keys will not respond. To unlock the keypad manually, please hold and press the button AND the button TOGETHER for 3 seconds. - Page 15 ROME Digital electric connected D.H.W. unvented heater with low consumption • Adjust display backlight brightness This allows you to change the brightness of the display panel in both the STAND- BY and ON modes separately. To change the brightness of the display panel ensure the icon is highlighted and press the button to confirm.
-
Page 16: Energy Sub-Menu
7.6.2. Main Menu: Energy sub-menu The ‘Energy’ sub-menu provides access to functions related to energy management of the product. To access, select the icon displayed in the Main Menu screen and press to confirm. Use the buttons to move across the different options on the sub- menu to choose your function and press to confirm. -
Page 17: Equilibrium / Balance Sub-Menu
ROME Digital electric connected D.H.W. unvented heater with low consumption • Effective Power function To check the Effective Power status of your product, ensure the icon is highlighted in the ‘Energy’ sub-menu and press the button to access. The display panel will then show a status according to the current state of consumption of the product: •... -
Page 18: Program Sub-Menu
7.6.4. Main Menu: Program sub-menu This section explains the operational aspects of your product in its various functions and modes. What are the functions of MANUAL, AUTOMATIC and PILOT WIRE functions? This function allows you to change the product between the COMFORT, ECO MANUAL and ANTI-FROST modes and to change the temperature (see section 7.4.). - Page 19 ROME Digital electric connected D.H.W. unvented heater with low consumption On the display panel, the symbol will appear for the AUTOMATIC function and the symbol for the MANUAL function. • Programming options To choose a program for your product you MUST be in AUTOMATIC mode. Please see previous section for details on how to adjust to AUTOMATIC mode.
- Page 20 STEP 3 - Select the Days The days of the week will start flashing on the display panel and show as DAY 1, DAY 2, DAY 3 etc. Use the buttons to move forwards or backwards through the days. Press to select the day or days that you wish to include in your AUTOMATIC program.
- Page 21 ROME Digital electric connected D.H.W. unvented heater with low consumption • Enable / Disable functions To access the Enable/Disable function, ensure the icon is highlighted in USER the ‘Program’ sub-menu and press the button to access. FUNCTION Use the buttons to move up and down respectively to select ON to enable or OFF to disable.
-
Page 22: Guidance
• If water is seen dripping through the tundish at any time switch off the electricity supply immediately and call the installer or the Rointe Technical Service department on 0203 321 5929. 10. Servicing and maintenance •... -
Page 23: Safety Precautions
Digital electric connected D.H.W. unvented heater with low consumption mains electricity supply. • Only use spare parts authorised by Rointe. The use of other parts will invalidate the warranty. • Drain the cylinder – When draining the cylinder, always switch off the product. Turn off the water supply at the stopcock (see Figure 2 on page 7). -
Page 24: Rointe Product Guarantee
ROINTE. Any incident that you might detect in your ROINTE product can be sorted by the product seller or quickly by the manufacturer. Please contact ROINTE by telephoning 0203 321 5929 for Technical Support. - Page 25 SERIAL NUMBER ROME 13.1. ROINTE guarantees that there are no material defects of design or manufacture at the time of original acquisition and guarantees the cylinder for a period of 60 months and any electronic and electrical components for 24 months, provided that they have not been modified in any way.
- Page 26 13.2.8. The product has not been subjected to excessive pressure or electrolytic actions from dissimilar materials or attack from salt deposits. 13.3. The Technical Service department of ROINTE will advise you if you need to purchase any parts not covered under the guarantee or out of guarantee.
-
Page 27: European Directive
The symbol of the container crossed out over a horizontal line is marked on all of ROINTE products to remind the consumer of the obligation to separate them on disposal. The consumer should contact the local authority or original point of sale to learn more about the correct disposal of this product. - Page 28 ROME Digital electric connected D.H.W. unvented heater with low consumption SERVICE RECORD DETAILS Before completing the appropriate Service Interval Record below, please ensure you have carried out the service as described in the manufacturer’s instructions and in compliance with all relevant codes of practice.
-
Page 31: Dimensions & Technical Characteristics
ROME Digital electric connected D.H.W. unvented heater with low consumption 16. Dimensions & Technical Characteristics 470 mm FUNCTIONS Anti-frost / Comfort / ECO / User mode Manual / Automatic function TFT screen with customisable colours Anti-legionella function Temperature evolution function TECHNICAL INFORMATION 24/7 programming Ceramic heating element... - Page 32 ROINTE UK Catalyst House, 720 Centennial Court, Centennial Park Elstree, Herts, WD6 3SY 0203 321 5928 0208 953 5861 Technical Support 0203 321 5929 E: support@rointe.co.uk www.rointe.co.uk MROTUK21V1...
