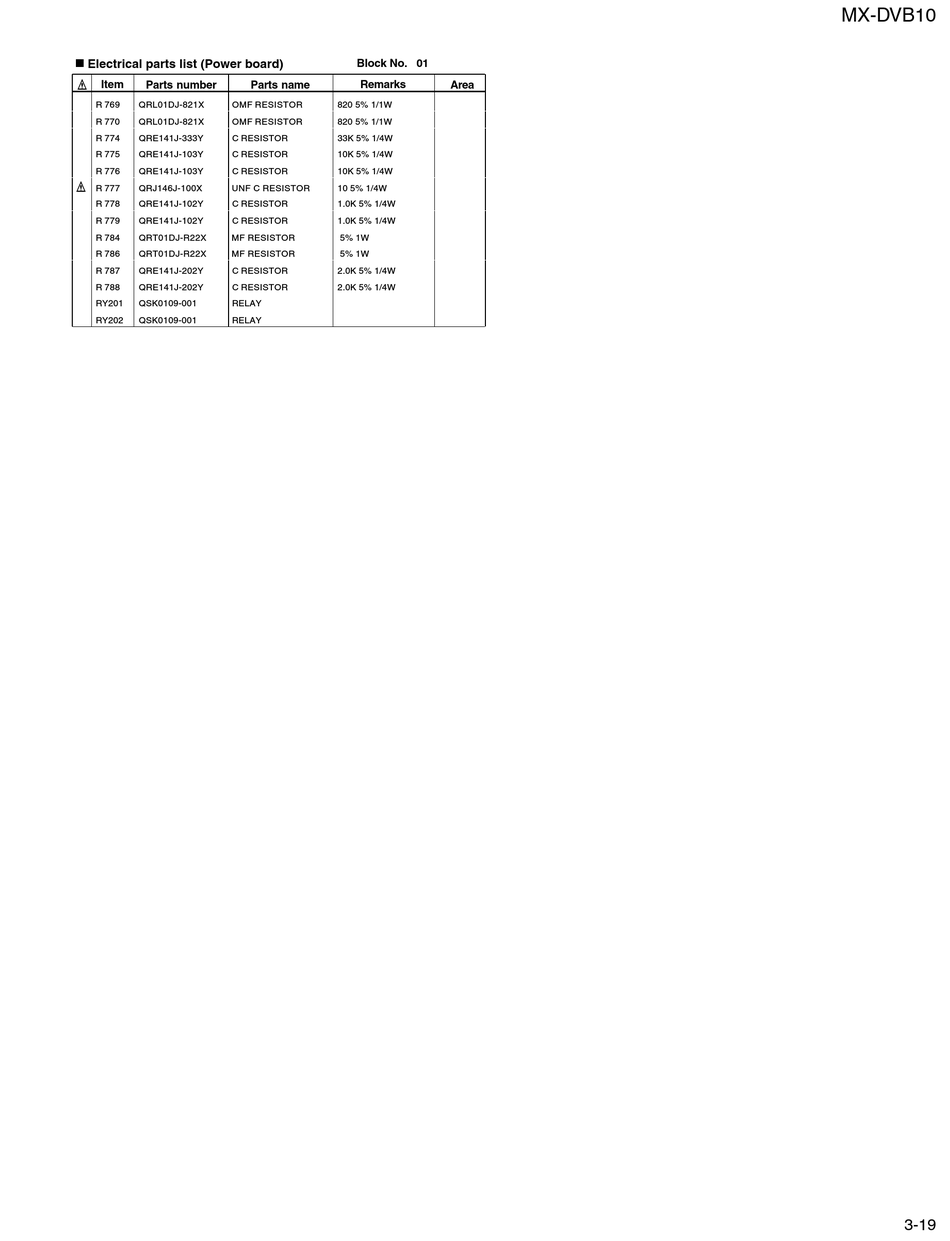

Electrical parts list (Power board)
A
Item Parts number Parts name
R 769 QRL01DJ-821X OMF RESISTOR
R 770 QRL01DJ-821X OMF RESISTOR
R 774 QRE141J-333Y C RESISTOR
R 775 QRE141J-103Y C RESISTOR
R 776 QRE141J-103Y C RESISTOR
A
R 777 QRJ146J-100X UNF C RESISTOR
R 778 QRE141J-102Y C RESISTOR
R 779 QRE141J-102Y C RESISTOR
R 784 QRT01DJ-R22X MF RESISTOR
R 786 QRT01DJ-R22X MF RESISTOR
R 787 QRE141J-202Y C RESISTOR
R 788 QRE141J-202Y C RESISTOR
RY201 QSK0109-001 RELAY
RY202 QSK0109-001 RELAY
Block No. 01
Remarks Area
820 5% 1/1W
820 5% 1/1W
33K 5% 1/4W
10K 5% 1/4W
10K 5% 1/4W
10 5% 1/4W
1.0K 5% 1/4W
1.0K 5% 1/4W
5% 1W
5% 1W
2.0K 5% 1/4W
2.0K 5% 1/4W
