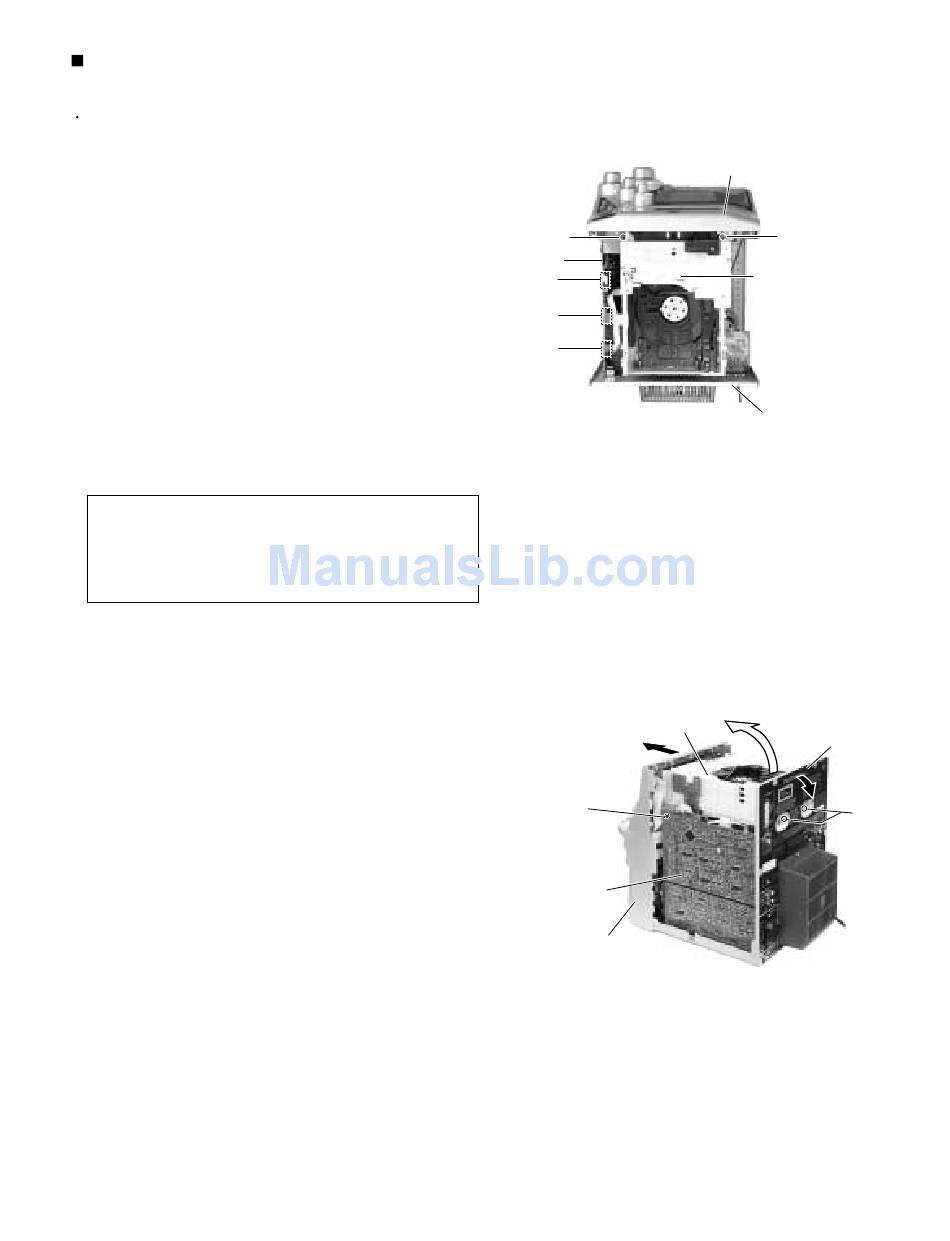

Removing the DVD changer mechanism
assembly
Prior to performing the following procedures, remove
the metal cover and the tuner board.
1. Disconnect the card wire from the connectors
CN540, CN541 and CN542 on the main board.
2. Remove the two screws marked D on the upper side
of the body and two screws marked F on the back of
rear panel.
3. Remove the plastic rivet attaching the main board.
4. Pull both the rear panel and the front panel assembly
to the outside, then remove the DVD changer
mechanism assembly by lifting the rear part of the
assembly.
CAUTION: To prevent damage to the DVD fitting,
be sure to pull both the rear panel and
the front panel assembly enough to
remove the DVD changer mechanism
assembly.
(See Fig.5 to 6)
Main board
DVD changer mechanism assembly
Front panel assembly
Front panel assembly
D
CN542
CN541
CN540
Fig.5
Plastic rivet
Main board
Fig.6
MX-DVB10
D
DVD changer
mechanism
assembly
Rear panel
Rear panel
F
1-7
