JVC MX-DVB10 Service Manual page 6

MX-DVB10
Disassembly method
<Main body>

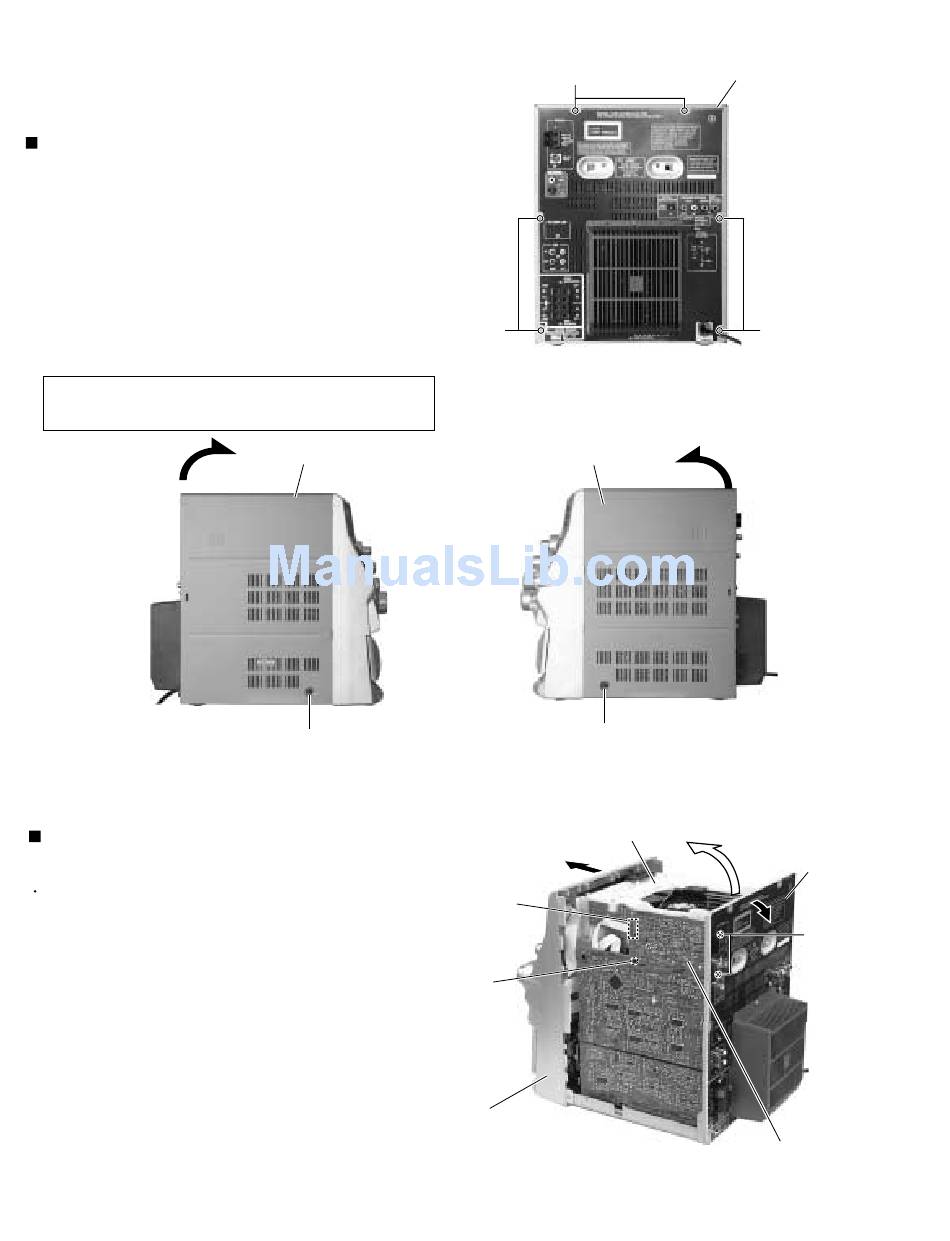

Removing the metal cover
1. Remove the six screws marked A on the back of the
body.
2. Remove the two screws marked B on both sides of
the body.
3. Remove the metal cover from the body by lifting the
rear part of the cover.
CAUTION: Do not break the front panel tab fitted to
the metal cover.
Removing the tuner board
Prior to performing the following procedures, remove
the metal cover.
1.
Disconnect the card wire from connector CN1 on the
tuner board.
2.
Remove the plastic rivet fixing the tuner board.
3.
Remove the two screws marked C on the back of the
body.
1-6
(See Fig.1 to 3)
Metal cover
B
Fig.3
(See Fig.4)
A
A
Metal cover
B
DVD changer mechanism assembly
CN1
Plastic rivet
Front panel
assembly
Metal cover
A
Fig.1
Fig.2
Rear panel
Tuner board
Fig.4
C
