JVC MX-DVB10 Service Manual page 9

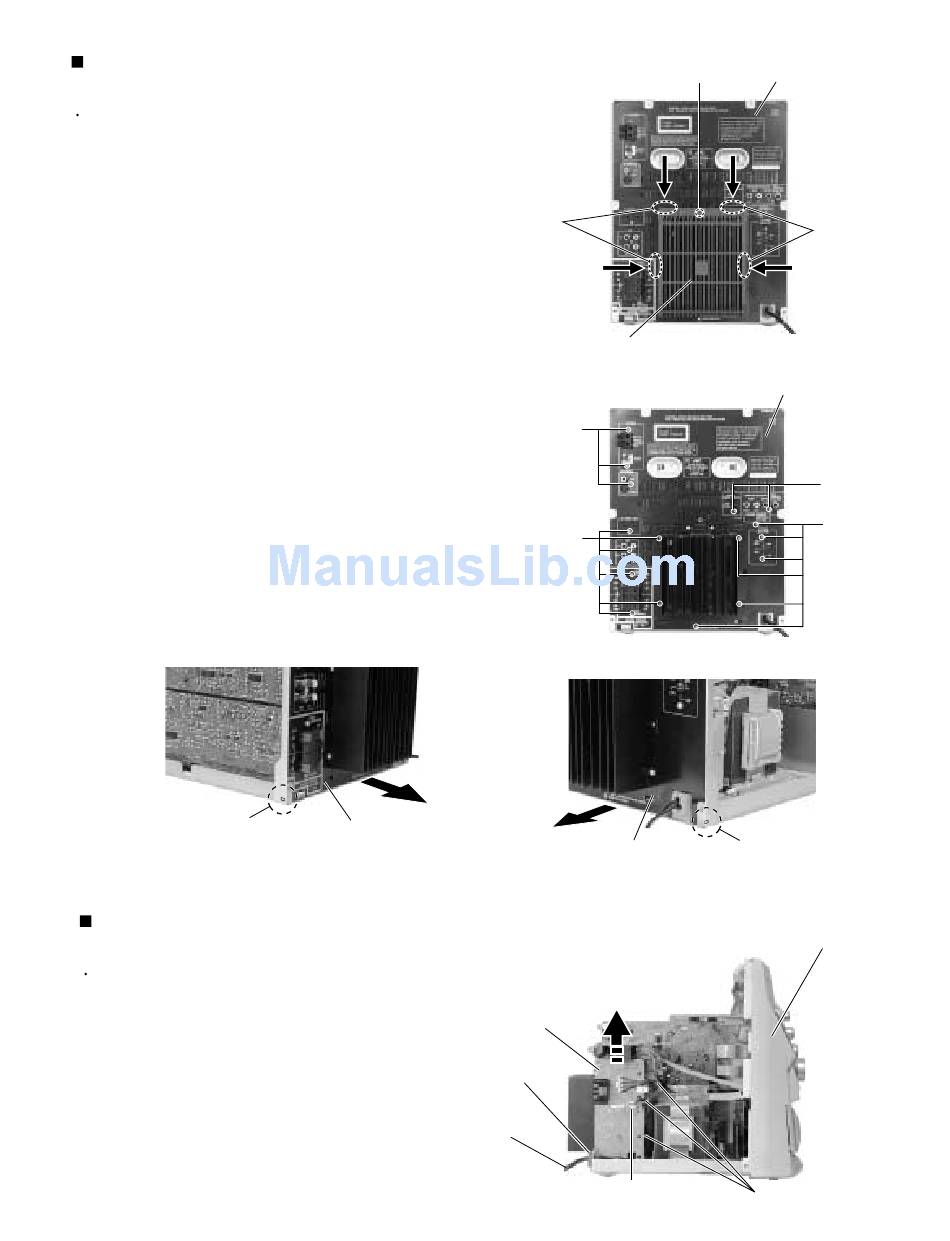

Removing the rear cover / rear panel
Prior to performing the following procedures, remove
the metal cover, the tuner board and the DVD
changer mechanism assembly.
1. Remove the screw marked H attaching the rear
cover on the back of the body.
2. Push each tab of the four joints marked b in the
direction of the arrow and release.
3. Remove the seventeen screws marked I attaching
the rear panel.
4. Release the joints marked c on each lower side of
the rear panel using a screwdriver and remove the
rear panel backward.
Joint c
Removing the power cord
Prior to performing the following procedures, remove
the metal cover, the tuner board the DVD changer
mechanism assembly and rear panel.
1.
Move the power cord stopper upward and pull out it
from the base chassis.
2.
Disconnect the power cord from connector CN250
on the power supply board.
3.
Remove the tie band from the power supply board.
(See Fig.12 to 15)
Rear panel
Fig.15
(See Fig.16)
Joint b
Rear cover
I
I
Rear panel
Power supply
board
Power cord
stopper
Power cord
CN250
Fig.16
MX-DVB10
H
Rear panel
Joint b
Fig.12
Rear panel
I
I
Fig.13
Joint c
Fig.14
Front panel assembly
Tie band
1-9
