flexotron controllers for ventilation and a/c
Contents:
A: General Information
B: Displays and Operating Controls
C: Commissioning
D: Operation
A: General Information
Congratulations! You have chosen a Sauter controller - a
quality product from one of the leading manufacturers of control
technology equipment for the heating, ventilation and air
conditioning industry.
Your controller features extremely simple operation combined
with the very latest microprocessor technology.
Proceed according to these Operating Instructions to adapt the
device to your installation and your wishes. For further
information on the controller and the various applications,
please consult Manual 7010047.
A1: Safety warnings
Special care is required in order to prevent injuries, damage by
fire or damage to equipment. After the device has been
installed by a specialist in accordance with the Installation
Instructions enclosed with it, please read these instructions on
operating it.
A2: Key
SP
abcd
Setpoint
20.0°C
Act. val.
17.3°C
B: Displays and Operating Controls

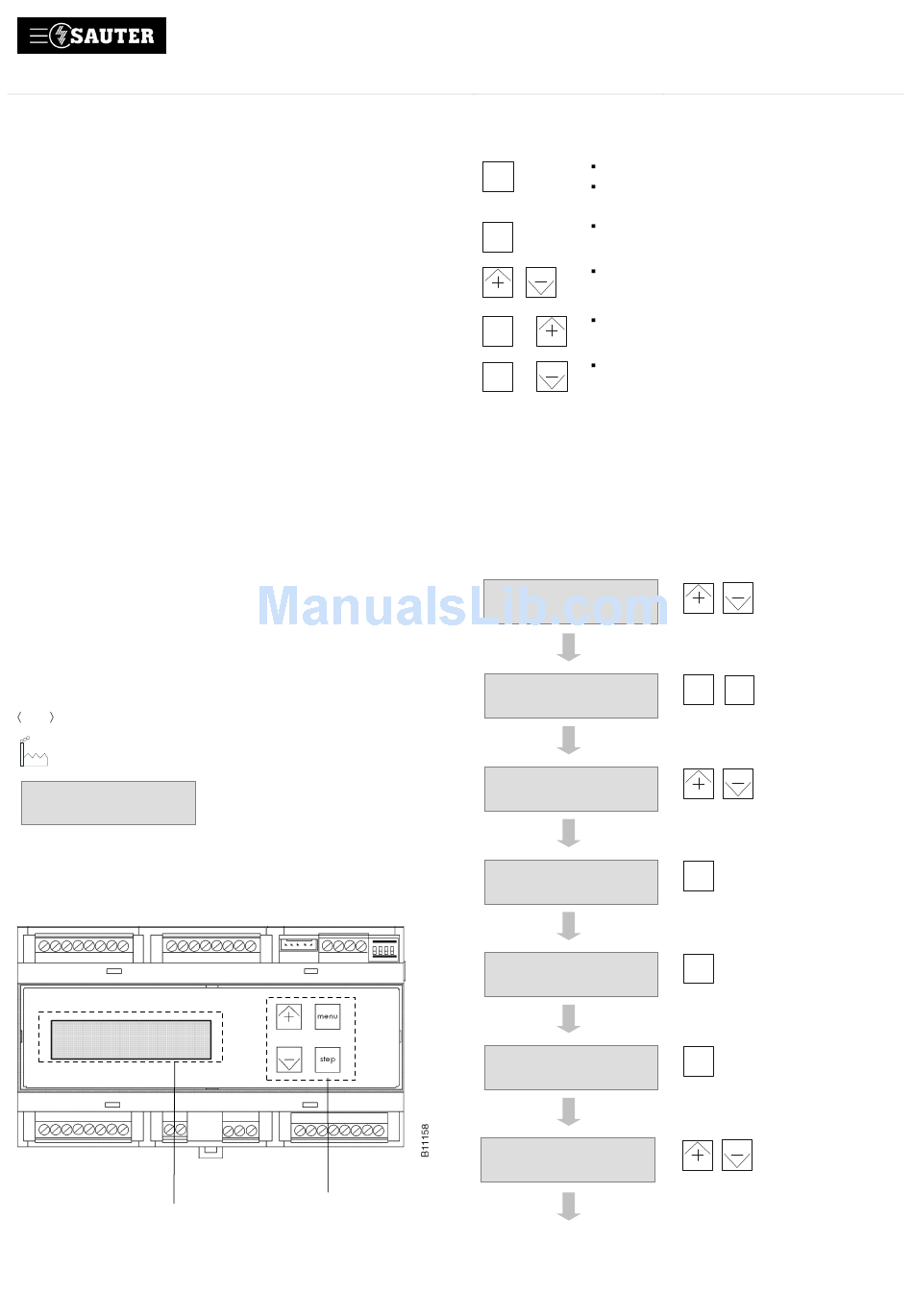

B1: Front view
Display
P100002032 003 A
Switching point
Key labelled 'abcd'
Factory settings
Basic display showing room setpoint
and actual room value
Input keys
RDT724 F002/F022
B2: Operating controls
Load and confirm or save settings
menu
Scroll in steps of 100
Scroll (single steps)
step
Change values or settings. Press for longer to
change values in large steps
,
Scroll (steps of 10)
+
step
Scroll backwards (single steps)
step
+
C: Commissioning
Important:
Before switching the installation on for the first time, disconnect
the main fuses for all fans and pumps. All the functions should
then be tested in a 'dry run', as it is known.
C1: Operating for the first time
Language
english
Language/Sprache
deutsch
A001:Application
0:
None
A001:Application
204:
CTR HCE
Load new appl.?
menu=execute
A001:Application
204:
CTR HCE
A110:E1 function
3:
Temp.Ni1000
flexotron
700
®
Select language
,
Accept language
menu
step
,
Select application
,
Confirm selection
menu
Load application
menu
Call up first
step
parameter
Adjust value
,
E
1/6
