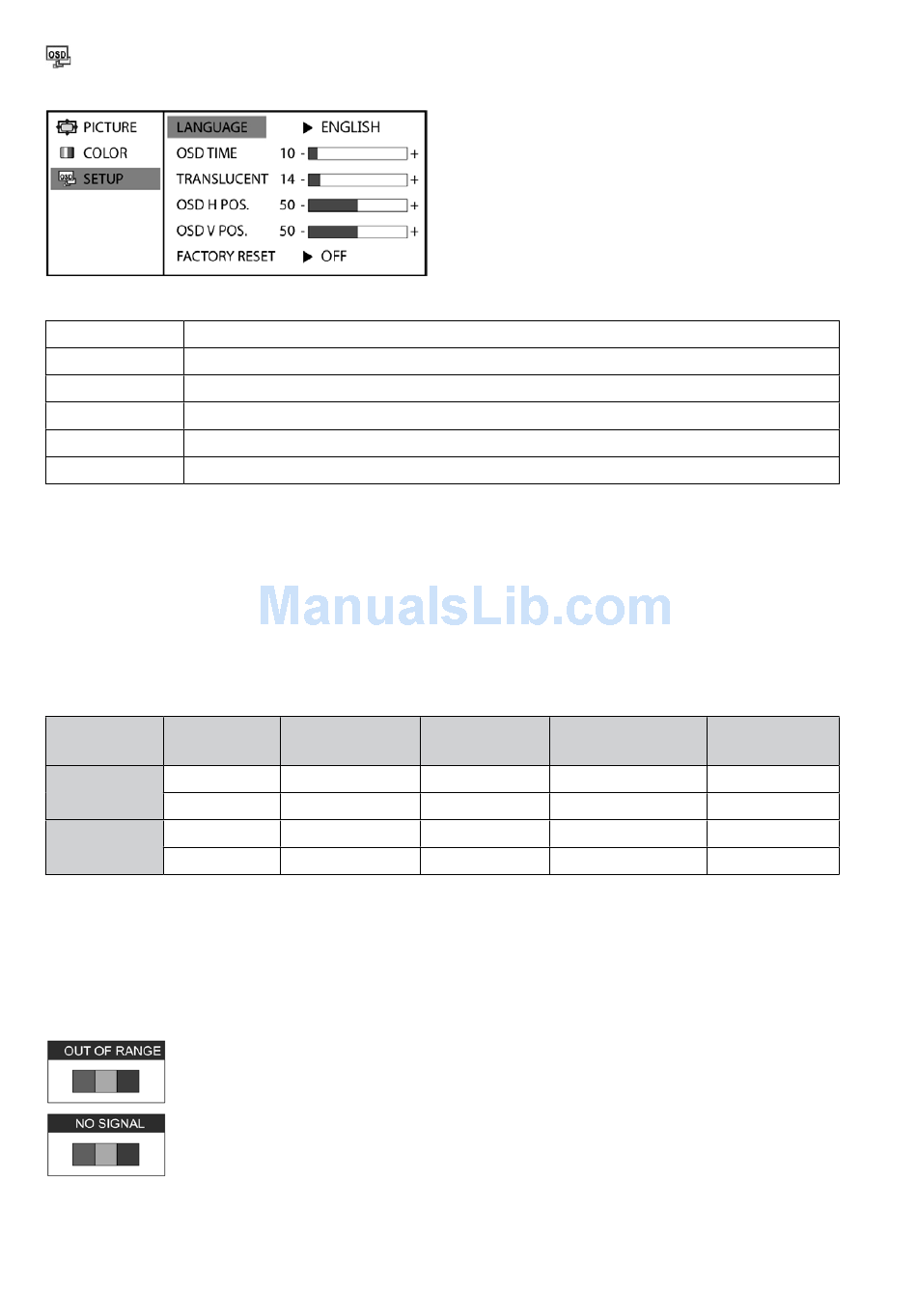

SETUP
LANGUAGE Change language English, French, German, Spanish, Italian, Japanese, Korean
OSD TIME The number of seconds that the OSD will remain visible before disappearing
TRANSLUCENT Change the opaqueness of the background of the OSD
OSD H POS. Move the OSD window to the horizontal direction
OSD V POS. Move the OSD window to the vertical direction
FACTORY RESET A factory default reset will clear all of OSD information

6.4 Display Modes

For the display modes listed below, the screen image has been optimized during manufacture.
Mode Resolution
640 x 480
VGA
640 x 480
800 x 600
SVGA
800 x 600

6.5 OSD Message

. The screen shows this when signal is out of range.
. The screen shows this when there is no signal.
Horizontal Vertical
Frequency (KHz) Frequency (Hz)
3,469 59,940
37,500 75,000
37,880 60,300
46,875 75,000
0
Pixel Clock Sync Polarity
Frequency (KMHz)
5,75
3,500
40,000
49,500
(H/V)
- / -
- / -
+ / +
+ / +
