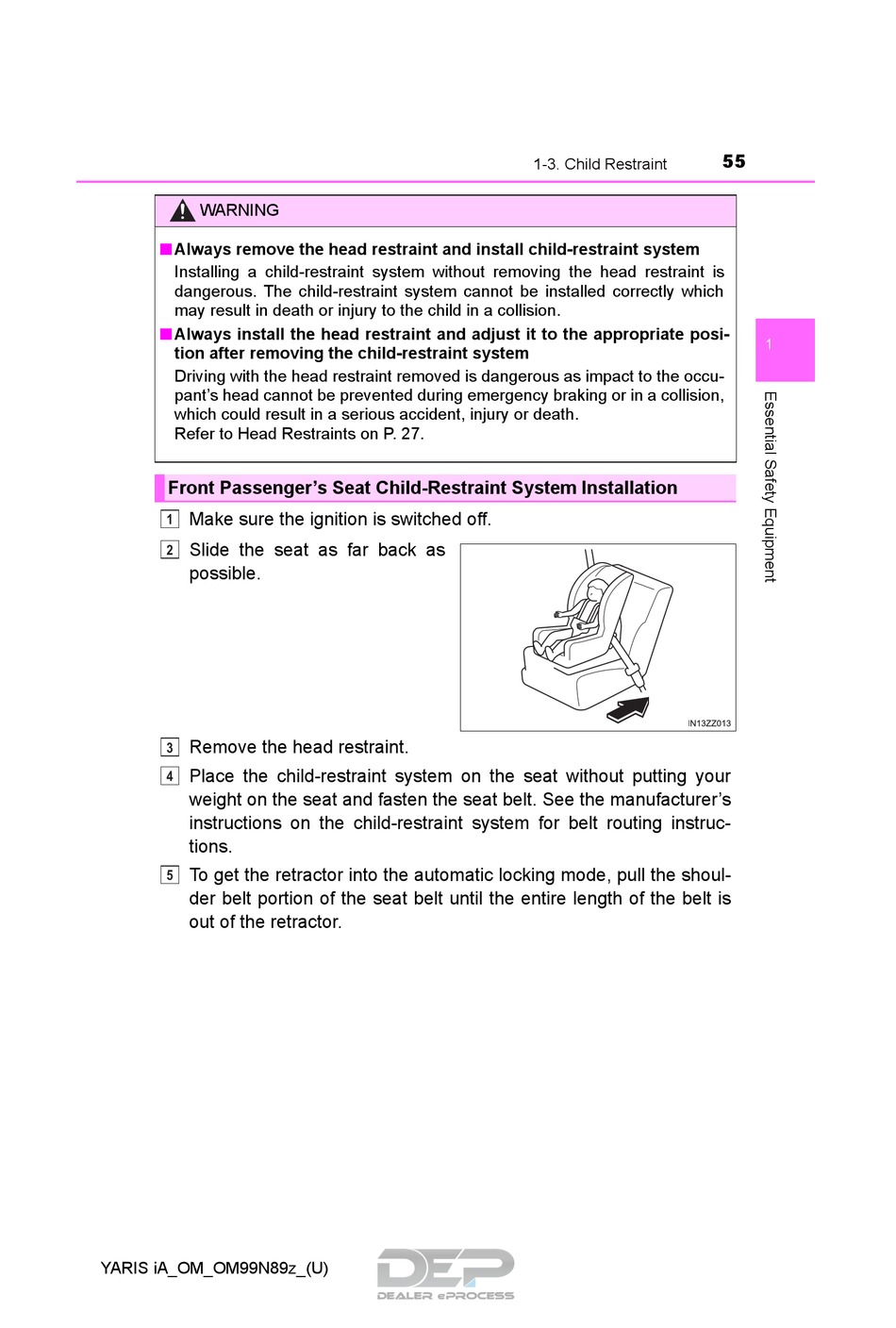

Front Passenger’s Seat Child-Restraint System Installation - Toyota YARIS iA 2017 Manual

WARNING
Always remove the head restraint and install child-restraint system
■
Installing a child-restraint system without removing the head restraint is
dangerous. The child-restraint system cannot be installed correctly which
may result in death or injury to the child in a collision.
Always install the head restraint and adjust it to the appropriate posi-
■
tion after removing the child-restraint system
Driving with the head restraint removed is dangerous as impact to the occu-
pant's head cannot be prevented during emergency braking or in a collision,
which could result in a serious accident, injury or death.
Refer to Head Restraints on P. 27.
Front Passenger's Seat Child-Restraint System Installation
Make sure the ignition is switched off.
1
Slide the seat as far back as
2
possible.
Remove the head restraint.
3
Place the child-restraint system on the seat without putting your
4
weight on the seat and fasten the seat belt. See the manufacturer's
instructions on the child-restraint system for belt routing instruc-
tions.
To get the retractor into the automatic locking mode, pull the shoul-
5
der belt portion of the seat belt until the entire length of the belt is
out of the retractor.
YARIS iA_OM_OM99N89z_(U)
1-3. Child Restraint
55
1
