Toyota Yaris iA 2017 Manual

BUTTON OVERVIEW

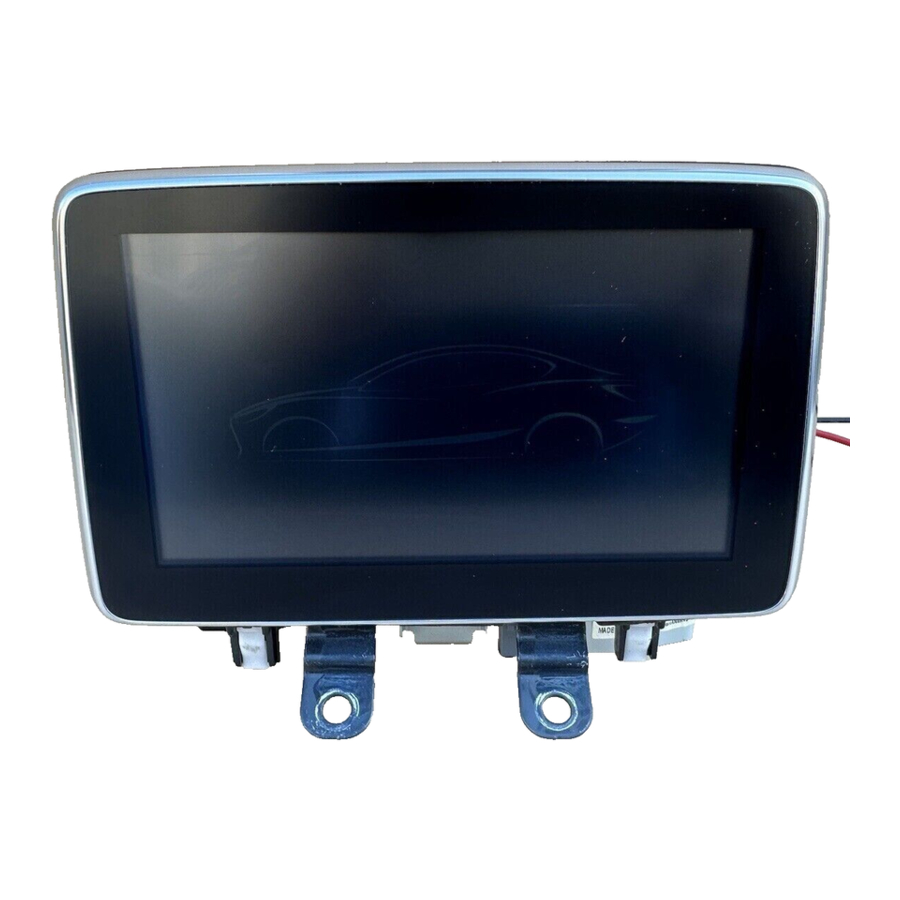

TOUCHSCREEN

BUTTON OVERVIEW - TOUCHSCREEN

– use your finger to control selected functions.


Applications
Information such as average fuel economy, maintenance, and warnings can be verified.


Entertainment
Operates various audio sources. The audio source most recently used is displayed.


Communication
Bluetooth related functions are available.


Navigation
Navigation screen is displayed (if equipped). A compass is shown for vehicles without navigation.


Settings
Overall setting menu (Such as display, sound, Bluetooth® and Language).

COMMANDER SWITCH

BUTTON OVERVIEW - COMMANDER SWITCH

*Depending on the grade and specification, the screen display may differ.
**The audio source most recently used is displayed. An audio source which cannot be used at that time is skipped and the previous audio source is displayed.
*** If the SD card for the navigation system is not inserted, the compass indicating the direction in which the vehicle is moving is displayed. The compass may not indicate the correct bearing when the vehicle is stopped or traveling at a slow speed.

PAIRING BLUETOOTH PHONE FOR THE FIRST TIME

Yaris iA Display Audio and Display Audio with Navigation1

To use the hands-free3 features of the Yaris iA Display Audio system, it is necessary to first pair a compatible Bluetooth2 mobile device to the vehicle. This operation cannot be performed while driving. You can pair up to 7 devices.

  1. Activate the Bluetooth 2 connection setting of your mobile device. [See Figures 1 & 2]
    PAIRING BLUETOOTH PHONE FIRST TIME - Step 1
  2. Using the remote commander knob or touchscreen, select "Settings " from the home screen of the vehicle display (far right circle)
  3. Within "Settings", you will see tabs on the top. Hit the >> arrow until the "Devices" tab is available. Select "Devices". [See Figure 3]
    PAIRING BLUETOOTH PHONE FIRST TIME - Step 2
  4. Within the "Devices" tab, select "Bluetooth".[See Figure 3]
  5. Within the "Bluetooth" menu, select "Add New Device". [See Figure 4]
    PAIRING BLUETOOTH PHONE FIRST TIME - Step 3
  6. On your mobile device, find and select "My Toyota" or your vehicle within the Bluetooth device list.
  7. Verify the PIN. Select "Pair" on your device and select "Yes" on the head unit. [See Figure 5]
    PAIRING BLUETOOTH PHONE FIRST TIME - Step 4
  8. To enable text message notification on your mobile device, follow the appropriate directions below:


iPhone4: Select the icon next to the paired vehicle on your phone, and switch the "Show Notifications" toggle to on. [See Figure 6]


Android: Your device might pop up two messages asking to allow the vehicle head unit to access your contacts and messages. You may choose to select "Yes" to both. [See Figure 7]

  1. Availability & accuracy of the information provided by the navigation system is dependent upon many factors. Use common sense when relying on information provided. Services & programming subject to change. Services not available in every city or roadway. Updates may be available from your dealer at an additional cost. See Owner's Manual for details.
  2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth® enabled phone must first be paired. Phone performance depends on software, coverage & carrier.
  3. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it will distract you.
  4. iPhone is not included.

SWITCHING AUDIO SOURCE

  1. Press HOME button on the Commander swtich.
  2. Using touch or the Commander switch to select .
    SWITCHING AUDIO SOURCE - Step 1
    • The audio system displays the current audio source screen or displays the audio source selection screen.
      SWITCHING AUDIO SOURCE - Step 2
  3. Touch the music note icon and select the desired audio source.

PRESETTING A STATION

Radio mode has a preset function, which can store up to 50 stations from any of the AM or FM stations.

  1. To save a radio preset, tune to your favorite radio channel.
  2. Press the "Favorites" icon
    PRESETTING A STATION - Step 1 - Press Favorites
  3. At the favorites screen select Add/Edit Radio Favorites
    PRESETTING A STATION - Step 2
  4. Touch add <current station>

Be sure to obey traffic regulations and maintain awareness of road and traffic conditions at all times.

AUDIO SOUND SETTINGS

  1. Press HOME button on the Commander swtich.
  2. Using touch or the Commander switch to select
    SELECTING AUDIO SOUND SETTINGS - Step 1
  3. Select the tab and select the sound setting you would like to change.
    SELECTING AUDIO SOUND SETTINGS - Step 2

BEFORE USING THE SYSTEM

To use the navigation system (if equipped), the SD card containing the map information needs to be inserted in the SD card slot.
Please see the Owner's Manual for the location of SD card slot.

DESTINATION INPUT BY ADDRESS

  1. If it's hidden, show the navigation menu by selecting , then select .
    USING DESTINATION INPUT BY ADDRESS - Step 1
  2. Select "Find Address"
    USING DESTINATION INPUT BY ADDRESS - Step 2
  3. Select "City or Zip code".
    USING DESTINATION INPUT BY ADDRESS - Step 3
    • By default, the navigation system proposes the country and city where you are.
  4. Enter the Street Name.
    USING DESTINATION INPUT BY ADDRESS - Step 4
  5. Select the street from the list.
    USING DESTINATION INPUT BY ADDRESS - Step 5
  6. Enter house number then select the three horizontal line icon on bottom right .
    USING DESTINATION INPUT BY ADDRESS - Step 6
  7. The system shows the destination. Select "Navigate to"
    USING DESTINATION INPUT BY ADDRESS - Step 7
  8. Select "Start" to start the navigation.
    USING DESTINATION INPUT BY ADDRESS - Step 8

Be sure to obey traffic regulations and maintain awareness of road and traffic conditions at all times.

SETTING HOME DESTINATION

You can add any location to Favorites, the list of frequently used destinations. Your home address can be registered/changed by selecting "Home" within the Favorites menu.

  1. Press the favorites button on your remote commander
  2. Scroll to the navigation tab on the top right and select Home.
    SETTING HOME DESTINATION - Step 1
  3. Complete the fields with your home address and press the bottom right icon .
    SETTING HOME DESTINATION - Step 2
  4. On the navigation verification screen, select "Set as Home"
    NOTE: We suggest using a location near your home as your home destination, rather than your actual home address
    SETTING HOME DESTINATION - Step 3
  5. Press "Ok" to confirm.
    SETTING HOME DESTINATION - Step 4

DESTINATION INPUT BY VOICE RECOGNITION

  1. Press the button.
    USING DESTINATION INPUT BY VOICE RECOGNITION
    • The voice command system is activated.
  2. After "Say a command" is output from the speaker and the beep sound is heard, say your commands such as "New Destination", "Address".
  3. Follow the voice prompt to continue destination input by voice recognition.

INFORMATION
Wait for the confirmation beep before speaking a command.

  • Voice commands may not be recognized if:
    • Spoken too quickly.
    • Spoken at a low or high volume.
    • The windows are open.
    • Passengers are talking while voice commands are spoken.
    • The air conditioning speed is set high.
    • The air conditioning vents are turned towards the microphone.
    • In the following conditions, the system may not recognize the command properly and using voice commands may not be possible:
    • The command is incorrect or unclear. Note that certain words, accents or speech patterns may be difficult for the system to recognize.
    • There is excessive background noise, such as wind noise

DESTINATION INPUT – POI BY NAME

  1. If it's hidden, show the navigation menu by selecting , then select .
    USING DESTINATION INPUT BY POI BY NAME - Step 1
  2. Select "Point of Interest".
    USING DESTINATION INPUT BY POI BY NAME - Step 2
  3. Select "Filter by Name".
    USING DESTINATION INPUT BY POI BY NAME - Step 3
  4. Using the keyboard, enter the name of the POI (point of interest) and then select the check mark .
    USING DESTINATION INPUT BY POI BY NAME - Step 4
  5. Select Search and select the POI from the result list.
    USING DESTINATION INPUT BY POI BY NAME - Step 5
  6. Select "Navigate to".
    USING DESTINATION INPUT BY POI BY NAME - Step 6
  7. Select "Start" to start the navigation.
    USING DESTINATION INPUT BY POI BY NAME - Step 7

DESTINATION INPUT – POI BY CATEGORY

  1. If it's hidden, show the navigation menu by selecting , then select .
    USING DESTINATION INPUT BY POI CATEGORY - Step 1
  2. Select "Point of Interest", then "Search Area".
    USING DESTINATION INPUT BY POI CATEGORY - Step 2
  3. Select the area around which the Place should be searched for: "Near Here", "Along Route", "Near Destination", "In a City". Some may not be selectable. After selection, select the back arrow.
    USING DESTINATION INPUT BY POI CATEGORY - Step 3
  4. Select filter by category such as cafe or bar.
    USING DESTINATION INPUT BY POI CATEGORY - Step 4
  5. On certain categories, there will be sub-categories. you may select specific sub-categories or search all sub-categories. Select Search.
    USING DESTINATION INPUT BY POI CATEGORY - Step 5
  6. Select the POI from the result list. Once selected, select "Navigate to" and then "Start".
    USING DESTINATION INPUT BY POI CATEGORY - Step 6

ROUTE CALCULATION AND RECALCULATION

The navigation system calculates the route based on your preferences:
SELECTING ROUTE CALCULATION/RECALCULATION METHODS

  • Route planning methods:
    • Fast: Gives a quick route if you can travel at or near the speed limit on all roads.
    • Short: Gives a route that has the smallest total distance of all possible routes.
    • Economical: This method combines the merits of the Fast and Short routes: The navigation system makes a calculation for the Fast route, but it also includes other roads in the calculation in consideration of fuel economy.
    • Easy: Results in a route with fewer turns and no difficult maneuvers. With this option, you can make the navigation system take, for example, the highway/freeway instead of a series of smaller roads or streets.
  1. Click the Route icon when the system is navigating to a set destination
  2. Scroll down and select Route Alternative
  3. Select route preference choices
  4. Select the back arrow to go back to the navigation screen
