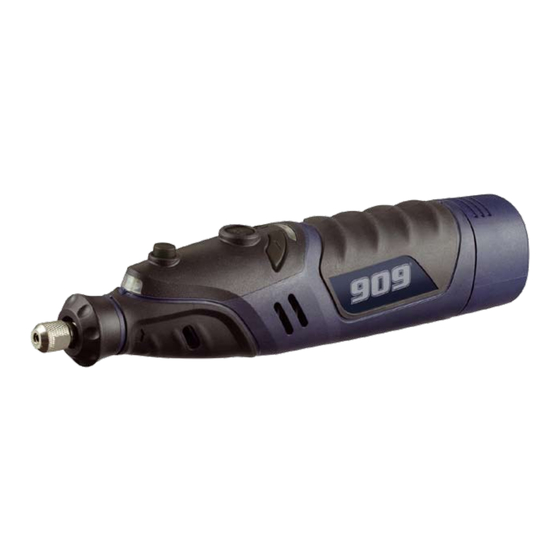

- Page 1 INSTRUCTION MANUAL 909004DEC ROTA RY TOOL W IT H FL E X IBL E SH A F T & 82 PIECE ACCESSORY K IT...
-
Page 2: Table Of Contents
CONTENTS Warranty Power Tools Warranty For full details please visit us at www.909.com Introduction Environmental protection Introduction Specifications Description of symbols General safety rules Additional safety rules for angle grinders Safety instructions for all operations Additional safety instructions for grinding and cutting-off operations... -
Page 3: Environmental Protection
Manual before using your new 909 Power Tool. Take special care to heed the Cautions and Warnings. Conforms to relevant standards Your 909 power tool has many features that will make for electromagnetic compatibility. your job faster and easier. Safety, performance, and... -
Page 4: General Safety Rules
General safety rules f) To reduce the risk of electric shock, the manufacturer recommends the use of a residual current device WARNING. Read all safety warnings and all instructions. with a rated residual current of 30mA or less at Failure to follow the warnings and instructions may result in all times. -
Page 5: Additional Safety Rules For Angle Grinders
4) Power tool use and care i) Children should be supervised to ensure that they do not play with the appliance. a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will 5) Service do the job better and safer at the rate for which it was... -
Page 6: Safety Instructions For All Operations
• Do not secure the angle grinder in a vice or work bench Safety instructions for all operations and use it as a static grinder. It can lead to serious injury. Safety Warnings Common for Grinding, • Never apply excessive pressure to the disc. It might Abrasive Cutting-Off Operations: shatter causing personal injury. - Page 7 the rotating accessory and run the power tool at n) Regularly clean the power tool’s air vents. maximum no-load speed for one minute. Damaged motor’s fan will draw the dust inside the housing and accessories will normally break apart during this test time. excessive accumulation of powdered metal may cause electrical hazards.
-
Page 8: Additional Safety Instructions For Grinding And Cutting-Off Operations
c) Do not position your body in the area where power e) Do not use worn down wheels from larger power tool will move if kickback occurs. Kickback will propel tools. Wheel intended for larger power tool is not suitable the tool in direction opposite to the wheel’s movement at for the higher speed of a smaller tool and may burst. -
Page 9: Safety Warnings Specific For Polishing Operations
Safety Warnings Specific for Speed adjustment Polishing Operations: The multifunction power tool is equipped with speed control. Do not change the speed while the tool is working. The a) Do not allow any loose portion of the polishing bonnet speed switch is located on the top of the tool. Speed or its attachment strings to spin freely. -
Page 10: Additional Safety Instructions For The Charger
• Do not place any object on to, or allow anything to rest • Do not plug anything other than your 909 tool into the on the charger. charger, as other objects may touch dangerous voltage •... - Page 11 The use of an improper extension cord could to the battery pack and battery safety cause the risk of fire, electric shock or electrocution. • Use only the 909 batteries supplied with the 909 Tool or • Never attempt to connect two chargers together. 909-approved replacements.
-
Page 12: When To Charge The Battery
Due to modern mass production techniques, it is unlikely recharge it. Ensure the battery pack clip is in good that your 909 Power Tool is faulty or that a part is missing. condition and will not allow the pack to fall free from the If you find anything wrong, do not operate the tool until the tool. -
Page 13: Know Your Product
Know your product 1. On/Off / LED switch 10. Flexible Shaft Collet Cover 2. Variable speed control buttons 11. Battery 3. Spindle Lock 12. Battery Charger 4. Flexible Shaft 5. 82 Pc accessory Kit 6. Air vents 7. Collet nut 8. - Page 14 3 Pc Collets (Ø1.6, Ø2.4, Ø3.2mm) • Soft Carry Bag • 2 Pc Felt Wheel (Ø25 x 6mm, Ø13 x 9mm) Accessories for 909004DEC Accessory Description Qty Accessory Use Accessory Description Qty Accessory Use For tightening & 15 red Sanding drums and...
- Page 15 Accessory Description Qty Accessory Use Accessory Description Qty Accessory Use An extremely convenient way to drill Ø2.0mm For use with accessories. Ø1.6mm, holes with more detail Ø2.4mm Ø2.4mm, Ø3.2mm Ø3.2mm and precision. High speed drill bits Collet Ideal for cleaning For use with sanding and reshaping grinding bands.
- Page 16 4. Connect the mains plug Fitting and removing of the battery charger to a the battery pack suitable power point. To remove the battery pack (11) 5. The battery indicator will from the rotary tool, firmly press glow red to show that there the release tab back is power to the battery of the battery pack, and slide...
- Page 17 Switch on Quick reference guide 1. Press the On/Off switch / Operation Speed LED switch (1), then press Cutting metal 7-10 the Variable Speed button marked with a “+” to start Sanding wood 7-10 the tool. The machine is Cutting hard metal 7-10 now in continuous operation, and starts on the minimum...
-
Page 18: Changing Accessories
2. Remove the collet (9) and Locating a cutting / sanding disc replace with the desired 1. Locate an appropriate disc mandrel (holder) into collet (fig. F). The size of the collet (9). the collet will depend on the shaft diameter of the 2. - Page 19 Attaching the flexible shaft Changing the collet and accessories on the flexible shaft WARNING. Never bend the flexible shaft with a radius of less than 150mm (6”) when operating. Please store the Note. To change the collet or install a cutter or accessory flexible shaft in the designated compartment of the carry into the flexible shaft, follow the same general procedure as case when not in use.
