Summary of Contents for Cleveland SteamPro XVI

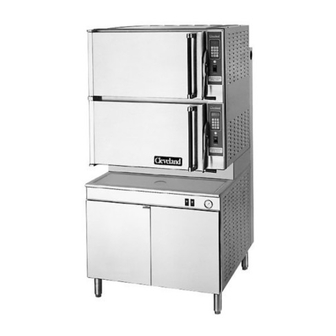

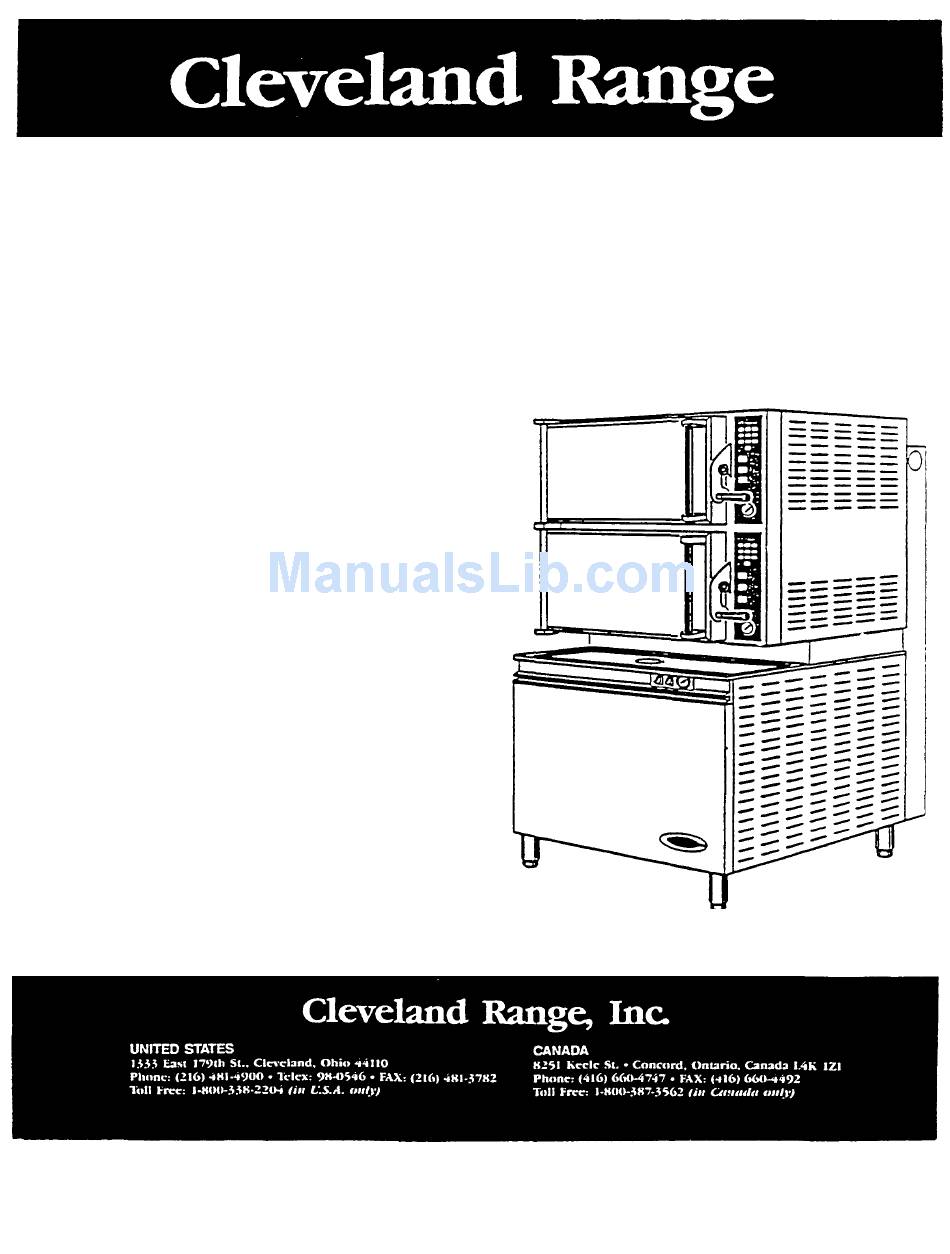

- Page 1 CLEVELAND SteamPro™ XVI PRESSURE / CONVECTION STEAMER OWNERS MANUAL Models: 9-PCEM-48-L 9-PCGM-250-L 9-PCGM-300-L 9-PCDM-L 9-PCSM-L Printed 01/90 PCS-02...
- Page 2 Cleveland ALCO PUBLICATION IMPROVEMENT RECOMMENDATION Users of this publication are encouraged to report errors, omissions and their recommendations for improving the publication. This sheet is provided for that purpose. To file a Publication Improvement Recommendation, fill in the information requested below, fold, tape and mail this prepaid business reply form.
-
Page 3: Table Of Contents
9-PCDM-L (Direct Steam) 9-PCSM-L (Steam Coil) 9-10 Inspection and Unpacking Installation Instructions Installation Policies Installation Instructions for all models 11-13 Installation Check Introduction to SteamPro XVI Ownership Operational Safety 14-15 Operational Functions 15-17 Control Panel Overview 16-17 Timer Information 16-17... -
Page 4: 9-Pcem-L (Electric)
SteamPro® XVI PRESSURE/CONVECTION STEAMER MODEL: 9-PCEM-48-L • TWO LARGE COMPARTMENTS • ELECTRIC STEAM GENERATOR 48 KW ITEM NUMBER • 900mm CABINET BASE ——————————————— JOB NAME / NUMBER__________________________________ General Specifications: • Pressure or Convection steam cooking. Each compartment independently operational in Pressure or Convection mode, user selectable •... - Page 5 • Many local codes exist and it is the responsibility of the owner and installer to comply with those codes. •Cleveland/ALCO equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are: UL, A.G.A., NSF, ASME/N.Bd., CSA, CGA, ETL, and others.
-
Page 6: 9-Pcgm-L (Gas)
SteamPro® XVI MODELS: 9-PCGM-250-L 9-PCGM-300-L PRESSURE/CONVECTION STEAMER • TWO LARGE COMPARTMENTS • GAS STEAM GENERATOR ITEM NUMBER___________________________ 250 or 300M BTU JOB NAME / NUMBER______________________ • 900mm CABINET BASE General Specifications: • Pressure or Convection steam cooking. Each compartment independently operational in Pressure or Convection mode, user selectable •... - Page 7 REAR = 0" 12.00” W.C. Min. 14.00” W.C. Max. For use only in 14.00” W.C. Max non-combustible Manufacturer must be notified if unit is to be locations Used above 2,000 ft. altitude. Cleveland/ALCO reserves right of design improvement or modification as warranted.
-
Page 8: 9-Pcdm-L (Direct Steam)
SteamPro™ XVI PRESSURE/CONVECTION STEAMER MODEL: 9-PCDM-L DIRECT STEAM TWO LARGE COMPARTMENTS 900mm CABINET BASE General Specifications: • Pressure or Convection cooking, selected by the user, can be in any combination at the same time, no restrictions • In Convection mode, cooking compartment operates without pressure, permitting door to be opened while cooking continues •... - Page 9 30.00" high. Do not connect any max. required, for other units to this drain. LEFT 0" pressures above 50 psi. REAR 0" an additional pressure reducing valve must be specified. Cleveland/ALCO reserves right of design improvement Of modification — warranted...
-
Page 10: 9-Pcsm-L (Steam Coil)
SteamPro® XVI PRESSURE/CONVECTION STEAMER MODEL: 9-PCSM-L • TWO LARGE COMPARTMENTS • STEAM COIL GENERATOR • 900mm CABINET BASE General Specifications: ITEM NUMBER________________________________________ • Pressure or Convection steam cooking. Each compartment JOB NAME / NUMBER__________________________________ independently operational in Pressure or Convection mode, user selectable •... - Page 11 50 psi, a LEFT = 0” Steam Cold Drain pressure reducing REAR =0” •3/4” IPS. Do not Scale .50 "=1’ valve must be connect to common specified. drain. Cleveland/ALCO reserves right of design improvement or modification, as warranted.
-
Page 12: Inspection And Unpacking
Many local codes exist, and it is the responsibility of the owner and installer to comply with these codes. • In no event shall Cleveland/ALCO assume any liability for damage or injury resulting from installations which are not in strict compliance with our Installation Instructions. Specifically, Cleveland/ALCO will not assume any liability for damage or injury resulting from improper installation of equipment, including, but not limited to, temporary or mobile installations. - Page 13 5. Connect COLD water supply plumbing to the line strainer. (Never connect hot water to the boiler's water fill line strainer). Constant flow pressure must be maintained between 40 and 60 psi. and not experience a pressure drop below 35 psi when other appliances are used. If the water pressure exceeds 60 psi, a pressure reducing valve must be installed in the water supply plumbing to reduce the water pressure to less than 60 psi.
-
Page 14: Installation Check
Kettles are to be connected to the “house” steam supply. INSTALLATION CHECK Proper operation of the Cleveland SteamPTO XVl Steamer is dependant upon proper installation. After the steamer has been installed, a few quick checks could save unnecessary service calls. -
Page 15: Introduction To Steampro Xvi Ownership
Installer: Please complete and mail the Installer's Checklist. INTRODUCTION TO SteamPro XVI OWNERSHIP To get the full advantage of steam cooking, Cleveland/ALCO SteamPro XVI must be properly installed. A steamer which is improperly installed, improperly used, improperly maintained or improperly repaired will create a dangerous condition and may cause injury to personnel. -
Page 16: Operational Functions
Such attempts may void the warranty on the equipment. OPERATIONAL FUNCTIONS Operation of the Cleveland SteamPro XVI Is very easy. Each operator should become familiar the following operation functions and procedures to effectively start, operate and shut down the steamer. CONTROL PANEL OVERVIEW: ————————————————————————————————————... -
Page 17: Timer Information
"MANUAL OPERATION" - Press the touch pad to operate the compartment in the Convection mode but without the use of the START/CANCEL touch pad, the TIMER TOUCH PANEL or the DIGITAL TIME DISPLAY. The green indicator light (LED 4) will come on and stay on until the touch pad is pressed again. "COMPARTMENT PRESSURE" - Use this gauge to monitor the compartment pressure. -
Page 18: Timer Programming
TIMER SETTINGS (programming) Press the "Start/Cancel" touch pad once to ensure that no time remains in the timer. Program the desired cooking time. by pressing the appropriate number pads. The time programmed will be displayed above the "Number" touch p ads. Example, pressing the "1"... -
Page 19: Start-Up And Preheat
7. Countdown timing begins. Audio signal sounds for 1 second. Countdown indicator (LED2) begins flashing. 8. "Timer" counts down to zero. Alarm sounds for 4 seconds. 9. User presses "Start/Cancel" touch pad. Digital Time Display stops flashing. 10. End of Cycle. PRESSURE STEAMING MODE ————————————————————————————————————... -
Page 20: Steaming Operation
2. Press the red "power on-off" rocker switch located near the steam pressure gauge, at the right side of the base cabinet console. The red indicator light in the switch will come on and the boiler will begin to fill with water. Direct-steam -connected steamers are not equipped with self-generating boilers or "steam"... -
Page 21: Preventative Maintenance
(which reduces the formation of scale). See step 1 below. DAILY CLEAN-UP: Your Cleveland SteamPro XVI Steamer, must be cleaned regularly to maintain its fast, efficient cooking per-formance, and to ensure its continued safe, reliable operation. -
Page 22: Preventative Maintenance
Cleveland/ALCO supports a worldwide network of Maintenance and Repair Centers, which are regional distributors of pans and service. Contact your nearest Maintenance and Repair Center for the name of an authorized service agency In your area, or for replacement parts, or information regarding the proper maintenance and repair of your equipment In order to preserve the various agency safety certifications (UL, A.G.A., CGA, NSF, ASME/NU. -
Page 23: Steamer Timer Programming Guide
CLEVELAND RANGE COMPANY THE CLEVELAND CONVECTION STEAMER™ TIMER SETTINGS Timer settings are approximate due to the differences in food quality, age, shape and the degree of "doneness" desired. It is not necessary to add water. Perforated pans are recommended. Starred items (*) must be cooked in solid pans or containers. Items marked with two stars (**) require handling in two steps. - Page 24 CLEVELAND RANGE COMPANY THE CLEVELAND CONVECTION STEAMER™ TIMER SETTINGS (Continued) MEATS & POULTRY: Steam meats and poultry in nested pans. as juices can be used MINUTES for gravy, sauces, beef stock and soups. The size of portion. Strip steak — 10 oz.
-
Page 25: Parts Breakdown
Electrical Box Assembly For Two Probe Gas Generator 20478 Timer, Solid State Interval - 3 Minute 20528 Transformer - Spark Ignition Supply 23198 Control Water Level 03524 Relay, 120 V, 50/60 HZ, AL, DPDT 03525 Socket, Relay 44163 Box-Electric Assembly - For Gas Two Probe... - Page 26 Power Supply 100766 - Power Supply Board...
- Page 27 Timer Panel Assembly 1 1007641 Panel Assembly, Instrument 2. 100765 Timer Assembly, Complete 3. 14704 Nut, 6-32, Plastic 4. 100277 Gauge, Pressure-30" Vac., 30 psi...
- Page 28 44169 Cable Ignition Asm. 03546 Control Module, Direct Spark Ignition, 4 Second 02361 Box, Handi-Box Electrical, 4 1/8" x 1 13/16" #180-1/2 66037 Cover, Elect, Box Generator, 2 Probe 44164 Terminal Block Assembly - 4 Pole Gas Units 44163 Box - Electric Assembly - For Gas 2-Probe Electrical Box Assembly For Two Probe Gas Generator...
- Page 29 Latch Assembly 1. 450821 Plate, Weldment - Latch Mount PCL/PCS HL 2. 44148 Pawl Assembly - PCS/PCL – HL 3. 100771 Solenoid, 120 Vac., 60 HZ, Continuous Duty, Class F Insul. 4. 100768 Cylinder, Pressure Lock 5. 19972 Switch, Thermal Close 193+5 Deg. F, Open 173+5 Deg. F, 6.
- Page 30 1. 20005 Switch, Rocker - Red...
- Page 31 1. 19972 Switch, Thermal Close 193+5 Deg. F, Open 173+5 Deg. F, PCI...
- Page 32 1. 101233 Water Regulator Assembly. (Wilkins) 2. 100218 Regulator, Water Pressure - 3/4" x 3/4" (PCL)
- Page 33 Water Valve Assembly 1. 07169 Gauge 0-100 PSI, 2-1/2", 1/4" Bottom Mount, Brass Movement 2. 03606 Coupling, Full, Brass, 1/2" 3. 100976 Manifold, Water Valve Support PCL/PCS 4. 22241 Valve, Solenoid 2-Way NC 1/4 NPT, Orifice 5/32 1200/60 5. 22236 Valve, Solenoid, 3-Way, 120 V/60 HZ 6.
- Page 34 Plumbing Assembly 1. 565191 Fitting - Hose Drain Manifold 2. 15462 Orifice, Flow Regulator 1/8" GPM 3. 20211 Tee-Black 1" 4. 22238 Valve, Pinch 1"NPT 5. 100223 Tee 1"x 1/2" x 1" Black 6. 14553 Nozzle, Spray Drain Manifold GP1 - 1/8 GG Full Jet, Brass 7.
- Page 35 Steam Outlet Assembly 1. 101035 Valve, Safety, 3/4", 12 PSI 2. 101207 Trap, Thermostatic w/POL Seat 3. 100307 Piping, Steam Outlet-PCL, Rev. B End Gen., Gas...
- Page 36 Steam Valve Assembly 1. 22193 Value, Solenoid 3/4 x 3/4, 2NC 120V, 60HZ 2. 05295 Elbow, Union 1/2" x 1/2", Female to Female Brass 3. 101794 Steam Value Assembly (PCL)
- Page 37 Water Feed Assembly 03276 Value Ball 1/4" Brass, Full Port 22102 Value, Swing Check, 1/4" Brass, 36" Leads 22223 Value, Solenoid, 1/4" NPT, Conduit 130-120 V 100303 Clamp, Mounting - 3/8 Tee Elbow, Tube Fitting 100339 Angle, Top Front -1200 MM Oyster Kettle Base 100304 Piping, Water Feed Assembly 3/8", Rev.
- Page 38 Heater Assembly 08165 Heater 12KW, 208-220V, 3" Square Flange, 3 Phase 08166 Heater, 12KW, 230-240V, 3" Square Flange, 3 Phase 8167 Heater, 12KW, 440-480V, 3" Square Flange, 3 Phase 07128 Heater Gasket...
- Page 39 Drain Manifold Assembly 1. 1008983 Drain Manifold Assembly 2. 13252 Manifold-1.500" Dia., 8 1/2" Length-Black...
