Installation

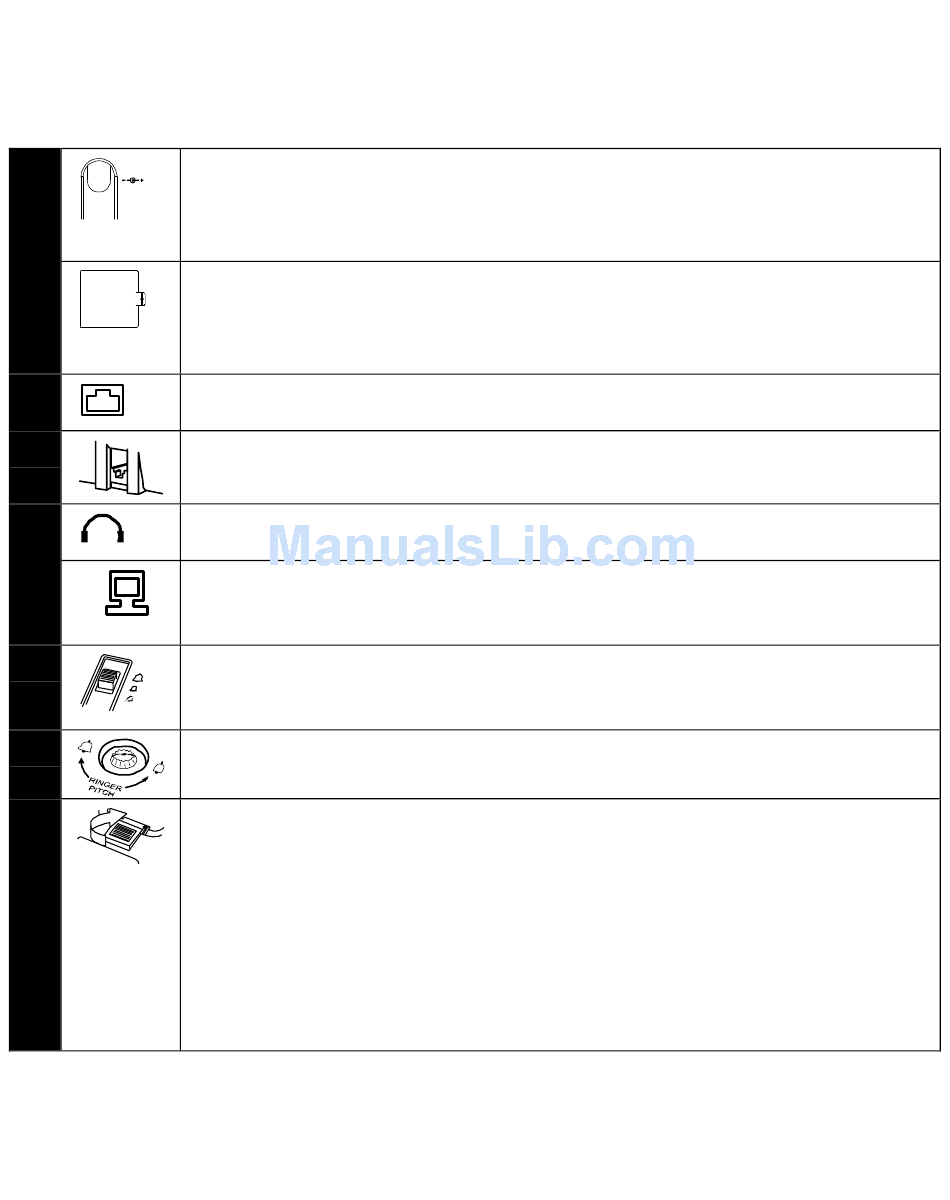

Please refer to Figure One at the front of this user guide
25
DC 9V
23
22
24
20
21
18
19
17
This telephone requires either a power supply or batteries in order
to operate correctly. When using the adaptor, it should be
connected to the socket at the rear of the telephone.
Alternatively, the telephone will operate utilizing 3 AA batteries (not
provided). To insert the batteries, first ensure that the telephone is
disconnected from the telephone line.
This jack is used to connect a line cord to your telephone.
The handset cord plugs in here.
A headset plugs in here.
The jack labelled is used to connect a device such as a modem to
your Telephone.
A 3-position switch is used to control the volume of the ring tone.
Select from loud ring, quiet ring or ringer off.
Turn the pitch control to adjust the pitch of the ringer.
Wall mounting - An additional wall bracket is required - Using the
template supplied with the bracket, position where you want to fix
your telephone. Drill two holes and fix roundhead screws. Attach
the telephone to the bracket. Slide the bracket into place on the
screws. Remove the handset retainer by pushing up out of the slot.
Turn the retainer through 180° and place back in its slot.
Wall brackets can be obtained from your distributor.
