Summary of Contents for Lantech GE-800
-
Page 1: User Guide

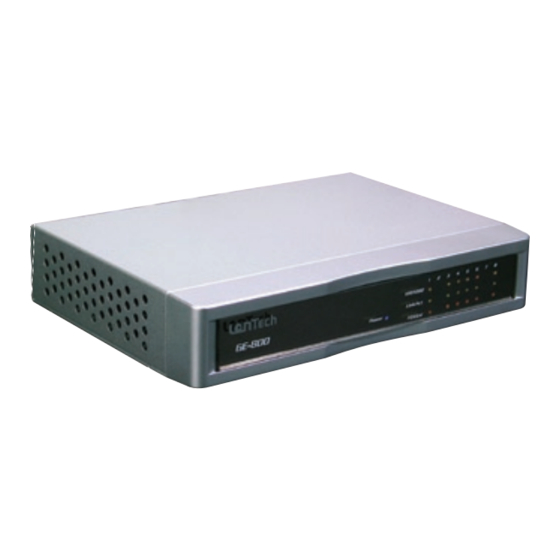

User Guide GE-800 8 Port 10/100/1000 Base-TX Gigabit Copper Switch User Guide Rev. 2.0 Jan, 2004... - Page 2 This Technology will create high-speed backbone connections between switches, servers, database and end stations. Lantech GE-800 Gigabit Copper Switch is an ideal solution for solving traffic block at the core of the network. It offers 8x auto-negotiation 10/100/1000Base-T Gigabit Ethernet ports which can significantly improve your network’s backbone...
-
Page 3: Package Contents
- Rubber Feet - DC power Adapter - User’s Guide Figure 1-2. Package Contents Compare the contents of your GE-800 Gigabit Copper Switch with the standard checklist above. If any item is missing or damaged, please contact your local dealer for service... -
Page 4: Ethernet Switching Technology
User Guide •Ethernet Switching Technology Ethernet Switching Technology dramatically boosted the total bandwidth of a network, eliminated congestion problems inherent with Carrier Sense multiple access with Collision Detection ( CSMA/CD ) protocol, and greatly reduced unnecessary transmissions. This revolutionized networking. First, by allowing two-way, simultaneous transmissions over the same port ( Full-duplex ), which essentially doubled the bandwidth. -
Page 5: Hardware Description
165 x 100 x 32.5 mm (L x W x H) •Front Panel The Front Panel of the GE-800 Gigabit Copper Switch consists of 8x auto-negotiation 10/100/1000Mbps Ethernet RJ-45 connectors ( support Automatic MDI/MDIX function ), and four LED-indicators (100/1000, LNK/ACT, FDX/COL ) for each Gigabit port. -
Page 6: Led Indicators
User Guide •LED Indicators The LED Indicators gives a real-time indication of system operating statuses. There are four LED-indicators (100/1000, LNK/ACT, FD/COL) for each Gigabit port and one Power LED for Unit. The following table provides descriptions of LEDs status and their meaning. Status Description Blue... -
Page 7: Desktop Installation
Switch. The other side of power cord connects to the power outlet. The power adapter supply in the GE-800 Gigabit Copper Switch works with DC in 12V/1.3A Check the power indicator on the front panel to see if power is properly supplied. -
Page 8: Network Application
Core Switch. All ports can connect to departmental switches, and the departmental switches can be connected to the GE-800 Gigabit Copper Switch. Then all the devices in this network can communicate with each other. Connecting servers to the Core Switch allow each end station to access the server’s data. -
Page 9: Technical Specifications
GE-800 Gigabit Copper Switch 5. Technical Specifications This section provides the specifications of Lantech GE-800 Gigabit Copper Switch, and the following table lists them: Standards Compliance IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3x Flow Control and Back-pressure ANSI/IEEE 802.3 Auto-negotiation... - Page 10 3F, No.8, Lane 345, Yang-Kuang St., Nei-Hu Dis., 114, Taipei, Taiwan, R.O.C. tel: +886-2-2659-1800 fax: +886-2-2659-1801 e-mail: service@lantech.com.tw http://www.lantech.com.tw...
