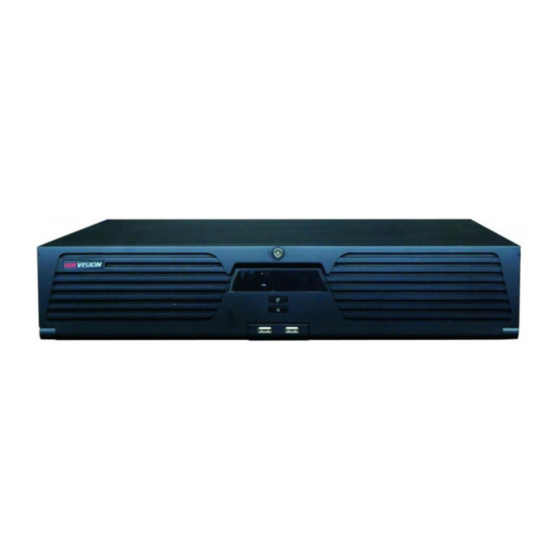

HIKVISION DS-9508NIST Quick Operation Manual

HIKVISION DS-9508NIST Quick Operation Manual

Up to 64channels
Hide thumbs Also See for DS-9508NIST:

Advertisement

Quick Links

Network Video Recorder
Quick Operation Guide
UD.6L0202B1351A01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-9508NIST and is the answer not in the manual?

Questions and answers

Summary of Contents for HIKVISION DS-9508NIST

  • Page 1 Network Video Recorder Quick Operation Guide UD.6L0202B1351A01...
  • Page 2: Table Of Contents

    Quick Operation Guide of Network Video Recorder TABLE OF CONTENTS NVR Pre-Installation ............................2 NVR Installation .............................. 2 Hard Disk Installation ............................. 2 Front Panels ..............................6 DS-9500NI-ST/RT Front Panel ........................6 DS-8500NI-ST Front Panel ........................6 Rear Panel ................................ 7 Connections ..............................
  • Page 3: Nvr Pre-Installation

    Quick Operation Guide of Network Video Recorder Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer. This manual is applicable to the models listed in the following table. Series Model Type 9500NI-ST...
  • Page 4 Quick Operation Guide of Network Video Recorder 2. Insert the key and turn in clockwise direction to open the panel lock. 3. Press the buttons on the panel of two sides and open the front panel. 4. Insert the hard disk along the slot until it is placed into position. 5.
  • Page 5 Quick Operation Guide of Network Video Recorder Steps (for DS-8500NI-ST): 1. Remove the cover from the NVR by unfastening the screws on the back and side. 2. Insert the HDD to the HDD rack and secure the HDD with screws. 3.
  • Page 6 Quick Operation Guide of Network Video Recorder 5. Re-install the cover of the NVR and fasten screws.
  • Page 7: Front Panels

    Quick Operation Guide of Network Video Recorder Front Panels DS-9500NI-ST/RT Front Panel DS-8500NI-ST Front Panel Name Description Turning red indicates power is connected but the system isn’t Power running; turning blue indicates power is connected and the system is running. Alarm Alarm LED turns red when a sensor alarm is detected.
  • Page 8: Rear Panel

    Quick Operation Guide of Network Video Recorder Rear Panel Item Description RS-232 Connects to RS-232 devices. Backup/extended storage interface, connect to external SATA disk, eSATA DVD-R/W, disk array, etc. 2 network interfaces. Connect to RS-485 devices, e.g., P/T receiver, etc. Use the T+ and T -terminals of RS-485 interface to connect to the R+ and R- RS-485 terminals of the receiver.
  • Page 9: Connections

    Quick Operation Guide of Network Video Recorder Connections Wiring of Alarm Input The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram. If the alarm input is not an open/close relay, please connect an external relay between the alarm input and the device.
  • Page 10: Specifications

    Quick Operation Guide of Network Video Recorder Specifications DS-9500NI-ST DS-9508NI- DS-9516NI- DS-9532NI- DS-9564NI- Model Video input IP video input 8-ch 16-ch 32-ch 64-ch Recording resolution 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Recording Main stream: 25 fps (P) / 30 fps (N) Parameters Frame rate Sub-stream: 25 fps (P) / 30 fps (N) Incoming bandwidth 40Mbps 80Mbpss...
  • Page 11: Ds-9500Ni-Rt

    Quick Operation Guide of Network Video Recorder DS-9500NI-RT DS-9508NI- DS-9516NI- DS-9532NI- DS-9564NI- Model Video input IP video input 8-ch 16-ch 32-ch 64-ch Recording resolution 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Recording Main stream: 25 fps (P) / 30 fps (N) Parameters Frame rate Sub-stream: 25 fps (P) / 30 fps (N) Incoming bandwidth 40Mbps 80Mbps...
  • Page 12: Ds-8500Ni-St

    Quick Operation Guide of Network Video Recorder DS-8500NI-ST DS-8508NI- DS-8516NI- DS-8532NI- DS-8564NI- Model Video input IP video input 8-ch 16-ch 32-ch 64-ch Recording resolution 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Recording Main stream: 25 fps (P) / 30 fps (N) Parameters Frame rate Sub-stream: 25 fps (P) / 30 fps (N) 40Mbps 80Mbps 160Mbps...
  • Page 13: Hdd Storage Calculation Chart

    Quick Operation Guide of Network Video Recorder HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate. Bit Rate Storage Used 128K 160K 192K 224K...
  • Page 14: Basic Operation

    Quick Operation Guide of Network Video Recorder Basic Operation Power On If the power LED indicator on the front panel is off, please check whether the power supply is plugged into an electrical outlet and the power switch on the rear panel is turned on; the LED turns red, indicating the device is receiving power.
  • Page 15: Accessing The Device By Web Browser

    Quick Operation Guide of Network Video Recorder 3. If the SADP software has been installed on PC, you can use it to automatically search the online devices in the same subnet with your PC. The detected online devices are displayed on the bottom of the interface. Click to select the device and click the Add to Client button to pop up the detail information editing dialog box.
  • Page 16: Camera Management

    Quick Operation Guide of Network Video Recorder On the top right corner, language is selectable between Chinese and English. 2. Input the correct user name and password, click Login to enter the live view interface, or it will pop up an error box.
  • Page 17: Manually Adding Ip Cameras

    Quick Operation Guide of Network Video Recorder 2. Check the checkbox of the listed cameras and click the OK button to finish adding. Manually Adding IP Cameras Steps: 1. Click the Add button, and the interface is shown below: 2. Input the IP address or domain name of the network camera in the IP Camera Address text field, and user name and password.
  • Page 18: Getting Live View

    Quick Operation Guide of Network Video Recorder Live View Interface Descriptions Name Description Displays the list of channels and the playing and recording status of each channel. Channel List The stream type can be switched by clicking the icon before the channel name: stands for main stream and for sub-stream.
  • Page 19: One-Touch Raid Configuration

    Quick Operation Guide of Network Video Recorder One-touch RAID Configuration Purpose: For the DS-9500NI-RT series NVR, the disk array must be configured if you want to save recoring and log files locally. Through one-touch configuration, you can quickly create the disk array. By default, the array type to be created is RAID 5.
  • Page 20: Recording And Capturing

    Quick Operation Guide of Network Video Recorder By default, one-touch configuration adopts background initialization to initialize the RAID. By using background initialization, the virtual disk can be used immediately. 6. You can see the information of the virtual disk in the HDD Information interface. Recording and Capturing Manual Recording and Capturing Purpose:...
  • Page 21 Quick Operation Guide of Network Video Recorder When IP camera is connected to the NVR, the all-day continuous recording of it starts automatically. 3. Click Edit button to enter setup page. 4. Select recording type in the drop-down list. There are six recording types supported, including “Continuous”, “Motion Detection”, “Alarm”, “Motion detection &...
  • Page 22: Playback

    Quick Operation Guide of Network Video Recorder Playback Playing back by time is the only supported playback function when you success and configure the device by web browser. You can refer to the User Manual of iVMS-4200 to get more information of playing back by other conditions.
  • Page 23 Quick Operation Guide of Network Video Recorder Playback control buttons description Area Description Area Description Play/Pause Stop Slow down Speed up Play by single frame Capture Stop all playback Download Video clip Open/Close audio Full screen Transcoded playback Reverse playback Window division 2.
  • Page 24: One-Touch Backup

    Quick Operation Guide of Network Video Recorder One-touch Backup Steps: 1. Connect the backup device to the NVR. 2. Press the button on the front panel and the device will start to search the recording files in the recent 24 hours, and then back up them to the connected device. If the size of the searched files is larger than the free space of backup device, the more recent files will be backed up preferentially.
  • Page 25 Quick Operation Guide of Network Video Recorder...
