1 |
P a g e

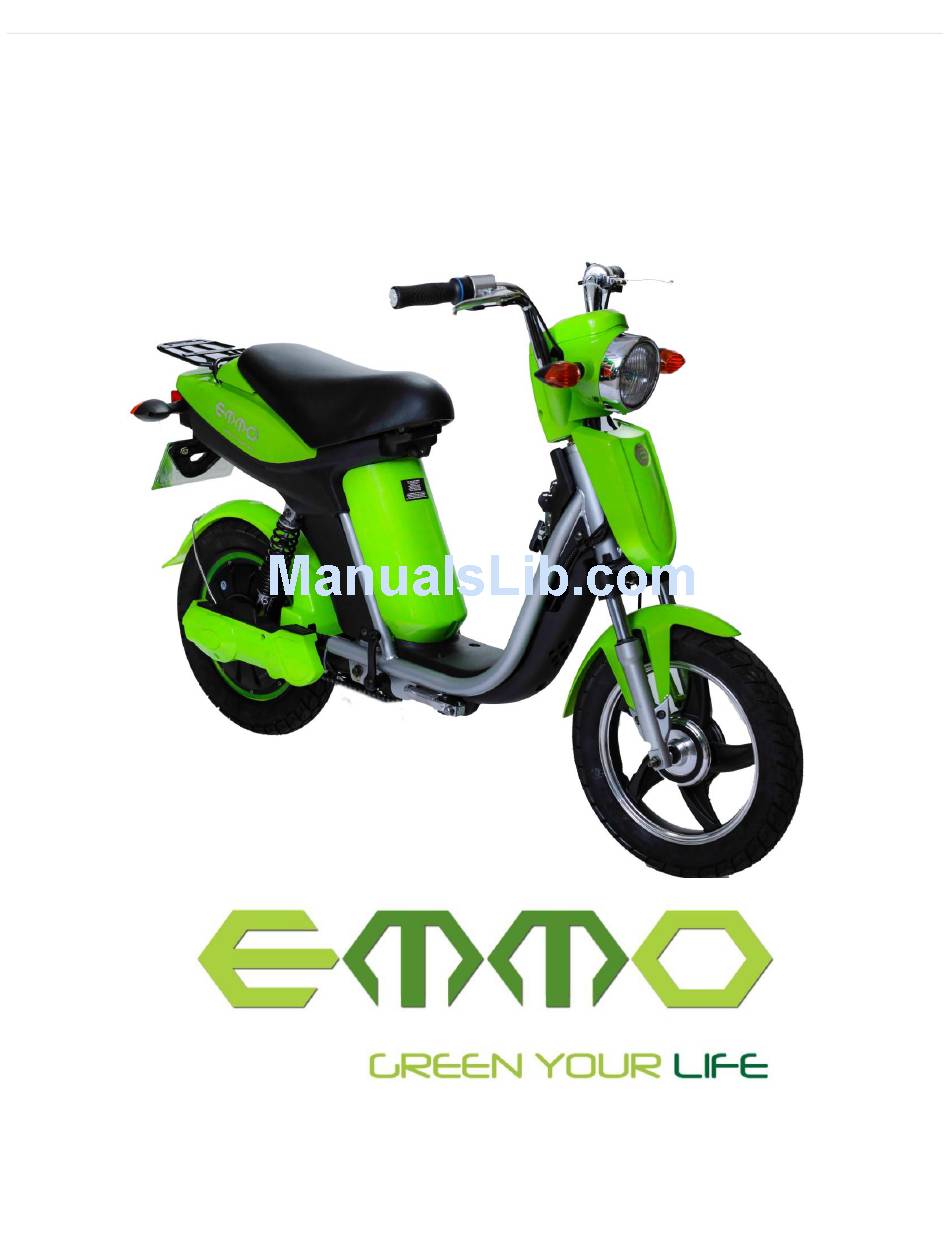

Emmo Urban 2.0
Owner's Manual
T. Lac V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Urban 2.0 and is the answer not in the manual?

Questions and answers

Related Manuals for EMMO Urban 2.0

Summary of Contents for EMMO Urban 2.0

  • Page 1 P a g e Emmo Urban 2.0 Owner’s Manual T. Lac V 1.0...

  • Page 2: Table Of Contents

    P a g e Table of Contents E-bike MTO Label……………………………………………………………………………………………………..3 Specifications…………………………………………………………………………………..……………………….4 Charging Your E-bike……………………………………………………………………………….……………5-9 Brakes…………………………………………………………………………………………………………………..10 Back Drum Brakes and Tires…………….……………………………….......…………………11 Pedals, Center Stand and Bike Chain …………………………………......…………………12 Seat Lock ............…………………..……..……..………………………..…13 Ignition.............……………………….…………………………………………14 Remote Controller ………….......……………………….………………………….………...15 Right Handlebar..……………………………………………..…………..…....…………………..16 Left Handlebar..………………………………………...…………………………………...…………………….17 Dashboard……………………………………….………………………………………………….…………………18 E-bike Registration…………………………………...……………………………………………………………19 Contact Information……………………………………………………………………………………..………..20...

  • Page 3: E-Bike Mto Label

    P a g e E-bike MTO Label WARNING! Please make sure this MTO label is on your e-bike. If this label is not present, please ask your dealer to put one on. All electric bicycles are required to have this sticker on the bike for it to be a legal vehicle.

  • Page 4: Specifications

    P a g e Specifications Black, Red, White, Green Color: Dimension (LxWxH): 162cm x 71cm x 120 cm Wheel Size: 16'' x 3.0'' 50-65 kg (base on battery type) Net Weight: 32 km/h Maximum Speed: Travel Range: 50-65 km* (base on battery type) 3 –...

  • Page 5: Charging Your E-Bike

    P a g e Charging the Bike (Lead Acid Battery) There are two different plugs on your charger: one end that goes into an 110V power outlet, and the other into the charger port. 1. Take one end of the charger and plug it into the charger port located on the bike (Please make sure that it is fully plugged in) 2.
  • Page 6 P a g e...
  • Page 7 P a g e Charging the Bike (Lithium Battery) Charging the battery is done from the charger port located on the battery itself. The charger is separated into two different parts: A cable with one end that goes into a 110V power outlet, and the other end that goes into the charger box itself, the charger box with a cable that plugs into the bike (page 8-9).
  • Page 8 P a g e Lithium Battery Charger After plugging the separate cable into the charger box, plug the charger into the charger port on the bike. The LED1 light should turn red when the charger box is connected to the bike.
  • Page 9 P a g e WARNING! *CHARGING THE E-BIKE SHOULD TAKE A MAXIMUM OF 8 HOURS. *DO NOT CHARGE THE E-BIKE FOR MORE THAN 12 HOURS. OVERCHARGING WILL OVERCHARGE THE BATTERY, CAUSING DAMAGE TO THE BATTERY. *MAKE SURE TO FULLY CHARGE THE E-BIKE ONCE A MONTH DURING LONG PERIODS OF INACTIVITY (i.e.

  • Page 10: Brakes

    10 | P a g e Front Brake When this lever is pulled towards the rider, the front brake activates. Rear Brake To activate the rear brake, pull this lever towards the rider. Tire Pressure The recommended air pressure for the tires is 40 psi.

  • Page 11: Back Drum Brakes And Tires

    Adjusting the Back Brake To tighten the back brake on the Urban 2.0, loosen the nut (as indicated by the white arrow) and pull the cable (as indicated by the gray arrow). After pulling the cable to the desired tightness, tighten the nut to secure position. To loosen the back brakes, simply loosen the nut, push in the cable to the desired tightness and then tighten the nut to secure the position.

  • Page 12: Pedals, Center Stand And Bike Chain

    12 | P a g e Bike Chain Centre Stand Pegs Remember to grease The centre kick stand is better used for all To have the pegs fold out, press the chains once a situations. In order to engage the kickstand, apply the button indicated by the month.

  • Page 13: Seat Lock

    13 | P a g e Seat Lock To open the seat, use the keyhole on the side of the bike (shown in the picture above on the left). Turn clockwise to unlock the seat. Power Cable The power cable (as indicated in the white arrow above, in the picture on the right) controls the power running through the bike from the battery.

  • Page 14: Ignition

    14 | P a g e Key Positions in Ignition 1. This is the handlebar lock position. This position is reached when the key is pushed in, and then turn to the left, from the off position. This locks the handlebar when it is turned half way to the left.

  • Page 15: Remote Controller

    15 | P a g e Note: If the bike is turned on using the remote start, it can only be turned off using the „unlock‟ button on the remote. Lock Unlock This button locks the bike. When the bike is This button unlocks the bike.

  • Page 16: Right Handlebar

    16 | P a g e Light Switch Throttle This switch controls the amount of lightning on your bike. When the switch is pushed to When the throttle is turned the right, no extra lights are turned on. (Only backwards (toward the rider) it brake lights work) When the switch is in the makes the e-bike move forward.

  • Page 17: Left Handlebar

    17 | P a g e High/Low Beam Switch Pushing the switch up activates the high beams for the front headlights, pushing it down deactivate the high beams (make sure the light switch is on first). Flicking the button downwards causes the passing signals to flicker.

  • Page 18: Dashboard

    18 | P a g e Speedometer This shows the speed you are going at Light Indicators once the bike is running. Power Gauge Odometer This meter demonstrates the This meter keeps track of how remaining amount of electricity many kilometres the bike has available in your battery.

  • Page 19: E-Bike Registration

    Motor Number: E-bike Model and Colour: Store Location: Customer Name: Home Address: Phone Number: E-mail: Survey: How did you find out about Emmo Inc.? (Please select the options that apply) □ Returning Customer □Family/Friend □Passing by Store □Kijiji □TERA □Google □Yelp...

  • Page 20: Contact Information

    P a g e Thank you for Choosing Connect With Us! Stay tuned for updates regarding new e-bike models, special deals and more! Official Website: www.emmo.ca www.facebook.com/EmmoCanada info@emmo.ca Any laws/regulations regarding “E-bikes” can be found on the Ministry of Transportation website: www.mto.gov.on.ca...
