1.4
Accessories
• Standard horizontal flue kit at 100 mm outside
diameter for flues up to 4 m in length.
• Flue duct kits for horizontal (125 mm outside
diameter) for flue lengths up to 13 m and vertical flue
systems for flue lengths up to 15 m. Fitting instruc-
tions are sent with these kits.
• Heating programmers
• Timer
• Motorised valve is available as an optional extra. If
this option is used then an integral programmer,
Night Set Back Module and TR2 Optimising Room
Thermostat will be required.
1.5

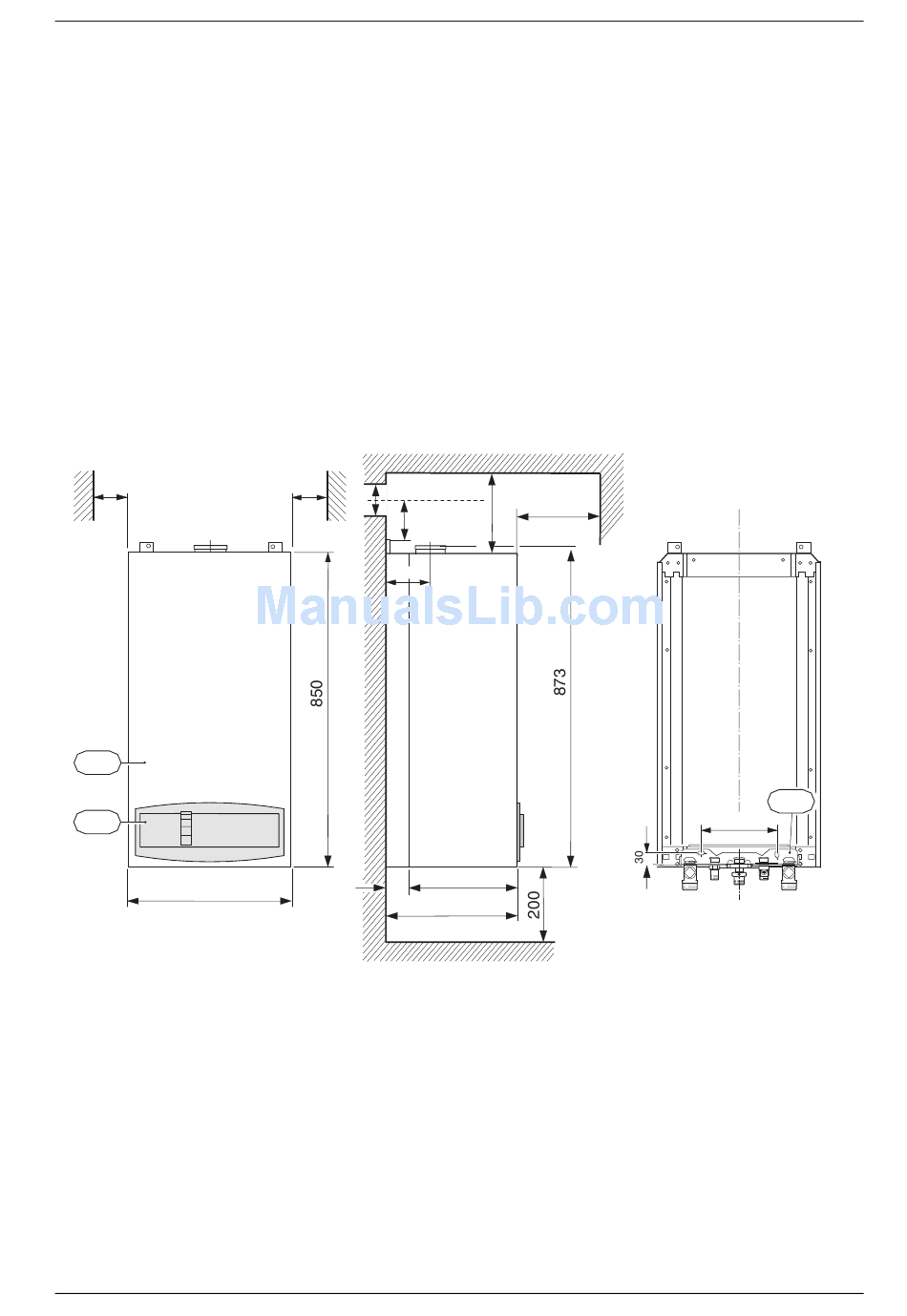

Casing dimensions
min.
*
10
101
103
440
Fig. 1
13
Manifold assembly
101
Outer case
103
Facia cover
X
Standard Concentric Horizontal Flue System: min. 160 mm
Alternative Concentric Flue System: min. 220 mm
Y
Standard Concentric Horizontal Flue System: 40mm
Alternative Concentric Flue System: 70mm
Z
Standard Concentric Horizontal Flue System: 105 mm
Alternative Concentric Flue System: 130 mm
*
For servicing the appliance
Note: Horizontal flue only: dimension X may need to increase due
to the incline of the flue.
6 720 611 443 GB (05.04)
min.
Z
*
10
Y
120
35
360
395
*
600
X
*
Details of the appliance
13
200
6 720 611 441- 01.1O
5
