1.4
Accessories
• Standard horizontal flue kit at 100 mm outside
diameter for flues upto 4 m in length.
• Flue duct kits for horizontal (125 mm outside
diameter) for flue lengths upto 13 m and vertical flue
systems for flue lengths upto 15 m. Fitting instruc-
tions are sent with these kits.
• Heating programmers
• Timer
• Security kit
• Motorised valve is available as an optional extra. If
this option is used then the DT2, TR2 Optimising
Room Thermostat and the Night Set Back Module
will be required.
1.5

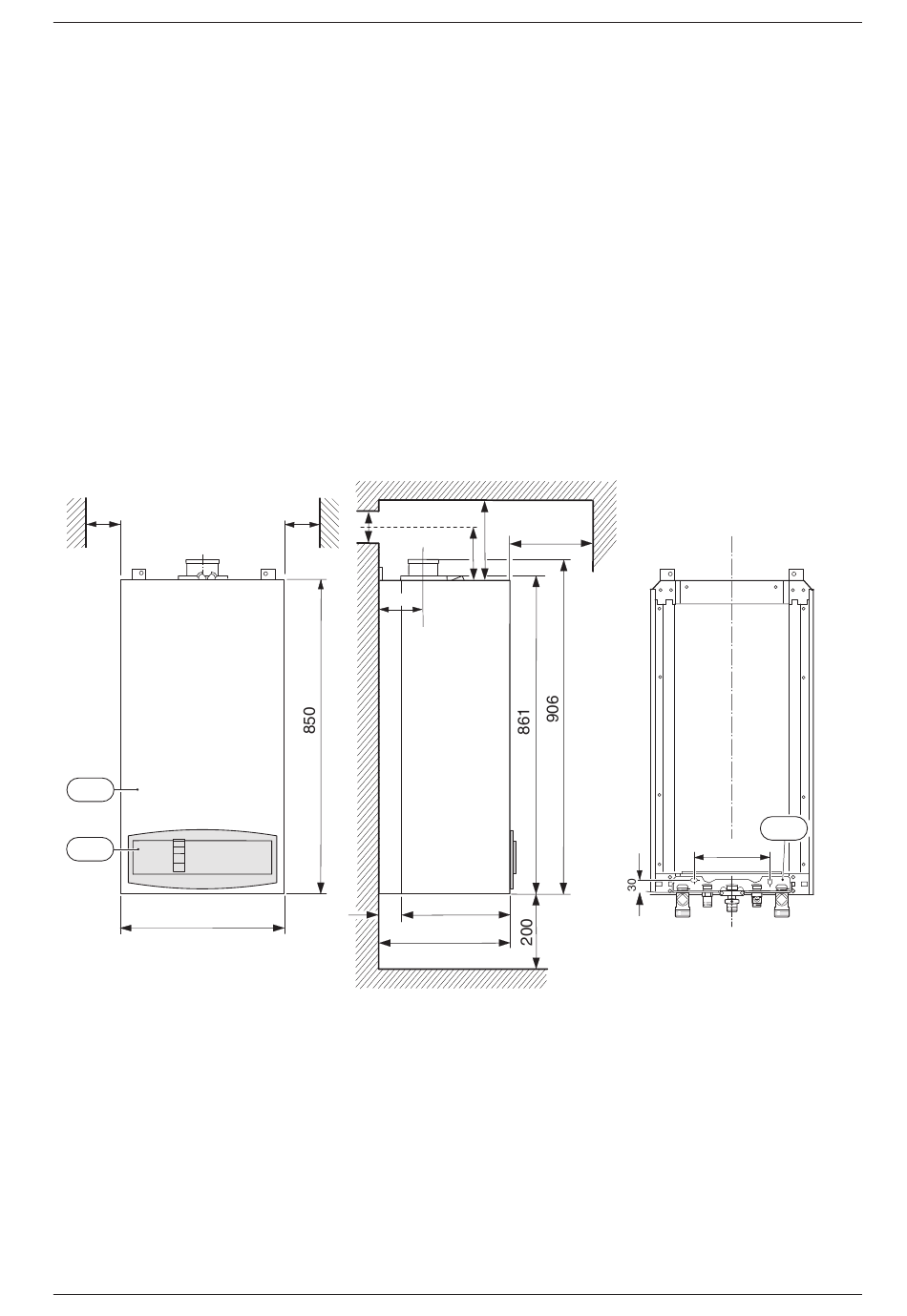

Casing dimensions
min.
*
5
101
103
440
Fig. 1
13
Manifold assembly
101
Outer case
103
Facia cover
X
Standard Concentric Horizontal Flue System: min. 310 mm
Alternative Concentric Flue System: min. 250 mm
Y
Standard Concentric Horizontal Flue System: 158 mm
Alternative Concentric Flue System: 121 mm
Z
Standard Concentric Horizontal Flue System: 105 mm
Alternative Concentric Flue System: 130 mm
*
For servicing the appliance
6 720 610 601 GB (03.02)
min.
Z
5
*
Y
120
35
360
395
*
600
X
*
Details of the appliance
13
200
6 720 610 601- 01.3O
5
