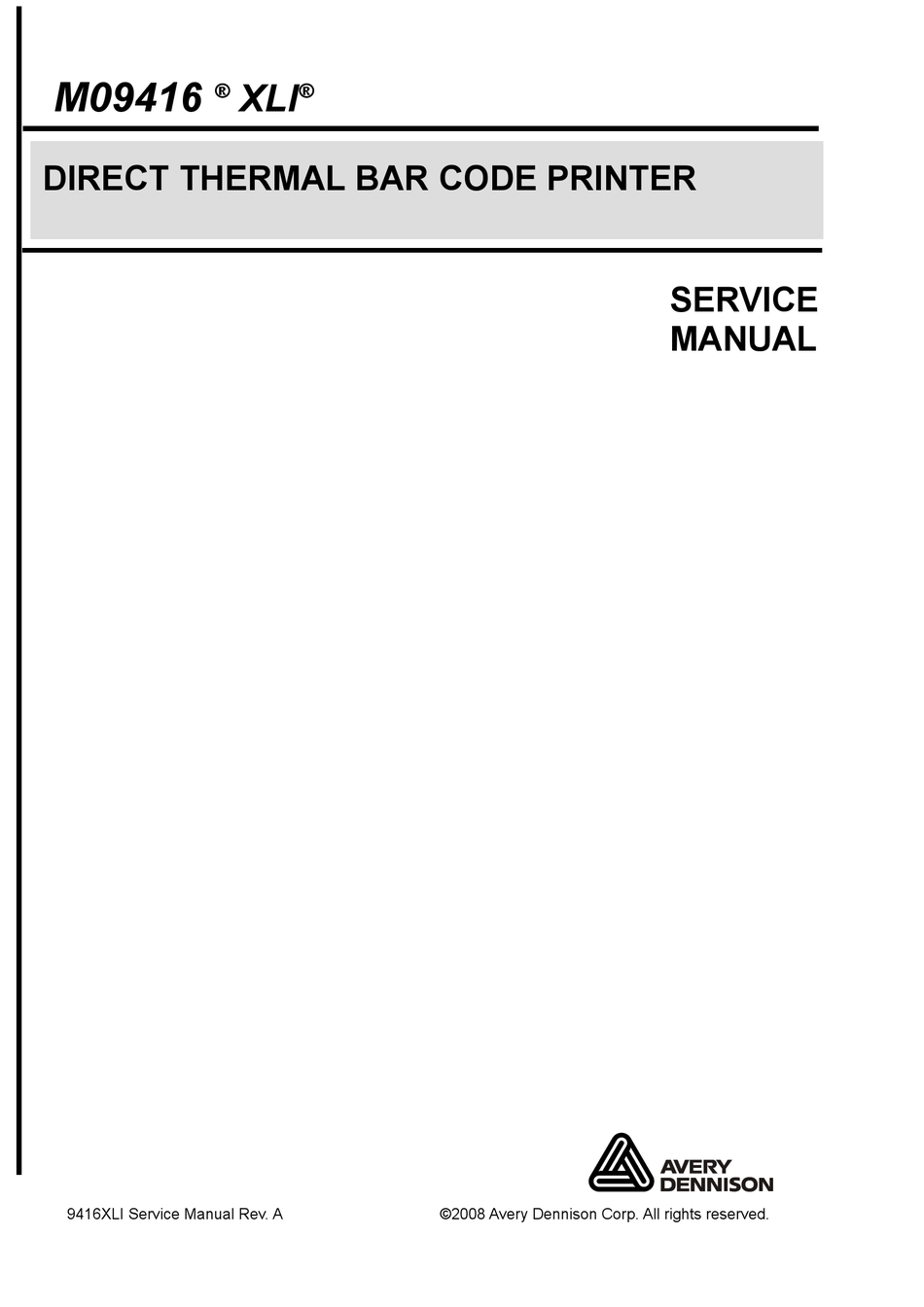

Avery Dennison M09416 XLI Service Manual

Direct thermal bar code printer

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

01/01 Rev. 2.13-01

SERVICE MANUAL

01/01 Rev. 2.13-01

TTX x50/67x – Wildcats (plus) – TTX Laminator– TDI/STDI/XXtreme

Schaltpläne / Circuit Diagrams

Display-Platine Schaltplan /

Display Board Diagram ................................. 2

Display-Platine Bestückung /

Display Board Components........................... 3

CPU-Platine Schaltplan CPU /

CPU Board Diagram CPU ............................. 4

M09416

CPU-Platine Schaltplan Speicher /

CPU Board Diagram Memory........................ 5

CPU-Platine Schaltplan Schnittstellen /

CPU Board Diagram Interfaces ..................... 6

CPU-Platine Bestückung A /

CPU Board Components A ........................... 7

DIRECT THERMAL BAR CODE PRINTER

CPU Board Components A ........................... 7

CPU-Platine Bestückung B /

CPU Board Components B ........................... 8

I/O-Platine: Power Supply, Stepper, Kopf /

I/O Board: Power Supply, Stepper, Head ...... 9

I/O-Platine: Schaltplan Stromversorgung /

I/O Board: Diagram Power Supply............... 10

I/O-Platine: Schaltplan I/O, Kopf /

I/O Board: Diagram I/O and Head-Control... 11

I/O-Platine: Schaltplan Schrittmotor-Logik /

I/O Board: Diagram Stepper Motor Logic..... 12

I/O-Platine: Schaltplan Schrittmotor-Logik /

I/O Board: Diagram Stepper Motor Logic..... 12

9416XLI Service Manual Rev. A

Schaltpläne / Circuit Diagrams, Page 1

SERVICE MANUAL

Schaltpläne / Circuit Diagrams, Page 1

–

S 45/65/95/105 – TTK/Texxtile

–

S 45/65/95/105 – TTK/Texxtile

I/O-Platine: Schaltplan Kopfmotor /

I/O Board: Diagram Head Stepper Motor..... 13

I/O-Platine: Schaltplan Folienmotor /

I/O Board: Diagram Foil Stepper Motor........ 14

I/O-Platine: Schaltplan Vorschubmotor /

I/O Board: Diagram Feed Stepper Motor ..... 15

XLI

I/O-Platine Bestückung /

I/O Board Components................................ 16

Adapter-Platine Schrittmotor Schaltplan /

Adapter Board Stepper Motor...................... 17

Adapterplatine Laminator /

Adapter board laminator .............................. 18

Applikator-Platine Schaltplan /

Applicator Board Diagram ........................... 19

Applikator-Platine Bestückung /

Aplicator Board Components....................... 20

Dispenser-Platine Schaltplan /

Dispenser Board Diagram ........................... 21

Messer-Platine Schaltplan /

Cutter Board Diagram.................................. 22

Messer-Platine Bestückung /

Cutter Board Components ........................... 23

Messer-Platine Bestückung /

Cutter Board Components........................... 23

SERVICE

MANUAL

Table of Contents

Need help?

Do you have a question about the M09416 XLI and is the answer not in the manual?

Questions and answers

Summary of Contents for Avery Dennison M09416 XLI

Page 1 I/O Board: Diagram Stepper Motor Logic..12 I/O-Platine: Schaltplan Schrittmotor-Logik / Cutter Board Components ......23 Messer-Platine Bestückung / I/O Board: Diagram Stepper Motor Logic..12 Cutter Board Components......23 MANUAL 9416XLI Service Manual Rev. A ©2008 Avery Dennison Corp. All rights reserved.
Page 2: Table Of Contents
M09416 ® ® Thermal Direct Printer 1. OVERVIEW ............................1 1.1 Front View ...................... 1 1.2 Rear View ....................... 1 1.3. LED ........................ 2 1.4 Button Operation................... 2 2. REPLACE and INSTALL IMPORTANT PARTS................... 5 2.1. Replacing Top Cover..................5 2.2.
Page 3 M09416 ® ® Thermal Direct Printer 4.3 Printer Initialization ..................43 4.4 Black Mark Sensor Calibration ..............44 4.5 Gap Sensor Calibration ................44 5. GAP AND BLACK MARK SENSOR SELECTION................45 6. TROUBLESHOOTING ........................46 7. MAINTENANCE ..........................49 UPDATE HISTORY ..........................
Page 4: Overview
M09416 ® ® Thermal Direct Printer 1. OVERVIEW 1.1 Front View Clear Window Power LED Feed Button Top Cover Open Lever 1.2 Rear View...
Page 5: Led
M09416 ® ® Thermal Direct Printer 1.3. LED LED Color Description Green/ Solid This illuminates that the power is on and the device is ready to use. Green/ Flash This illuminates that the system is downloading data from PC to memory and the printer is paused. Amber This illuminates that the system is clearing data from printer.
Page 6 M09416 ® ® Thermal Direct Printer 1.Turn off the power switch. Gap/Black Mark Sensor Calibration, 2. Hold on the button then turn on the power switch. 3. Release the button when LED becomes amber and blinking. Label Length Measurement, Self- (Any amber will do during the 5 blinks).
Page 7 M09416 ® ® Thermal Direct Printer 1. Turn off the power switch. Force Gap Sensor Calibration 2. Hold on the button then turn on the power switch. 3. Release the button when LED turns red/amber after 5 green/amber blinks. (Any red/amber will do during the 5 blinks).
Page 8: Replace And Install Important Parts
M09416 ® ® Thermal Direct Printer 2. REPLACE and INSTALL IMPORTANT PARTS Please turn off the power switch and unplug the power adapter before replacing parts. 2.1. Replacing Top Cover 1. Open the printer top cover by pushing forward the top cover open levers. 2.
Page 9: Replacing Lower Cover And Main Pcb
M09416 ® ® Thermal Direct Printer 2.2. Replacing Lower Cover and main PCB 1. Upside down the printer. 2. Remove 3 screws on lower cover. Screw Screws 3. Remove 6 screws on lower inner cover. Screws Top Cover Top Inner Cover Lower inner cover Screws...
Page 10 M09416 ® ® Thermal Direct Printer Lower Cover 4. Remove all the harness connected to main board. 5. Remove 4 screws on PCB. Main Board Lower Cover Screws Screws 6. Replace the PCB or replace a new lower cover. 7. Reassemble parts in reverse procedures.
Page 11: Replacing Platen Assembly
M09416 ® ® Thermal Direct Printer 2.3. Replacing Platen Assembly 1. Squeeze two sides of platen assembly and take it out. Squeeze Here Lower Inner Cover Platen Squeeze Here 2. Replace a platen. 3. Reassemble parts in reverse procedures.
Page 12: Replacing The Stepping Motor Assembly And Stepping Motor
M09416 ® ® Thermal Direct Printer 2.4. Replacing the Stepping Motor Assembly and Stepping Motor 1. Please refer to 3.2 for disassembling the lower cover. 2. Upside down the lower inner cover. 3. Remove 7 screws of the stepping motor assembly. Screws Lower Inner Cover Screws...
Page 13 M09416 ® ® Thermal Direct Printer Stepping Motor Assembly 6. Remove 2 screws from the stepping motor assembly; disconnect the stepping motor from stepping motor bracket. Stepping Motor bracket Stepping Motor Screws 7. Replace the stepping motor. 8. Reassemble parts in reverse procedures.
Page 14: Replacing Label Guide Adjustment Knob Assembly
M09416 ® ® Thermal Direct Printer 2.5. Replacing Label Guide Adjustment Knob Assembly 1. Please refer to 3.2 for disassembling the lower cover. 2. Shift the label guide to the center by rotating the label guide adjustment knob. 3. Use a flat screwdriver to press the nub to remove the label guide adjustment knob.
Page 15 M09416 ® ® Thermal Direct Printer 4. Remove the plastic laminate. nate Plastic Lami Label Guide Adjustment Assembly 5. Replace the label guide assembly. Make sure the label guides are on the center of the printer. Label Guide Adjustment Assembly Label Guide 5.
Page 16: Replacing Gap/Black Mark Sensor Assembly
M09416 ® ® Thermal Direct Printer 2.6. Replacing Gap/Black Mark Sensor Assembly 1. Please refer to 3.2 for disassembling the lower cover. 2. Turn over the lower inner cover. 3. Remove the plastic laminate. (refer to 3.5) 4. Remove 1 screw from the gap / black mark sensor fixing plate. Screw Gap/Black Mark Sensor Gap / black mark sensor fixing plate...
Page 17: Replacing Print Head Module Assembly
M09416 ® ® Thermal Direct Printer 2.7. Replacing Print Head Module Assembly 1. Press right slot of the print head bracket and use a flat screwdriver to stick left side of the printer head bracket then pick up the print head assembly. Stick Flat Screwdriver Here Bracket Concave...
Page 18: Replacing Head Open Micro Switch
M09416 ® ® Thermal Direct Printer 2.8. Replacing Head Open Micro Switch Please refer to 3.1 for disassembling the top cover and top inner cover. Remove JP16 harness from the PCB. Remove 2 screws and remove the head open micro switch. Top Inner Cover Screw Head Open Micro Switch...
Page 19: Replacing Feed Button And Feed Button Pcb
M09416 ® ® Thermal Direct Printer 2.9. Replacing Feed Button and Feed Button PCB Please refer to 3.1 for disassembling the top cover and top inner cover. Remove the feed button from top cover. Top Cover Feed Button Disconnect the JP28 hardness from the PCB Remove 2 screws from the top inner cover and replace the feed button PCB.
Page 20: Install Sd Memory Card
M09416 ® ® Thermal Direct Printer 2.10. Install SD Memory Card Upside down the printer. Remove 1 screw and open the memory card cover. Memory Card Cover Plug in a SD card on main board. SD Card Revert the memory card cover. Reassemble parts in reverse procedures.
Page 21: Peel-Off Installation (Option) Assembly
M09416 ® ® Thermal Direct Printer -Supported DOS FAT file system. -Folders stored on the SD card should be in the 8.3 filename format. -Approved SD card manufacturer: SanDisk, Transcend. 2.11. Peel-Off Installation (Option) Assembly Open the top cover. Remove two screws in lower cover for hinge holder. Insert the screw of hinge holder...
Page 22 M09416 ® ® Thermal Direct Printer Use a screwdriver to screw off 1 screw on the bottom. Screw Hold the lower cover and lift up the top cover open levers to separate the lower inner cover and the lower cover. Lower inner cover Lower cover...
Page 23: Loading Label For Peel-Off Mode (Option)
M09416 ® ® Thermal Direct Printer Peel-off assembly Install one side first, then install another side Gently push peel-off panel to lock to the lower inner cover. Reassemble parts in reverse procedures. 2.11.1 Loading Label for Peel-off Mode (Option) Open the peel-off panel...
Page 24 M09416 ® ® Thermal Direct Printer 1. Feed the label, printing side facing up, through the label guide and pass over the platen. 2. Lead the liner paper through the label opening of peel off module, which is beneath the roller. 3.
Page 25: Cutter Module Installation (Option)
M09416 ® ® Thermal Direct Printer 2.12. Cutter Module Installation (Option) 1. Pull the top cover open levers to open the top cover. 2. Remove the front panel from the lower cover. 3. Use a screwdriver to screw off 6 screws on the lower inner cover. Screws Screws Remove 6 screws from lower inner cover...
Page 26 M09416 ® ® Thermal Direct Printer Cutter Driver IC 7. Hold the lower cover and lift up the top cover open levers to separate the lower inner cover and the lower cover. Arrange the cutter module cable through the bezel. 8.
Page 27 M09416 ® ® Thermal Direct Printer 11. Use a screwdriver to screw down 6 screws on the lower inner case and 1 screw on the back bottom of the printer. 12. Close the top cover.
Page 28: Loading Label In Cutter Mode
M09416 ® ® Thermal Direct Printer 2.12.1 Loading Label in Cutter Mode 1. Open the printer top cover. 2. Insert a paper roller into a paper roll 3. Place a label roll to label roll mount. 4. Feed the paper, printing side face up, through the label guide and pass over the platen.
Page 29: Internal Ethernet Print Server Module Installation (Option)
M09416 ® ® Thermal Direct Printer 2.13 Internal Ethernet Print Server Module Installation (Option) 1. Break through the plastic partial tab at the rear side of lower cover to get the RJ45 interface opening. RJ45 interface opening Remove the screw 2.
Page 30 M09416 ® ® Thermal Direct Printer Ground wire Screws RJ45 connector daughter board 4. Connect the print server module interface cable (36PIN) and RJ45 interface cable to print server module. Print server module interface cable RJ45 interface cable 5. Remove the 2 screws from the motor bracket and 1 screw from the lower inner cover to install the internal print server.
Page 31 M09416 ® ® Thermal Direct Printer 6. Install the print server module in printer lower inner cover with the above 3 screws. Screw Screws Internal Print Server Module 7. Plug the RJ45 white connector to the RJ45 daughter board connector. 8.
Page 32: Parts List
M09416 ® ® Thermal Direct Printer 3. PARTS LIST 3.1 Cover Spare Item Part No. Description Remark Parts 98-0260154-00LF MAIN BOARD ASS’Y 98-0260154-01LF MAIN BOARD ASS’Y (Main Board + On board internal print server)
Page 33: Cover Drawing
M09416 ® ® Thermal Direct Printer 3.2 Cover Drawing...
Page 34: Main Board
M09416 ® ® Thermal Direct Printer 3.3 Main Board Spare Item Part No. Description Remark Parts 98-0260154-00LF MAIN BOARD ASS’Y 98-0260154-01LF MAIN BOARD ASS’Y (Main Board + On board internal print server) 80-A3953SB-00LF CUTTER DRIVER IC A3953SB (RoHS) 80-PBL3717-00LF DRIVER IC (For stepping motor) (U18,U19) 63-04PSS01-00LF POWER SWITCH...
Page 35: Main Board Drawing
M09416 ® ® Thermal Direct Printer 3.4 Main Board Drawing...
Page 36: Top Inner Cover
M09416 ® ® Thermal Direct Printer 3.5 Top Inner Cover 98-0260047-00LF TOP INNER COVER ASSY includes:- 30-0260006-41LF Top inner cover*1 36-0260002-00LF Media loading instruction label*1 36-0500011-00LF High temp warning label*2 36-0500006-00LF Non-reflective Label*1 36-0500014-00LF Adhesive backed mount*2 36-0130043-00LF Cable tie*2 98-0260044-01LF TPH MODULE ASS’Y 98-0500016-00LF GAP SENSOR (RECEIVER) ASS'Y 98-0260011-00LF FEED BUTTON PCB ASS'Y...
Page 37: Top Inner Cover
M09416 ® ® Thermal Direct Printer 3.6 Top Inner Cover...
Page 38: Lower Inner Cover
M09416 ® ® Thermal Direct Printer 3.7 Lower Inner Cover Spare Item Part No. Description Remark Parts 98-0250163-00LF LOWER INNER COVER ASSY includes 30-0260007-61LF Lower inner cover*1 36-0130043-00LF Cable tie*2 36-0500014-00LF Adhesive backed mount*2 98-0500010-10LF GAP (EMITTING)/BLACK MARK SENSOR ASS'Y 98-0500009-00LF PLATEN ASS’Y...
Page 39: Lower Inner Cover
M09416 ® ® Thermal Direct Printer 3.8 Lower Inner Cover...
Page 40: Stepping Motor Fixing Assembly
M09416 ® ® Thermal Direct Printer 3.9 Stepping Motor Fixing Assembly Spare Item Part No. Description Remark Parts 65-0030006-00LF STEPPING MOTOR 30-0250030-32LF COVER OPEN LEVER 30-0250029-32LF COVER OPEN LEVER...
Page 41: Stepping Motor Fixing Assembly
M09416 ® ® Thermal Direct Printer 3.10 Stepping Motor Fixing Assembly...
Page 42: Option & Accessories
M09416 ® ® Thermal Direct Printer 3.11 Option & Accessories Spare Item Part No. Description Remark Parts 62-0010017-03LF POWER SUPPLY/CEC Standard...
Page 43: Option & Accessories Drawing
M09416 ® ® Thermal Direct Printer 3.12 Option & Accessories Drawing...
Page 44: Power On Utilities
M09416 ® ® Thermal Direct Printer 4. POWER ON UTILITIES There are six power-on utilities to set up and test printer hardware. These utilities are activated by pressing FEED button and by turning on the printer power simultaneously. The utilities are listed as below: Gap/Black Mark sensor calibration Gap/black mark sensor calibration, Self-test Printer initialization...
Page 45: Gap/Black Mark Sensor Calibration; Self-Test
M09416 ® ® Thermal Direct Printer Note: Please select gap or black mark sensor by GAP or BLINE command prior to calibrate the sensor. For more information about GAP and BLINE command, please refer to TSPL2 programming manual. 4.2. Gap/Black Mark Sensor Calibration; Self-test While calibrate the gap/black mark sensor, printer will measure the label length, print the internal configuration (self-test).
Page 46: Printer Initialization
M09416 ® ® Thermal Direct Printer 4.3 Printer Initialization Printer initialization is used to clear DRAM and restore printer settings to defaults. The only one exception is ribbon sensitivity, which will note be restored to default. Printer initialization is activated by the following procedures. 1.
Page 47: Black Mark Sensor Calibration
M09416 ® ® Thermal Direct Printer 4.4 Black Mark Sensor Calibration Set black mark sensor as media sensor and calibrate the black mark sensor. Please follow the steps as below. 1. Turn off the power switch. 2. Hold on the button then turn on the power switch. 3.
Page 48: Gap And Black Mark Sensor Selection
M09416 ® ® Thermal Direct Printer 5. GAP AND BLACK MARK SENSOR SELECTION Both gap sensor and black mark sensor are available in M09416 XL. Gap sensor is set as default, so there is no extra setting for gap sensor. Gap Sensor Default setting.
Page 49: Troubleshooting
M09416 ® ® Thermal Direct Printer 6. TROUBLESHOOTING This section lists the common problems that you may encounter when operating the printer. 1. LED does not light on. Turn the power switch on. Measure if there is 24V DC from the power supply output plug. Change the power adaptor if 24V DC is not been measured.
Page 50 M09416 ® ® Thermal Direct Printer A. Is label installed correctly? Please refer to previous 4. The LED is on red blinking – Label runs out to load a roll of label and then press the FEED button to resume printing. B.
Page 51 M09416 ® ® Thermal Direct Printer application software. The printer serial port setting is not correspondent to the PC’s setting Please do the configuration by the following commands. C:\>COPY CON LPT1 <Enter> SET COM1 96,N,8,1 <Enter> <Ctrl>Z<Enter> C:\> 8. Poor print quality The dust or glue from label may stick onto the print head.
Page 52: Maintenance
M09416 ® ® Thermal Direct Printer 7. MAINTENANCE This session presents the clean tools and methods to maintain your printer. 1. Please use one of following material to clean the printer. Cotton swab (Head cleaner pen) Lint-free cloth Vacuum / Blower brush 100% ethanol 2.
Page 53 M09416 ® ® Thermal Direct Printer Printer Part Method Interval Sensor Compressed air or vacuum Monthly Wipe it with water-dampened As needed Exterior cloth Interior Brush or vacuum As needed Note: Do not touch printer head by hand. If you touch it careless, please use ethanol to clean it.
Page 54: Update History
M09416 ® ® Thermal Direct Printer UPDATE HISTORY Date Content Editor 2/06/2008 First Draft for review...
Page 55 Händler: Drucksysteme Janz & Raschke GmbH Röntgenstr. 1 D-22335 Hamburg Tel.: +49(0)40 - 840 509 0 Fax: +49(0)40 - 840 509 29 kontakt@jrdrucksysteme.de www.jrdrucksysteme.de...
