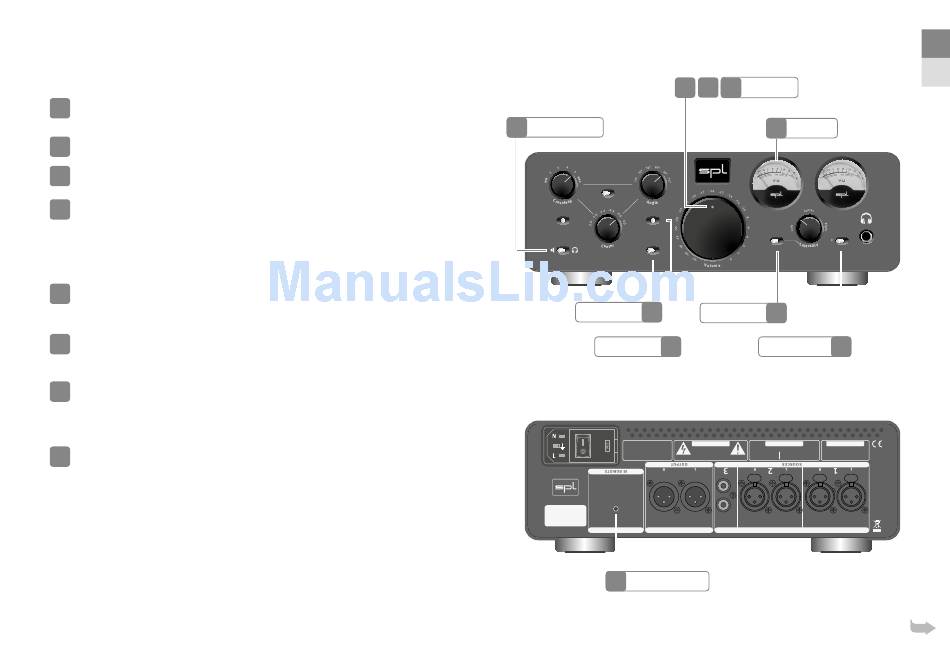

Phonitor 2 – Quickstart

Various settings

The Stereo switch selects the playback mode – mono, stereo and stereo with an
19
extremely fine balance (Laterality).
Engage the Solo switch to monitor only the left or right channel of the stereo signal.
20
To hear a chosen solo channel in both ears, set the Stereo switch to Mono.
21
With the Phase switch you can invert the phase of the left or right channel.
When setting the VU Cal switch to +6 (+12) dB the VU meter is attenuated by
22
6 (12) dB. VU 0 = +6 (+12) dBu
Learn IR remote control
The volume potentiometer of the Phonitor 2 is motorized and can be operated
by any infrared (IR) remote control. Set the Output switch to Mute while learning
23
the IR remote control commands.
The VU display now lights up red.
Press the IR REMOTE LEARN button.
24
Power LED now lights up brighter.
Point your remote control towards the VU display and push the button you wish
lower
25 to use to the volume. The Power LED lights up once per push. Press the
same button repeatedly until the Power LED lights up three times within a short
interval – programming of this button is then completed.
Point your remote control towards the VU display and push the button you wish
increase
to use to the volume. The Power LED lights up once per push. Press
26
the same button repeatedly until the Power LED lights up three times within a
short interval – programming of this button is then completed.
Learn mode ends automatically after the second button is learned.
