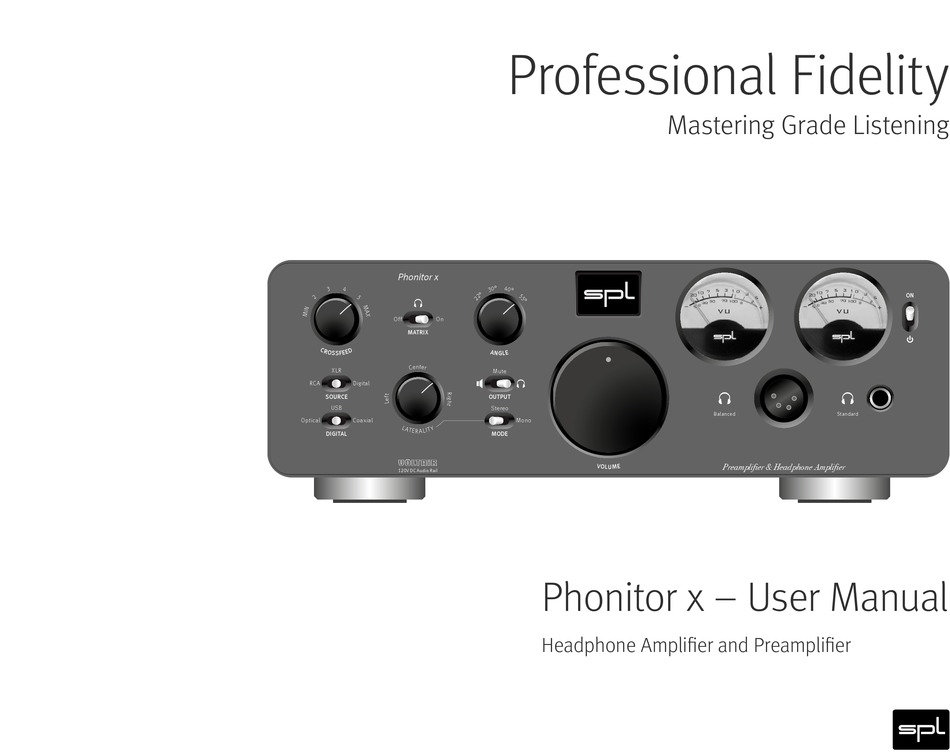

- Page 1 Professional Fidelity Mastering Grade Listening Phonitor x MATRIX Mute Digital SOURCE OUTPUT Stereo Balanced Standard Optical Coaxial Mono DIGITAL MODE VOLTAiR Preamplifier & Headphone Amplifier 120V DC Audio Rail Phonitor x – User Manual Headphone Amplifier and Preamplifier...
- Page 2 The Phonitor x is the ultimate headphone amplifier. It offers connections for headphones operated both balanced and unbalanced. With up to 3.7 W output power the Phonitor x delivers an impressive performance. The Phonitor x is not just a headphone amplifier, but also an excellent preamplifier that can drive power amplifiers or active speakers.
-
Page 3: Table Of Contents
Content MODE switch Laterality Getting started VU meters Front view AMP CTL (Amplifier Control) Rear view IR Remote control Bottom view DIP switches DIP switches Level increase of the headphone output VOLTAiR – 120V Rail Technology Attenuate the sensitivity of the VU meters Slave Thru Comparisons Standby of connected Performer s800 power amp when set to... -
Page 4: Getting Started
Getting started Read thoroughly and follow the instructions as well as the security advices of the Quickstart which is enclosed in the scope of delivery! You can also download the Quickstart here. By pressing the -Button you get to the table of contents. By pressing the -Button you get to the front view of the unit. -
Page 5: Front View
Front view Phonitor Matrix On/Off VU Meters Crossfeed Angle Standby Phonitor x MATRIX Mute Digital SOURCE OUTPUT Stereo Balanced Standard Optical Coaxial Mono DIGITAL MODE VOLTAiR Preamplifier & Headphone Amplifier 120V DC Audio Rail Laterality Volume Standard Headphone Digital Source... -
Page 6: Rear View
RCAs: Unbalanced, Tip = Hot (+) 115V AC: T 1 A L 250 V ~ 115V AC / ~230V AC, 50 Hz / 60 Hz, P max. 45 W COAX Phonitor x Serial Refer to Number OPTICAL... -
Page 7: Bottom View
Bottom view DIP switches Factory setting DIP Switches F R B... -
Page 8: Voltair - 120V Rail Technology
VOLTAiR – 120V Rail Technology VOLTAiR is the synonym for our 120V Rail Technology within the Professional Fidelity series. The audio signals are processed with an unequalled +/-60V DC, which corresponds to twice that of discrete operational amplifiers and four-times that of semiconductor operational amplifiers. VOLTAiR Technology reaches outstanding technical and sonic performances. -
Page 9: Comparisons
Operating Voltage Max. Audio Level Volt 120 V 141,4 129,1 36 V 30 V 124,2 OPA 134@30 V OPA 134@36 V SPL-OP@120 V + / - 15 Volt + / - 18 Volt + / - 60 Volt F R B... - Page 10 +/- 15 volts. Dynamic Range THD&N -105 -106 33,2 -107 -109 22,5 21,5 -111 -111,7 -113 -114,2 -115 OPA 134@30 V OPA 134@36 V SPL-OP@120 V TL 071@30 V OPA 134@36 V SPL-OP@120 V F R B...
-
Page 11: Phonitor Matrix
Phonitor Matrix Basics of stereo listening When listening to speakers sound coming from the right is not only perceived with the right ear (red line) but it is also perceived with the left ear (green line). The sensation is time delayed, lower in level and has a reduced fre- quency range (this applies to the left speaker accordingly). -
Page 12: Stereo Listening With An "Traditional" Headphone Preamplifier
Our brain determines the direction of the sound by perceiving the time delay (interaural time difference) and the level difference (interaural level difference). Stereo listening with an “traditional“ headphone preamplifier When listening to music with a traditional headphone amplifier, the right ear only perceives the right signal (red line) and the left ear only perceives the left signal (green line). -
Page 13: How Does The Phonitor Matrix Work
How does the Phonitor Matrix work? In simple terms, the Phonitor Matrix creates a speaker-like listening experience on headphones. It calculates the time and level differences with their specific frequency responses to deliver a true rendition of a speaker playback. Because time and level differences are set like real loudspeaker place- ment, the brain is able to correctly identify the direction of the sound. -
Page 14: Angle
In Detail An analog filter design creates interaural time and level differences for four different speaker placements. This analog filter design is controlled by the crossfeed and angle parameters. Angle With the ANGLE switch you adjust the interaural time difference which is related to the placement of the speakers. -
Page 15: Crossfeed
Crossfeed Crossfeed defines the interaural level difference. The six crossfeed values approximate the influences of room size, reflection and absorption characteristics. Frequency corrected time difference at max. Crossfeed and 30° Angle of Frequency corrected level difference at max. Crossfeed and 30° Angle of the right channel (red = right signal, green = left signal) the right channel (red = right signal, green = left signal) µs... -
Page 16: Setting Of Parameters Crossfeed And Angle
A vast number of factors, e.g. type of loudspeakers, room acoustics or the individual perception, influence the ste- reo-listening. This is why the Phonitor x offers six different switch positions to finely adjust the Crossfeed and to best match to your speaker playback. - Page 17 Table: Settings of Crossfeed and Angle Angle parameter Crossfeed parameter Interaural level difference Interaural time difference (µs) Speaker angle 0,24 15° 0,35 20° 0,40 20° 22° 0,47 25° 0,50 25° 0,60 30° 0,40 20° 0,49 25° 0,56 30° 30° 0,64 30°...
-
Page 18: Adjustment Of The Phonitor Matrix
Phonitor x to your room with your loudspeaker setup. MATRIX • Play some audio material you know well with the Phonitor x and go to a place where you usually listen to music through speakers. Mute Digital •... -
Page 19: Matrix On/Off
Matrix of the Phonitor x. The Phonitor Matrix is available for headphone outputs only. The Speaker Outputs (19) at the MATRIX rear of the unit are not fed by the Phonitor x matrix. Digital SOURCE Optical Coaxial... -
Page 20: Source Selection
Source selection The Phonitor x is not just a headphone amplifier. It is also a preamplifier with up to five audio sources. It features two analog stereo inputs – XLR and RCA (15). Phonitor x can be equipped with a DA converter. With that installed the available inputs are expanded by... -
Page 21: Output Selection
Phonitor x MATRIX Output selection With the OUTPUT switch (11) you send an input signal to a selected output – Loudspeakers or Mute Digital headphones. SOURCE OUTPUT Stereo In the Mute position no signal passes through to the outputs. The VU meter are illuminated in... -
Page 22: Mode Switch
MODE maintains the same loudness, because both stereo channels are each reduced by 6 dB. Laterality Phonitor x Laterality refers to the deviation of sound perception to either side of the ears. With the Laterality control (6) can compensate perceived volume differences between channels that may be due to a hearing impairment. -
Page 23: Vu Meters
The meter indicates levels from -20 dB to +5 dB. 0 dB corresponds to +4 dBu. If necessary you can lower the sensitivity by 10 dB so that the meters go up Phonitor x to +15 dB intput level (see ”DIP switches“ on page 26). -
Page 24: Amp Ctl (Amplifier Control)
AMP CTL of the Performer s800 to switch both units in and out of standby together. Use a 3.5 mm mono mini jack cable. Phonitor x The Phonitor x offers two outputs (A and B) in case you use two Performer s800 in bridge mode Serial Refer to or in a bi-wiring application. -
Page 25: Ir Remote Control
• Point your remote control towards the VU meters (2) and push the button you wish to use to Phonitor x lower the volume. The power LED lights up once per push. Press the same button repeatedly Serial Refer to until the power LED lights up three times within a short interval –... -
Page 26: Dip Switches
DIP switches With the DIP switches (20) on the bottom of the unit the following settings can be chosen: Level increase of the headphone output By using the DIP switches 1 and 2 you can increase the level of the headphone outputs to better feed power-hun- gry headphones. -
Page 27: Slave Thru
Slave Thru By using DIP switches 4 and 5 the chosen input passes directly to the outputs. DIP switch 4: ON = The chosen input passes directly to the XLR output without being affected by the volume con- trol. (Slave Thru). DIP switch 5: ON = The chosen input passes directly to the RCA output without being affected by the volume con- trol. -
Page 28: Specifications
Specifications Inputs XLR inputs • Neutrik XLR, balanced, Pin 2 = (+) • Impedance: ca. 20 kohms • CMR: -82 dBu (at 1 kHz) • Max. Input level: +32.5 dBu RCA inputs • Unbalanced • Impedance: ca. 10 kohms • Max. -
Page 29: Outputs
Outputs Balanced headphone output • Neutrik 4-pin XLR connector • Pin wiring: 1 = L (+), 2 = L (-), 3 = R (+), 4 = R (-) • Impedance: 0.36 ohms • Damping factor: 180 @ 40 ohms • Frequency range: 10 Hz to 300 kHz ( -3 dB) •... - Page 30 Standard headphone output Warning: Never connect a mono jack cable to the standard headphone output (front panel stereo jack). Make sure that the stereo jack is fully inserted, otherwise a short circuit might damage the headphone amplifier! • 6.35 mm TRS connector •...
-
Page 31: Internal Operating Voltages
Line outputs • Neutrik XLR, balanced, Pin 2 = (+) • RCA, unbalanced • Frequency range: 4 Hz to 300 kHz (-3 dB) • Crosstalk at 1 kHz: -106 dB • THD & N: 0.00085 % (at 0 dBu, 1 kHz, 100 kohms load) •... -
Page 32: Dimensions (Incl. Feet)
Dimensions (incl. feet) • (WxHxD) 10.94 x 3.94 x 12.99 in (278 x 100 x 330 mm) Weight • 9.48 lbs (4.3 kg), unit only • 11.90 lbs (5.4 kg), shipping F R B... -
Page 33: Important Notes
Technical specifications are subject to change. © 2016 SPL electronics GmbH. This document is the property of SPL and may not be copied or reproduced in any manner, in part or fully, without prior authorization by SPL. Sound Performance Lab (SPL) continuously strives to improve its products and reserves the right to modify the product described in this manual at any time without prior notice.
