Phonitor 2 – Quickstart

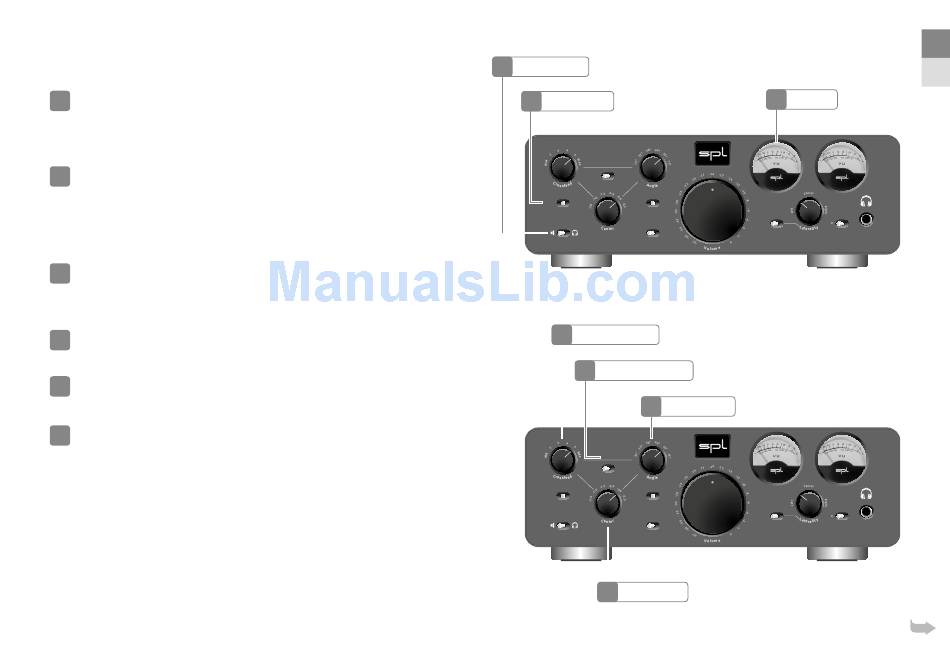

Source selection

13
Choose an analog source with the Source switch – XLR 1, XLR 2 or RCA.

Output selection

By using the Output switch you can select an output – headphone or audio
14
outputs for speakers on the rear of the Phonitor 2. In the Mute position no
signal passes through to the outputs.
If the output is muted the VU display lights up red.
Phonitor Matrix settings
By using the Matrix switch you can activate the Phonitor Matrix – with Center
15
control (All) or without (Cr/A). In Off position the Phonitor Matrix is deactivated.
The Phonitor Matrix creates a speaker-like listening experience on headphones. When listening to speakers sound
coming from one side is also perceived with the ear on the opposite side. The Phonitor Matrix calculates the time
and level differences with their specific frequency responses to deliver a true rendition of a speaker playback.
With the Crossfeed switch you adjust the level difference.
16
The size, reflections and absorption characteristics of a room influence the level with which a sound coming from a
speaker is perceived with the opposite ear. The Phonitor Matrix provides 7 positions to adjust this level.
With the Angle switch you adjust time difference.
17
The placement of the speakers determine the stereo width. In a standard stereo speaker setup the angle is typically
30°. The Matrix offers five more angles. The wider the speakers are apart the higher the time difference.
With the Center control you regulate the intensity of the center signal.
18
Is the Center control activated (Matrix switch = All) the stereo signal is converted to a Mid/Side (M/S) signal, the
mid signal is then attenuated by 0.3 up to 2.0 dB. Finally the M/S signal is reverted to a stereo signal. Mix engineers
require this function as a tool for successful mixing on headphones.
4
14
Output Selection
13
Source Selection
Phonitor 2
Matrix
Cr/A All
Off
Source Solo
XLR 1 RCA L R
XLR 2 Off
Output Ø
L R
Mute Off
Model 1280 • Made in Germany
16
Crossfeed Switch
15
Phonitor Matrix Switch
17
Phonitor 2
Matrix
Cr/A All
Off
Source Solo
XLR 1 RCA L R
XLR 2 Off
Output Ø
L R
Mute Off
Model 1280 • Made in Germany
18
Center Switch
Phonitor 2 – Quickstart
22
VU Meter
IR
Stereo VU Cal
Mono
+12
+6dB
120 V Audio Rail Preamplifier
Headphone Monitoring Amplifier
Angle Switch
IR
Stereo VU Cal
Mono +12
+6dB
120 V Audio Rail Preamplifier
Headphone Monitoring Amplifier
