Professional Fidelity
Phonitor e
XLR
RCA
Digital
Off
SOURCE
C1
C2
USB
MATRIX
Optical
Coaxial
DIGITAL
VOLTAiR
120V DC Audio Rail
Phonitor e – User Manual
Headphone Amplifier
Mastering Grade Listening
Balanced
IR
Standard
Headphone Amplifier
ON

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phonitor e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SPL Phonitor e

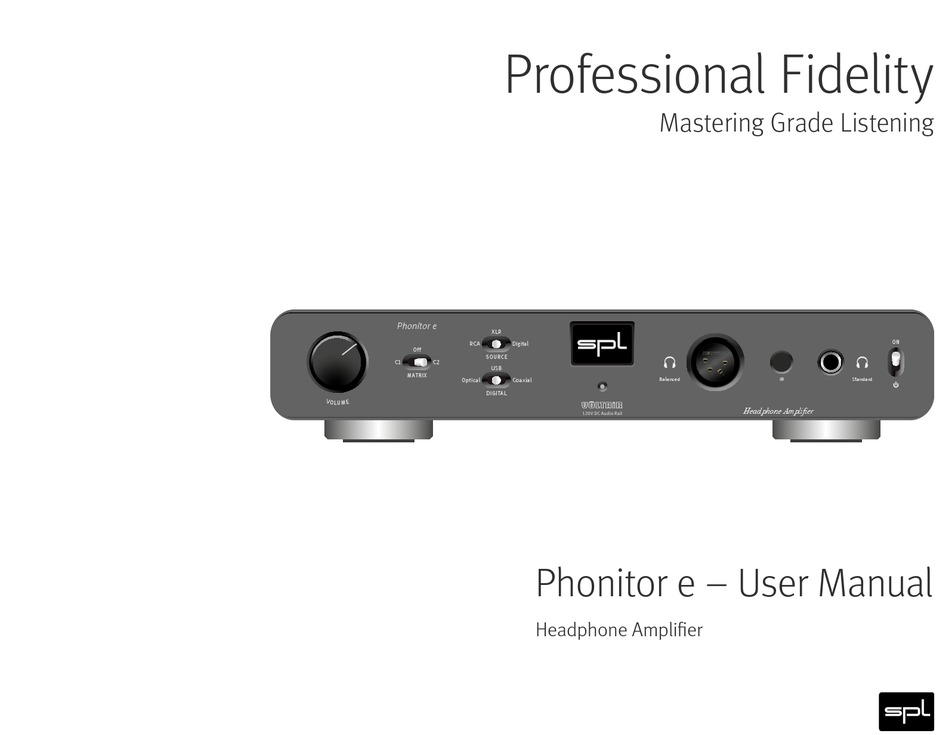

  • Page 1 Professional Fidelity Mastering Grade Listening Phonitor e Digital SOURCE MATRIX Optical Coaxial Balanced Standard DIGITAL VOLTAiR Headphone Amplifier 120V DC Audio Rail Phonitor e – User Manual Headphone Amplifier...
  • Page 2 With up to 3.7 W output power the Phonitor e delivers an impressive performance. Up to five input sources can be connected. The Phonitor e features two analog stereo inputs (XLR and RCA) and optionally three digital audio sources (USB, coaxial, optical).
  • Page 3: Table Of Contents

    Content Source selection Headphone outputs Getting started IR Remote control Front view DIP switches Rearview Level increase of the headphone output RCA input HiFi level / Studio level Bottom view Specifications DIP switches Inputs VOLTAiR – 120V Rail Technology Outputs Comparisons Internal operating voltages Phonitor Matrix...
  • Page 4: Getting Started

    Getting started Read thoroughly and follow the instructions as well as the security advices of the Quickstart which is enclosed in the scope of delivery! You can also download the Quickstart here. By pressing the -Button you get to the table of contents. By pressing the -Button you get to the front view of the unit.
  • Page 5: Front View

    Front view Balanced Headphone Matrix C1/Off/C2 Standard Headphone Volume Standby Phonitor e Digital SOURCE MATRIX Balanced Standard Optical Coaxial DIGITAL VOLTAiR Headphone Amplifier 120V DC Audio Rail Digital Source Power LED IR Receiver Analog Source F R B...
  • Page 6: Rearview

    Digital Audio Inputs Mains Switch optional ~115 V AC/~230 V AC, COAX 50 Hz/60 Hz, P max. 30 W Phonitor e Fuses: 230 V: T 500 mA L 250V OPTICAL 115 V: T 1 A L 250V Voltage Selection: Serial 1.
  • Page 7: Bottom View

    Bottom view DIP Switches DIP switches Factory setting. F R B...
  • Page 8: Voltair - 120V Rail Technology

    VOLTAiR – 120V Rail Technology VOLTAiR is the synonym for our 120V Rail Technology within the Professional Fidelity series. The audio signals are processed with an unequalled +/-60V DC, which corresponds to twice that of discrete operational amplifiers and four-times that of semiconductor operational amplifiers. VOLTAiR Technology reaches outstanding technical and sonic performances.
  • Page 9: Comparisons

    Operating Voltage Max. Audio Level Volt 120 V 141,4 129,1 36 V 30 V 124,2 OPA 134@30 V OPA 134@36 V SPL-OP@120 V + / - 15 Volt + / - 18 Volt + / - 60 Volt F R B...
  • Page 10 +/- 15 volts. Dynamic Range THD&N -105 -106 33,2 -107 -109 22,5 21,5 -111 -111,7 -113 -114,2 -115 OPA 134@30 V OPA 134@36 V SPL-OP@120 V TL 071@30 V OPA 134@36 V SPL-OP@120 V F R B...
  • Page 11: Phonitor Matrix

    Phonitor Matrix Basics of stereo listening When listening to speakers sound coming from the right is not only perceived with the right ear (red line) but it is also perceived with the left ear (green line). The sensation is time delayed, lower in level and has a reduced fre- quency range (this applies to the left speaker accordingly).
  • Page 12: Stereo Listening With An "Traditional" Headphone Preamplifier

    Our brain determines the direction of the sound by perceiving the time delay (interaural time difference) and the level difference (interaural level difference). Stereo listening with an “traditional“ headphone preamplifier When listening to music with a traditional headphone amplifier, the right ear only perceives the right signal (red line) and the left ear only perceives the left signal (green line).
  • Page 13: How Does The Phonitor Matrix Work

    How does the Phonitor Matrix work? In simple terms, the Phonitor Matrix creates a speaker-like listening experience on headphones. It calculates the time and level differences with their specific frequency responses to deliver a true rendition of a speaker playback. Because time and level differences are set like real loudspeaker place- ment, the brain is able to correctly identify the direction of the sound.
  • Page 14: Angle

    In Detail The Phonitor e makes use of analog filter networks to create the interaural level and time differences. The time difference relates to the standard stereo speaker placement of 30°. The Phonitor e offers two crossfeed settings to create the interaural level difference.
  • Page 15: Crossfeed

    Crossfeed Crossfeed defines the interaural level difference. The two crossfeed values approximate the influences of room size, reflection and absorption characteristics. Frequency corrected level difference at Crossfeed C1 and 30° Angle of the Frequency corrected time difference at Crossfeed C1 and 30° Angle of the right channel (red = right signal, green = left signal) right channel (red = right signal, green = left signal) µs...
  • Page 16: Phonitor Matrix Presets

    Phonitor Matrix presets Phonitor e The Phonitor e offers two presets. The Speaker Angle is fixed to 30°. For the Crossfeed there are two settings: C1 and C2. MATRIX Optical The value C1 has less crossfeed and therefore a lower time difference than C2.
  • Page 17: Source Selection

    Up to five audio sources can be connected to the Phonitor e. It features two analog stereo inputs – XLR and RCA (12). Phonitor e can be equipped with a DA converter. With that installed the available inputs are expanded by USB, coaxial and optical digital stereo inputs (13).
  • Page 18: Headphone Outputs

    Headphone outputs standard headphone output (2) takes priority over the balanced headphone output (3). There is no signal at the balanced headphone output if a headphone is already plugged into the standard headphone output. Warning: Never connect a mono jack cable to the standard headphone output (front panel stereo jack). Make sure that the stereo jack is fully inserted, otherwise a short circuit might damage the headphone amplifier! F R B...
  • Page 19: Ir Remote Control

    PGM IR VOLUME button (14) on the rear of the unit. The Power LED now lights up ~115 V AC/~230 V AC, 50 Hz/60 Hz, P max. 30 W Phonitor e Fuses: brighter. 230 V: T 500 mA L 250V...
  • Page 20: Dip Switches

    DIP switches With the DIP switches (15) on the bottom of the unit the following settings can be chosen: Level increase of the headphone output By using the DIP switche 1 you can increase the level of the headphone outputs to better feed power-hungry headphones.
  • Page 21: Specifications

    Specifications Inputs XLR inputs • Neutrik XLR, balanced, Pin 2 = (+) • Impedance: ca. 20 kohms • CMR: -82 dBu (at 1 kHz) • Max. Input level: +32.5 dBu RCA inputs • Unbalanced • Impedance: ca. 10 kohms • Max.
  • Page 22: Outputs

    Outputs Balanced headphone output • Neutrik 4-pin XLR connector • Pin wiring: 1 = L (+), 2 = L (-), 3 = R (+), 4 = R (-) • Impedance: 0.36 ohms • Damping factor: 180 @ 40 ohms • Frequency range: 10 Hz to 300 kHz ( -3 dB) •...
  • Page 23 Standard headphone output Warning: Never connect a mono jack cable to the standard headphone output (front panel stereo jack). Make sure that the stereo jack is fully inserted, otherwise a short circuit might damage the headphone amplifier! • 6.35 mm TRS connector •...
  • Page 24: Internal Operating Voltages

    Internal operating voltages • Analog: +/- 60 V • Digital: + 5 V and + 3.3 V (optional) Power supply • Mains voltage (switchable): 230 V AC / 50 Hz or 115 V AC / 60 Hz • Fuses: 230 V: T 500 mA; 115 V: T 1 A •...
  • Page 25: Important Notes

    Technical specifications are subject to change. © 2016 SPL electronics GmbH. This document is the property of SPL and may not be copied or reproduced in any manner, in part or fully, without prior authorization by SPL. Sound Performance Lab (SPL) continuously strives to improve its products and reserves the right to modify the product described in this manual at any time without prior notice.
