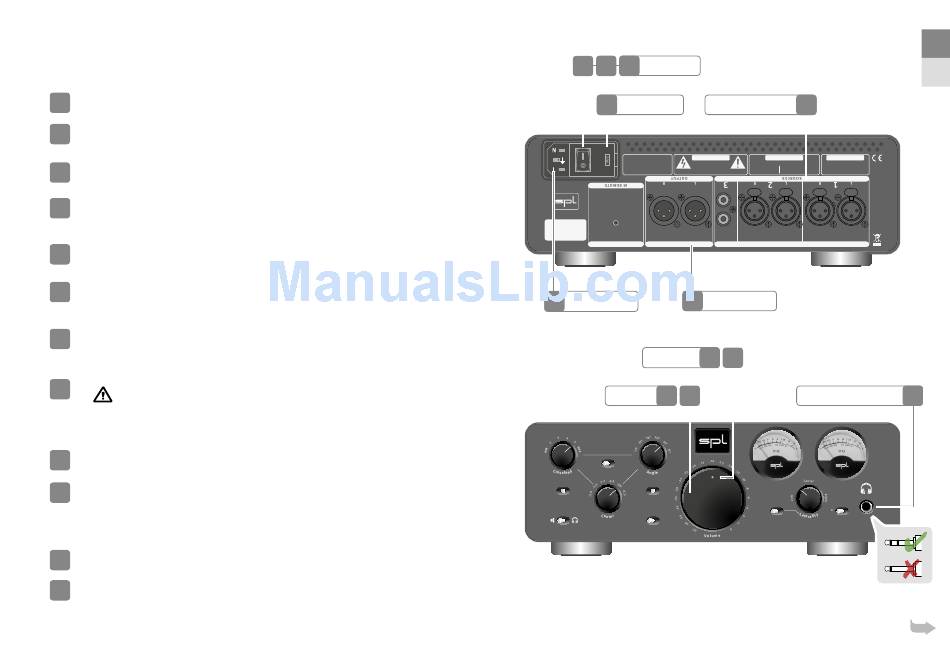

Phonitor 2 – Quickstart
Start up
1
Read the security advices on page 9!
Make sure that the selected mains voltage of the Phonitor 2 is according to the
2
mains voltage of your region.
Make sure that the mains switch on the rear of the Phonitor 2 is set to Off
3
(Off = O / On = I).
4 Connect the supplied power cord to the Phonitor 2 and an appropriate mains
socket outlet.
If the supplied power cord does not match your mains socket outlet, please contact your dealer.
5
Turn off all devices you wish to connect to the Phonitor 2.
Connect the outputs of your analog sources (e.g. CD Player) to the analog inputs
6
of the Phonitor 2. Please use appropriate audio cables (XLR, RCA).
Audio cables not included in the scope of delivery.
Connect audio XLR cables between the Phonitor 2 and a following amplifier or a
7
balanced headphone.
Audio cables not included in the scope of delivery.
Connect your headphone to the headphone output of the Phonitor 2.
8
Warning: Never connect a mono jack cable to the front panel stereo jack. Make sure that the stereo jack is
fully inserted, otherwise a short circuit might damage the headphone amplifier.
Power up
9
Turn down the volume of the Phonitor 2.
Switch on mains switch on the back of the Phonitor 2 (On = I).
10
Power LED is dimly lit.

Power down

11
Turn down the volume of the Phonitor 2.
Switch off mains switch on the rear of the Phonitor 2 (Off = O).
12
Power LED no longer lights up.
2
3 10 12
Mains Switch
2
Mains Voltage Analog Audio Inputs
Voltage Selection:
C AU T I O N
1. Remove Fuse Holder
RISK OF ELECTRIC SHOCK
2. Flip Over 3. Reinstall
D O N O T O P E N
Fuses: 115V AC: T 1 A L 250 V
230V AC: T 500 mA L 250 V AVIS: RISQUE DE CHOC ÉLECTRIQUE • NE PAS OUVRIR
~ 115V AC / ~230V AC
50 Hz / 60 Hz, P max. 35 W
Learning Volume Up/Down:
1. Press LEARN button below
2. Point your remote at VUs
and press a button for
VOLUME DOWN (LEDs flash 1x)
Phonitor 2
3. Repeat until LEDs flash 3x
LEARN
PGM
Serial
4. Press a button for This output can also drive balanced headphones
Number
3
VOLUME UP (LEDs flash 1x) (Gender changer may be required).
R L
5. Repeat until LEDs flash 3x
IR REMOTE OUTPUT
Made in Germany
7
4
Mains Connector Audio Output
10 12
Power LED
9 11
Volume
Phonitor 2
Matrix
Cr/A All
Off
Source Solo
XLR 1 RCA L R
XLR 2 Off
Output Ø
L R
Mute Off
Model 1280 • Made in Germany
Phonitor 2 – Quickstart
6
D IP S W IT C H W IR IN G
ON BOTTOM SIDE: XLRs: balanced, Pin 2 = Hot (+)
For unbalanced operation
1 ON: Output +12dB 3 ON: RCA -10dBV to +4dBu
bridge Pin 3 to GND.
2 ON: Output + 6dB 4 ON: Sources 1:1 to Output
RCAs: Unbalanced, Tip = Hot (+)
L
R
2 1
R L R L
SOURCES
8
Headphone Connection
IR
Stereo VU Cal
Mono +12
+6dB
120 V Audio Rail Preamplifier
Headphone Monitoring Amplifier
3
