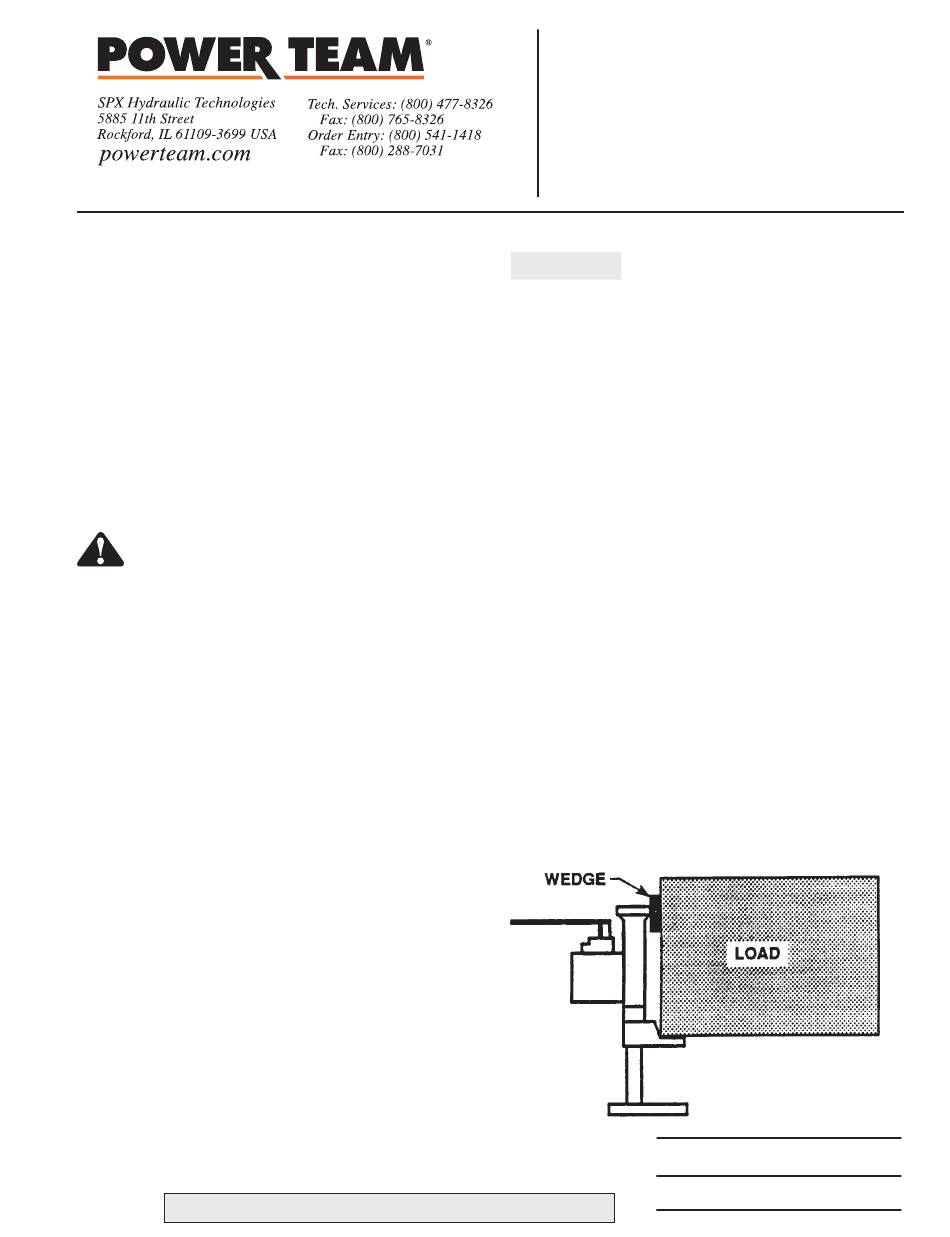

SPX Power Team J58T Operating Instructions Manual
SPX Power Team J58T Operating Instructions Manual

SPX Power Team J58T Operating Instructions Manual

Hydraulic toe jack, max. capacity: 5/10 ton
Hide thumbs Also See for Power Team J58T:

Advertisement

Quick Links

Read and carefully follow the warnings and operating instructions before using this jack. Most problems with new
NOTE: Inspect the pump upon arrival. The carrier, not the manufacturer, is responsible for any damage
equipment are caused by improper operation or setup.
resulting form shipment.
WARNING
: To help prevent personal injury or damage to equipment,
q q Do not exceed the maximum load capacity of the jack.
q q Do not add additional load to a lifted load.
q q Do not use in unstable or hazardous positions.
q q Unit must be used on flat surfaces able to carry the load.
q q Keep clear of lifted loads.
q q The load must be stable during lifting. An unstable load may cause the jack or load to slip.
q q Do not use the jack(s) if damaged, altered, or in poor condition.
q q Do not lift people or loads with people on them.
q q This hydraulic jack is for professional use only and should be used only by persons trained in its use.
q q Do not lift at the end of the toe. Fully engage the load with the toe.
q q Use only recommended hydraulic fluid in this unit.
q q Do NOT, under any circumstances, tamper with the adjustment of the jack's internal relief valve screw. To
do so may cause the jack to fail.
q q When lifting by the toe, wedge the head of the jack
on the load to avoid bending the column.
Refer to illustration at left.
q q Read operating instructions and
A.N.S.I. B30.1 safety code for jacks.
q q The owner of the jack must ensure that all
safety-related decals are maintained and
replaced as they become hard to read.
q q This guide cannot cover every situation,
so always do the job with safety first.
© SPX Hydraulic Technologies
Note: Shaded areas reflect last revision(s) made to this form.
HYDRAULIC
TOE JACK
Model J58T Max. Capacity: 5 Ton
Model J109T Max. Capacity: 10 Ton
SAFETY PRECAUTIONS
Parts List and
Operating Instructions for:
(Model A)
Sheet No.
Rev. 4
Form No. 102620
J58T
J109T
1 of 3
Date: 13 June 2008
