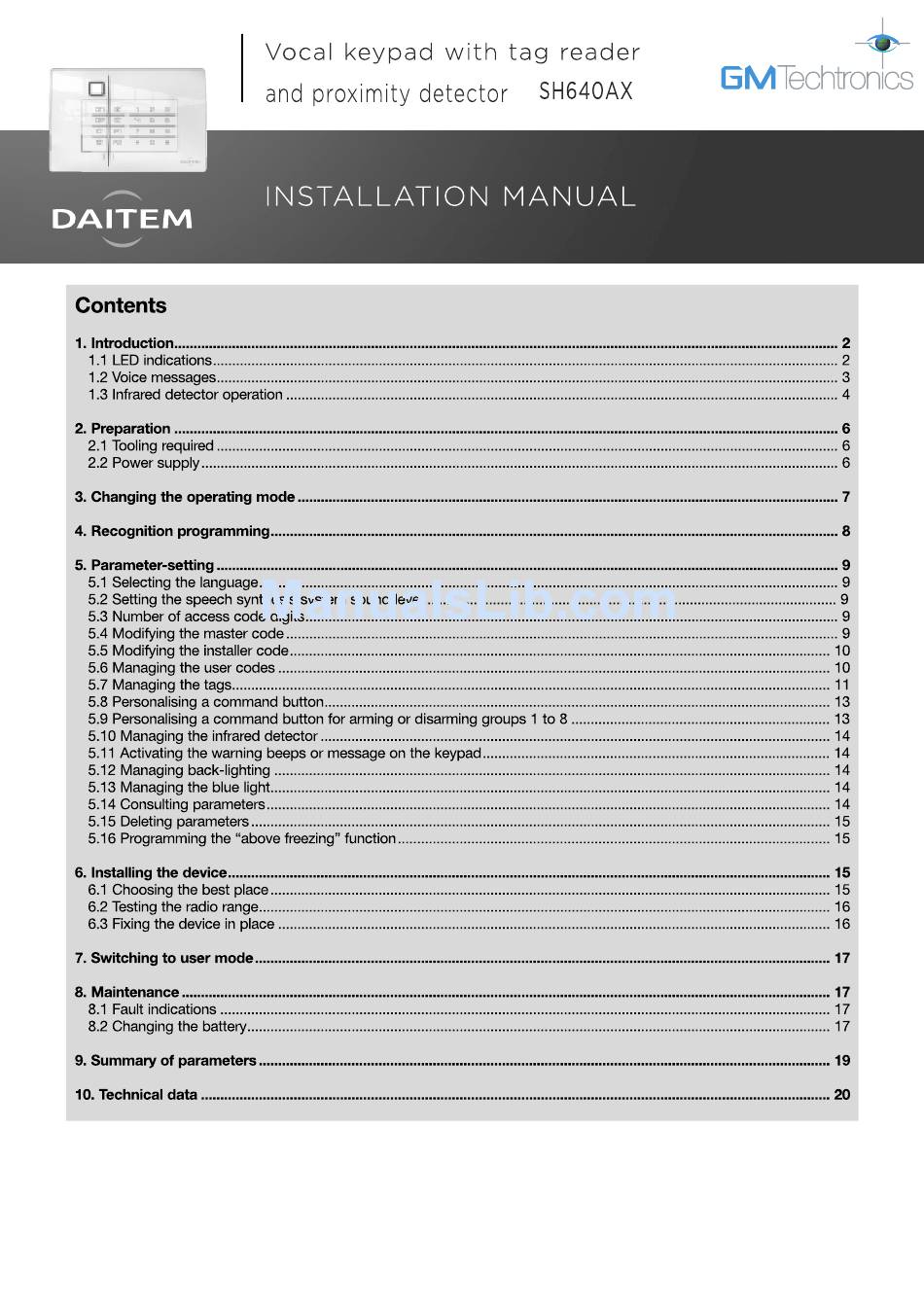

DAITEM SH640AX Installation Instruction

Vocal keypad with tag reader and proximity detector
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SH640AX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAITEM SH640AX

Summary of Contents for DAITEM SH640AX

  • Page 2: Led Indications

    • Operational differences in relation to former ranges are described in the compatibility booklet available in the Daitem Installers section at www.daitem.co.uk. The vocal keypad with tag reader and proximity detector can be used to operate an intrusion protection system from outside or inside the home.

  • Page 3: Voice Messages

    1.2 Voice messages IMPORTANT: only the commands sent from the vocal keypad result in the following messages. Orders issued by another remote control unit do not lead to a keypad response. The keypad issues the following voice messages: Following a command Voice message Disarm “bip, off”...
  • Page 4 1.3 Infrared detector operation The vocal keypad has an infrared detector enabling it to detect an approaching person. It has 2 distinct detection zones: • The distant detection zone • The close detection zone Top view Top view 0.5 m 1.2 m 0.4 m Side view...
  • Page 5 Combined triggering A combined detector will trigger immediately if it is the first detector to be set off. It will observe a time delay before triggering if another time-delayed detector detects something first. Example: • The user enters his home: •...

  • Page 6: Tooling Required

    6. Connect the lithium power pack to its support. stick it to the guarantee certificate inside the user manual supplied with the control panel. If you are adding to an existing system, use the guarantee certificate supplied with this product. SH640AX A1235A04823 SH640AX Coller sur certif A1235A04823...

  • Page 7: Changing The Operating Mode

    7. Push the lithium power pack lock downwards. The keypad will issue a long beep and the LED will light up RED for 2 s. “bip” 3. Changing the operating mode IMPORTANT • When the keypad is powered it is in user mode. •...

  • Page 8: Recognition Programming

    4. Recognition programming IMPORTANT: the product does not need to be placed next to the control panel for recognition programming. In fact, it is advisable to move it at least 2 metres away from the control panel. Recognition programming allows the control panel to recognise the keypad and infrared detector. 1.

  • Page 9: Parameter Setting

    5. Parameter-setting IMPORTANT • Before setting any parameters, the keypad must first be in installation mode (see chapter 3. Changing the operating mode). • A long beep is issued and the LED lights up green for 2 s to indicate correct programming. If an error is made, the red LED flashes 3 times and the keypad issues 3 short beeps.

  • Page 10: Managing User Codes

    5.5 Modifying the installer code The Installer code is for use by the installer. It allows access to all keypad installation, programming and maintenance operations in INSTALLATION mode. To ensure system confidentiality, the installer code must be changed. To do this, enter: new code new code old code...
  • Page 11 5.6.3 Restricted access to both a command key and a group Example: to restrict user code 1 (1213) to Group 1 Arm/Disarm and the Partial 1 key, enter: In this case, user code 1 can only disarm or arm Group 1 “Partial one”...
  • Page 12 5.7.3 Disabling and enabling a tag Tags can be disabled or enabled in the 3 operating modes. A registered tag is automatically enabled. To disable or enable a tag, enter: tag n° from 0: disabled master code 01 to 24 1: enabled Example: to disable tag 1, enter: 5.7.4 Restricted access to commands...
  • Page 13 5.8 Personalising a command button The 8 keypad command keys can be personalised to adapt keypad commands to user needs (see table below). Furthermore, this personalisation allows the user to choose between direct or code-based access to keypad commands. To personalise a key, enter: IMPORTANT •...
  • Page 14 5.10 Managing the infrared detector To modify the alarm level or deactivate the infrared detector, enter: IMPORTANT: if the infrared detector is disabled, this does not disable proximity detection and keypad back-lighting 0: infrared detector disabled (factory) (see chapter 5.13 Managing back-lighting). 1: intrusion 2: prealarm 3: deterrence...

  • Page 15: Installing The Device

    5.15 Deleting parameters IMPORTANT: parameters can only be deleted if the keypad is in installation mode. To delete a parameter, enter: parameter number To delete all the access codes, enter: To return to the factory setting, enter: 5.16 Programming the “above freezing” function The keypad can be used to detect the “above-freezing”...
  • Page 16 6.2 Testing the radio range Before fixing the keypad in place, position it in the desired location NOTE: the keypad will have to be recognised and test the radio range. by the Control panel first , see section 4.0. If it is good, fix the keypad in place, otherwise move it. 1.

  • Page 17: Switching To User Mode

    7. Switching to user mode Once the radio range test has been performed: 1. Switch the keypad to user mode by entering: “bip, off” “bip, off” installer code IMPORTANT: putting the keypad in user mode automatically puts the control panel in user mode. Consequently, the keypad should only be switched to user mode when all the parameters have been set on the different system products (keypads, detectors, etc.).
  • Page 18 • The lithium battery pack must be replaced with the same type of pack with the same technical characteristics, i.e. 2 x (3 V – 2.4 Ah). • We advise you to use the DAITEM RXU02X battery available in the catalogue in order to guarantee individual safety and equipment reliability.

  • Page 19: Summary Of Parameters

    9. Summary of parameters Factory Parameter description Parameter-setting sequence Possible values Page parameters Number of access code * 69 * ? ** 4 digits Code with 4, 5 or 6 digits digits Master code MMMM * 50 * ? ? ? ? * ? ? ? ? ** 0 0 0 0 Code with 4, 5 or 6 digits programming...

  • Page 20: Technical Data

    The user must not attempt to access the device’s internal parts, except areas described in this manual. If the user does access these parts, the product guarantee will be considered null and void and DAITEM shall not be held responsible for any problems.
