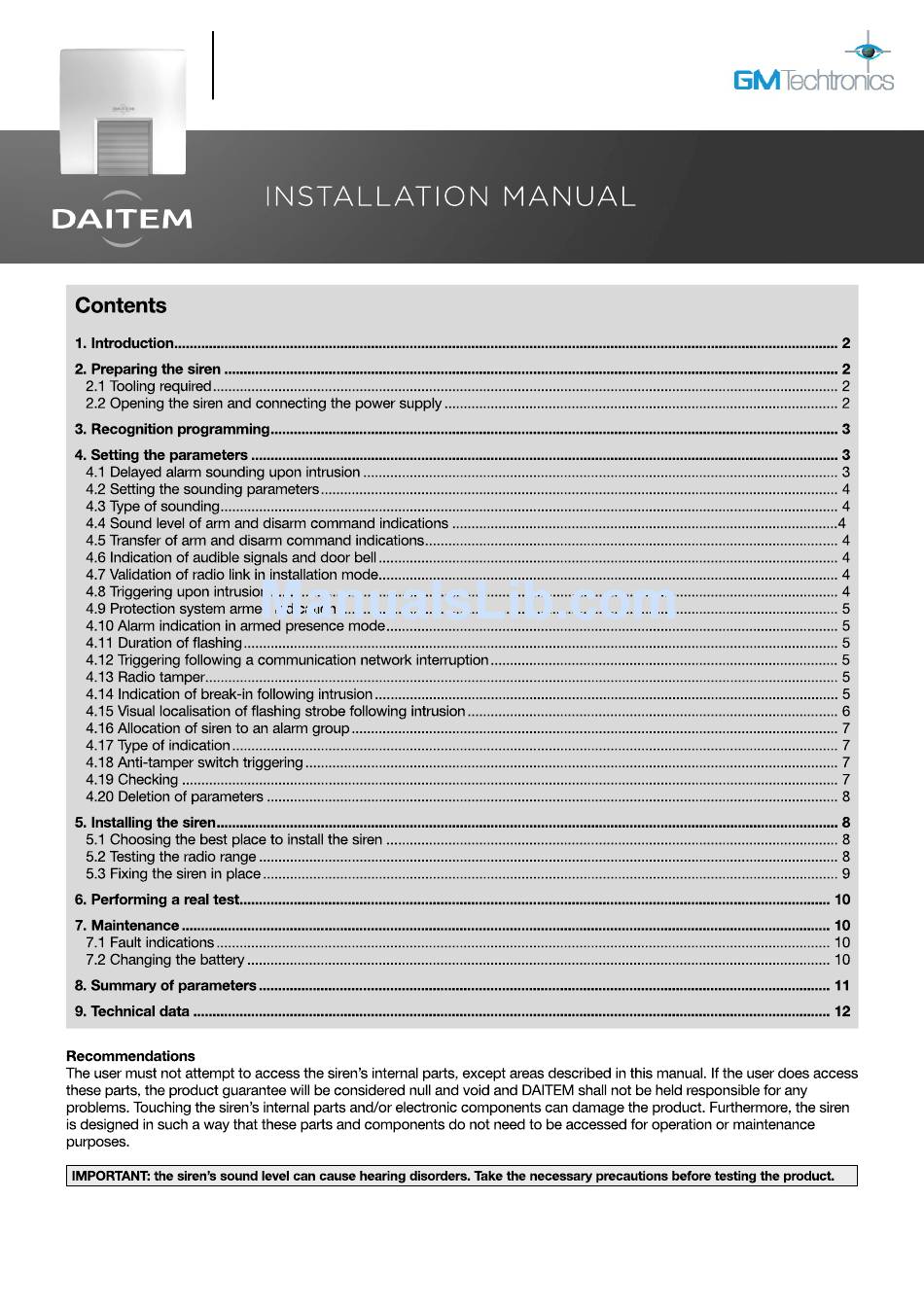

- Page 1 External Siren & Strobe SH423AX...
-
Page 2: Preparing The Siren
• The operating differences with former ranges are described in the compatibility booklet available in the Daitem installers section at www.daitem.co.uk. In addition to the protection provided by the control panel with built-in siren and keypad, the external siren with flashing strobe makes it possible to: •... -
Page 3: Recognition Programming
4. Setting the parameters IMPORTANT: all parameter-setting must be done using TwinLoad software available in the Daitem installers section at ® www.daitem.co.uk. The control panel and siren must be in installation mode to set the siren’s parameters. If they are not, enter:... -
Page 4: Triggering Upon Intrusion
4.2 Setting the sounding parameters 4.2.1 Duration of alarm sounding 4.2.2 Level of sounding To modify the duration of sounding, enter: To modify the level of sounding, enter: siren n° 0: normal siren n° from 20 to 180 s 1: quiet Factory setting: 90 s Factory setting: 0 4.3 Type of sounding... - Page 5 4.9 Protection system armed indication When this function is enabled, the siren issues a series of 4 beeps to indicate that the system is armed. This function is not activated by default. siren n° 0: disabled 1: quiet sounding (“bip, bip, bip, bip”) Factory setting: 0 4.10 Alarm indication in armed presence mode The siren is factory-set to sound loudly for 15 s in case of intrusion.
- Page 6 4.15 Visual localisation of flashing strobe following break-in The “visual localisation” function can be triggered following a “break-in indication” (if this function has been enabled) or once the “flashing duration” has run its course. By extending the effect of the flashing strobe (on for 6 seconds, off for 16 seconds), the “visual localisation”...
-
Page 7: Anti-Tamper Switch Triggering
4.16 Allocation of siren to alarm group To allocate the siren to one or several alarm system groups, enter: siren n° groups from 1 to 8 depending on the type of control panel Factory setting: all groups Example, to allocate siren n° 1 to Group 2 and Group 3, enter: 4.17 Type of indication 4.17.1 For warnings To modify the type of warning indication, enter:... -
Page 8: Deletion Of Parameters
4.20 Deletion of parameters • To delete a parameter, enter: siren n° parameter n° • To delete all parameters, enter: siren n° 5. Installing the siren 5.1 Choosing the best place to install the siren IMPORTANT: make sure there is a distance of at least 2 metres between each product, except between two detectors. The siren should preferably be placed: •... -
Page 9: Fixing The Siren In Place
5.3 Fixing the siren in place The siren can be fixed in two different ways: Pozidriv 2 1. • Remove the tamper mechanism washer located at • Remove the two fixing washers located at the back of the back of the base. the base. -
Page 10: Maintenance
• The lithium battery pack must be replaced by the same type of pack with the same technical characteristics, i.e. 2 x (3.6 V – 13 Ah). • We advise you to use the DAITEM BatLi22 pack available in the catalogue in order to guarantee individual safety and equipment reliability. -
Page 11: Summary Of Parameters
8. Summary of parameters Parameter description Parameter-setting sequence Factory Possible values Page parameter Delayed sounding ** 4 * siren n° * 3 * ?? ** 0: immediate from 0 to 60 s upon intrusion 0: immediate Sounding duration ** 4 * siren n° * 4 * ??? ** 90 s (60 s Spain) from 20 s to 180 s Flashing duration... -
Page 12: Technical Data
Research & Development Manager Non-binding document, subject to modification without notice. To obtain advice when installing your system or before returning equipment, please contact the Daitem technical support team (see telephone number at the back of the alarm system installation manual)
